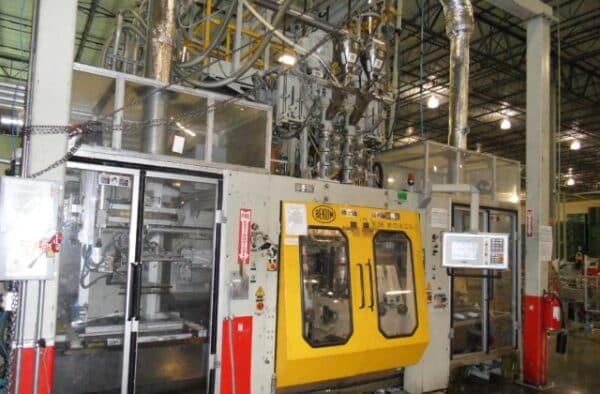

Bekum - BM 506 DL CO-EX, Multi-Layer

Item Number
2850
Brand
Bekum
Model
BM 506 DL CO-EX, Multi-Layer
Year
2004
Specification Comments

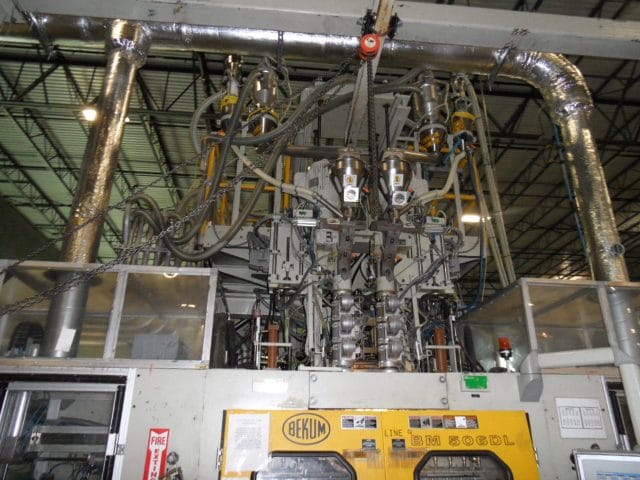

• 5 parison head on 100mm centers

• 6 layer CO-EX head

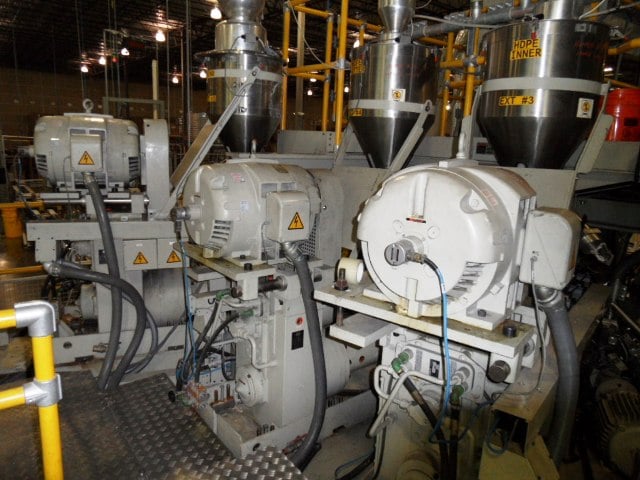

• (1) model S90 N REG, 90 mm extruder (Regrind Layer)

• (1) model S80 N DA, 80 mm extruder (Outer Layer)

• (1) model S80 N DI, 80 mm extruder (Inner Layer)

• (1) 30 mm extruder (Barrier layer)

• (2) 20 mm extruders (Adhesive layers)

• Tandem Blow allows for (2) bottles to be blown neck to neck using a top & bottom blow station. (20) bottles are manufactured at a time. Bottle logs are trimmed outside of the machine.

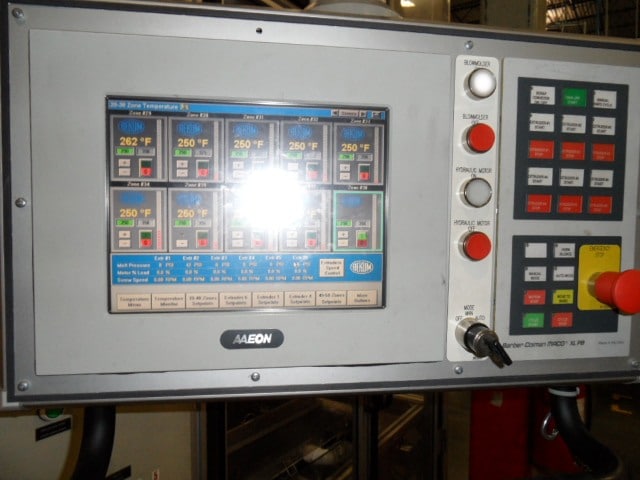

• PLC with parison programming

• Bottle take-out device

• 460 V/3 ph/60 hertz

• Full Electronic Upgrade in 2011 at a cost of $100,000.00
