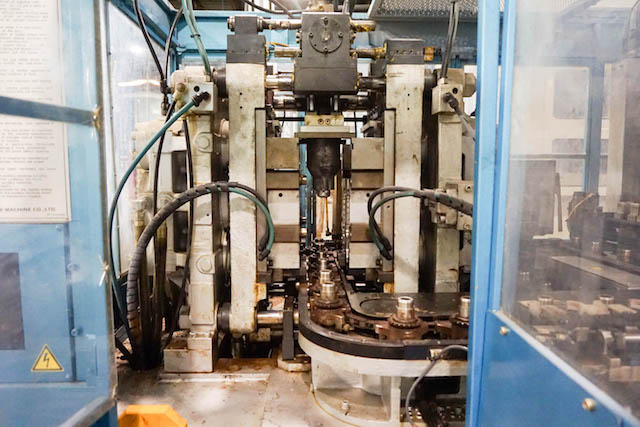

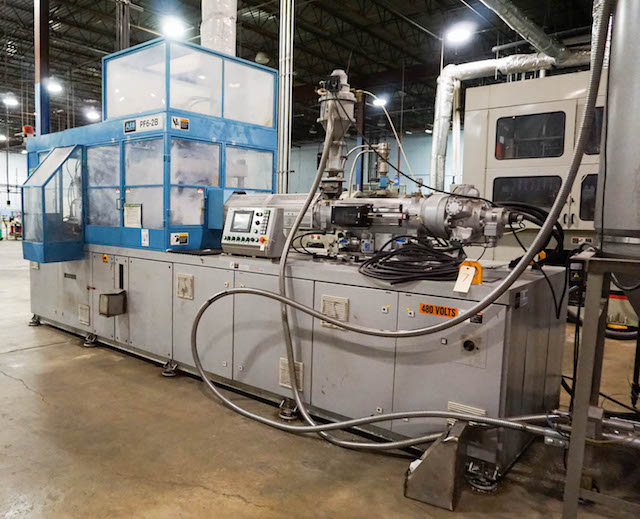

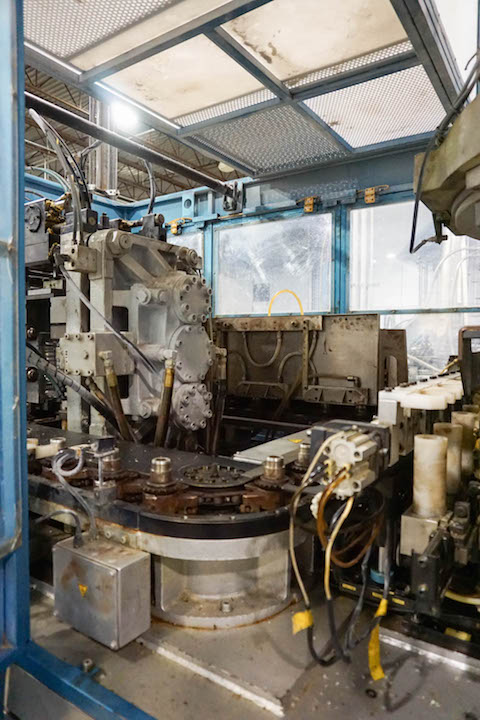

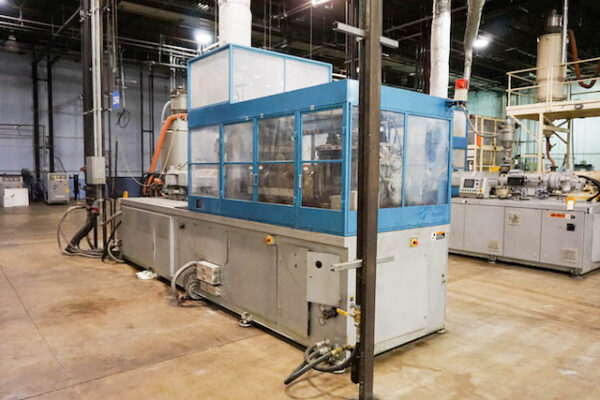

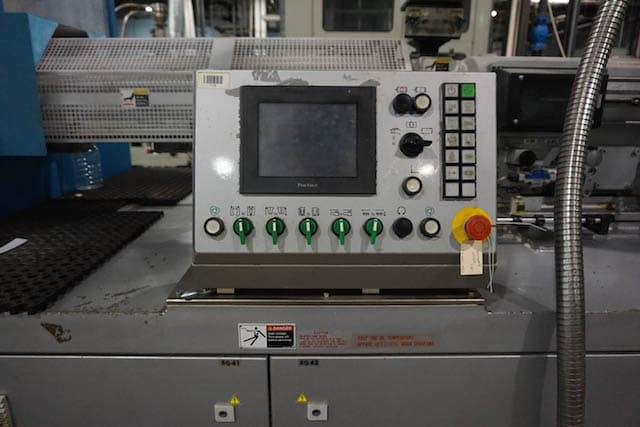

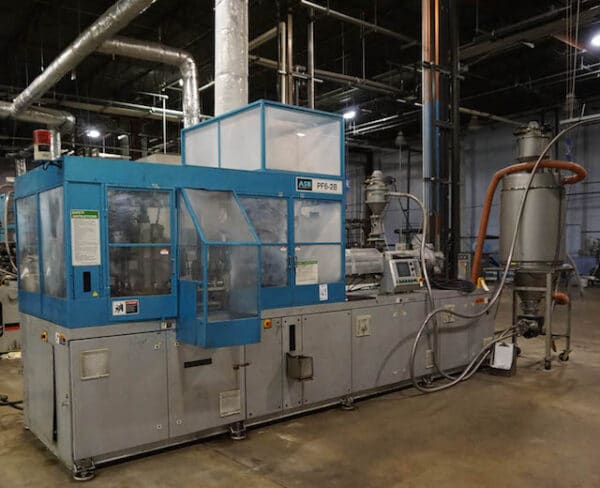

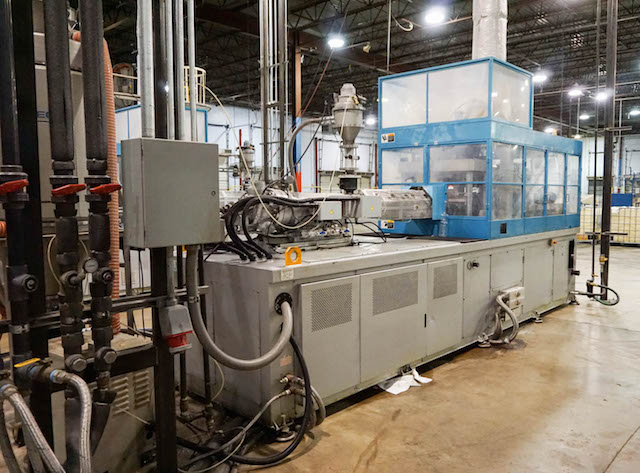

Nissei ASB - PF6-2B Injection Stretch Blow Molder

Item Number
4050
Brand
Nissei ASB
Model
PF6-2B Injection Stretch Blow Molder
Year
2009
Specification Comments

- Version 4 machine
- Theoretical injection capacity- 515 cubic c.m.
- Screw diameter- 63 mm
- Cavity number (preform)- 6
- Cavity number (bottle)- 2
- Maximum product capacity- 3 liters
- Maximum neck finish diameter- 45 mm
- Maximum inlet outer diameter- 42 mm
- Maximum support ring diameter- 48 mm
- Maximum product outer diameter- 120 mm
- Maximum product height- 350 mm
- Maximum product weight- 73 grams
- Production capacity- approximately 1000 to 2000 bottles per hour (dependent on bottle design)

Following Molds Available:
- Preform and blow molds to produce a 12 ounce, 16 ounce, and 48 ounce vegetable oil bottles
