YE-i Machinery - YDR-1002 Pelletizing Line (Reclaim System)

Item Number
YE-i Machinery

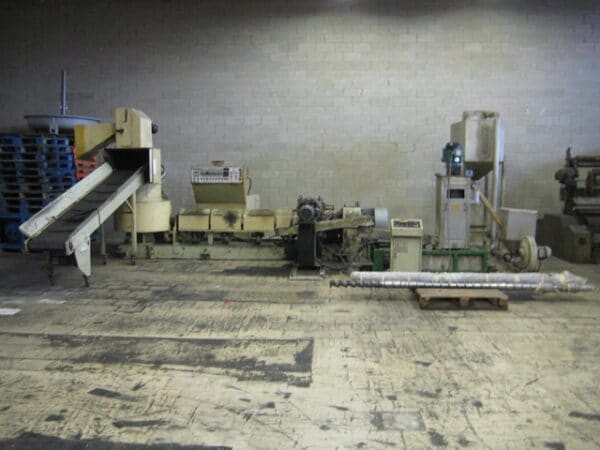

YDR-1002 Pelletizing Line (Reclaim System)
Specification Comments
800mm dia. shredder/cutter driven by 75 HP motor with 15-stationary knives and 4-rotating knives

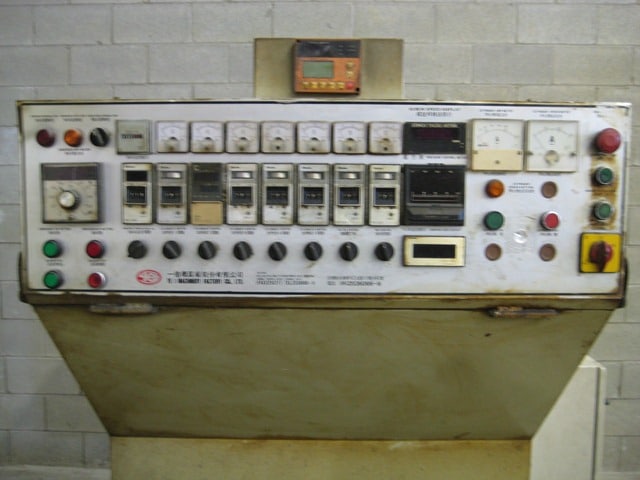

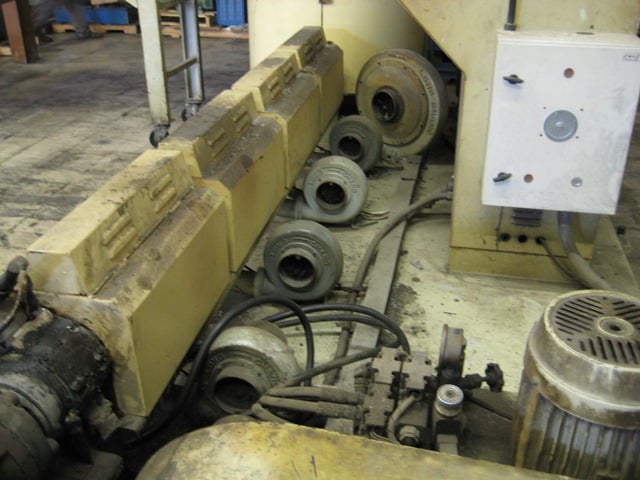

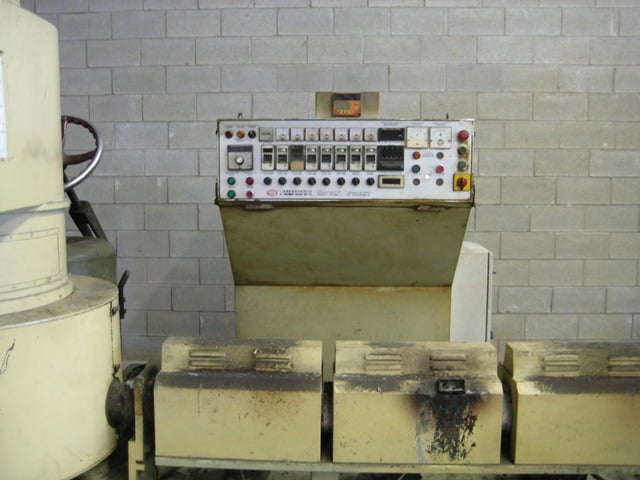

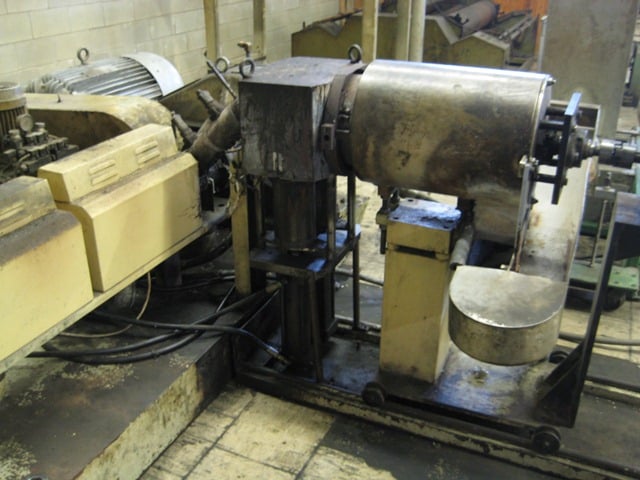

100mm single screw extruder, 30:1 L/D ratio, vented barrel, electrically heated, air cooled, driven by 100 HP motor and drive, 0-150 RPM screw speed range, over barrel mounted control panel, screen changer, die face cutter driven by 3 HP motor
vibratory water cooling unit aprox 2270mm x 640mm x 521mm with 3 HP water recirculation pump
2 HP centrifugal pellet dryer, blower take off to gaylord filling unit
Throughput rates estimated 360KG/hr HDPE, 380KG/hr LDPE
