Coperion - ZSK58 MC - Compounding Line
- Item Number
- 4062
- Brand
- Coperion
- Model
- ZSK58 MC - Compounding Line
- Year
- 1997
- Single or Twin Screw
- Twin Screw
- Specification Comments

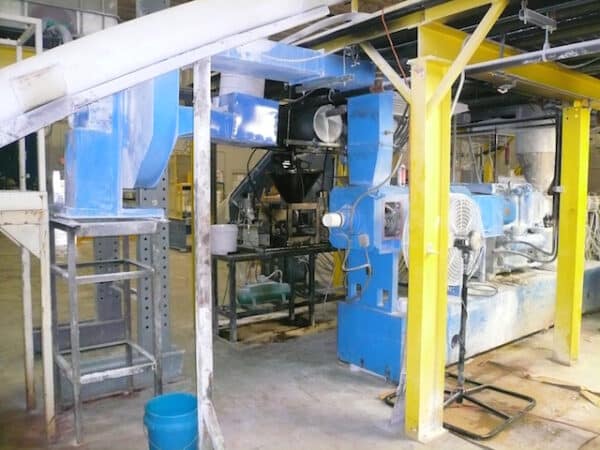

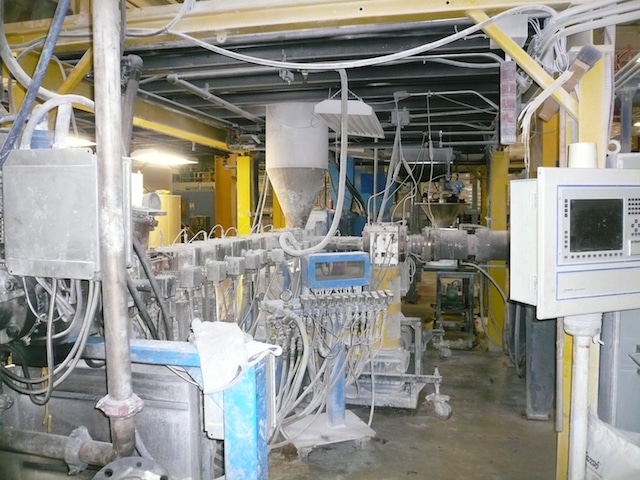

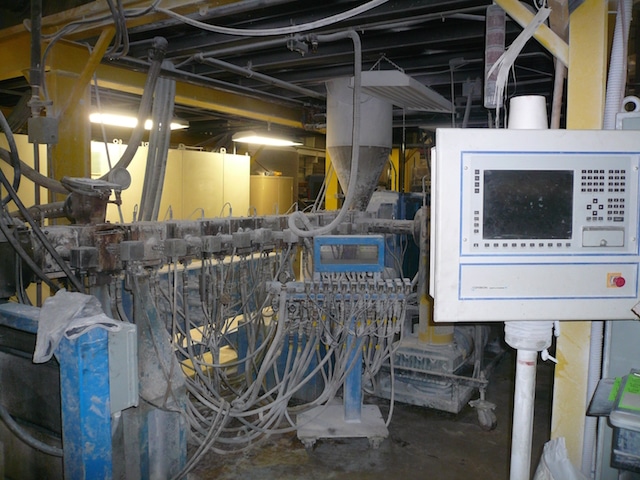

- 1997 Coperion Model ZSK58 MC Twin Screw Extruder
• (14) barrel sections including main feed, with (5) open barrel sections (2) sections with top feeds, (1) section with a side feed and (2) liquid injection ports, Not currently mounted but with (2) side feeders and (2) liquid injectors
• 400 HP DC motor and panel mounted Siemens SCR drive controller through Flender gearbox SN: 195 509 104 -027 -1, rated 314 kW (420 HP), input RPM 1654, output RPM 1200

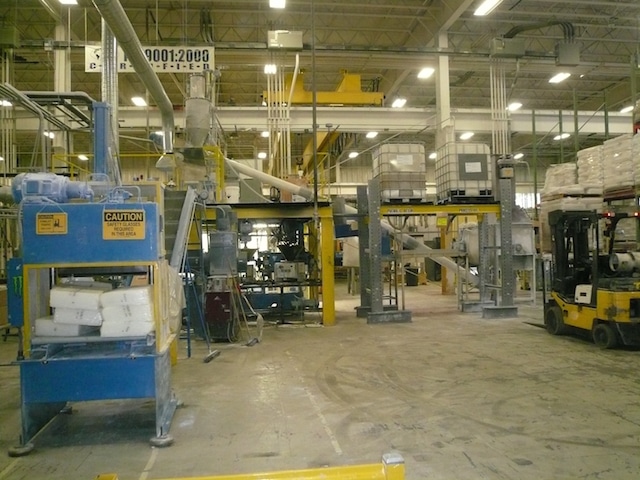

Feed System Includes:
• 75 Cu Ft WC (aprox) Aaron Double Ribbon Blender, stainless steel, non-jacketed, CBO, 25 HP, with top mounted dust collector, feeds directly to main mix hopper
• Brabender feeder system with:
• (2) large dry feeders
• (2) small dry feeders
• (2) liquid feeds, including one heated
• Brabender Congrav RC-4 controller
Gala type SLC 6 pelletizing System With:
• Comes with (3) different dies plates
• With diverter valve
• TWS 80 water recirculation system with reservoir, heat exchanger, and recirculation pump
• Gala model 2008 centrifugal dryer
• Gala touch screen control panel
• Digital system synchronized start control panel
• Witte single separation screener, SS
