Keyence - IM-6025

Item Number
5101
Brand
Keyence
Model
IM-6025
Specification Comments

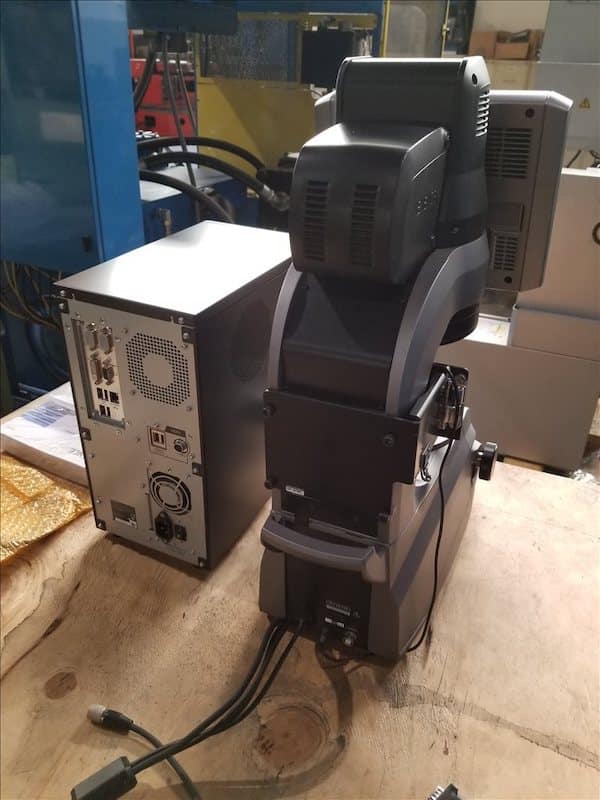

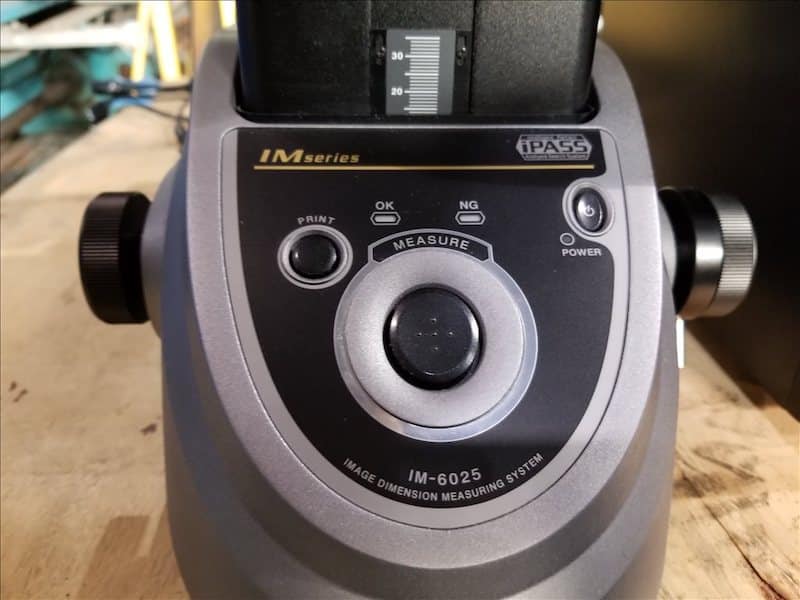

Keyence IM-6025 Image Dimension Measuring System / Optical Comparator

Catalogue Specifications:
Field of View - Wide-Field Mode: 3.94"
Field of View - High-Precision Mode: 0.98"
Minimum Display Unit: 0.000004"
Wide-Field Mode Repetition Accuracy: +/- 0.00004"
High-Precision Mode Repetition Accuracy: +/- 0.00002"
Wide-Field Mode Measurement Accuracy: +/- 0.0002"
High-Precision Mode Measurement Accuracy: +/- 0.0000787"
Z-Axis Movement Range: 1.18"
Z-Axis Stage Withstand Load: 6.6 Lb

Complete With:

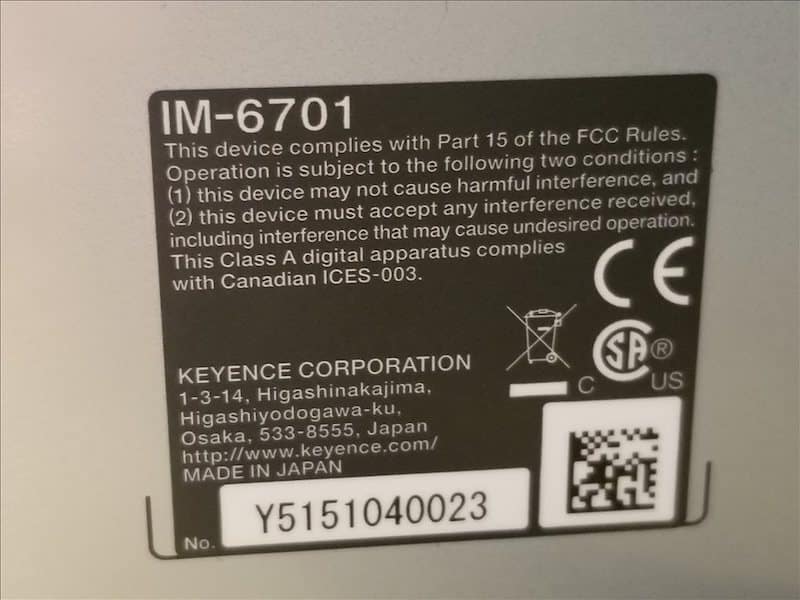

Keyence IM-6701 Controller
Keyence IM-H11E Measurement Settings Editor Software
