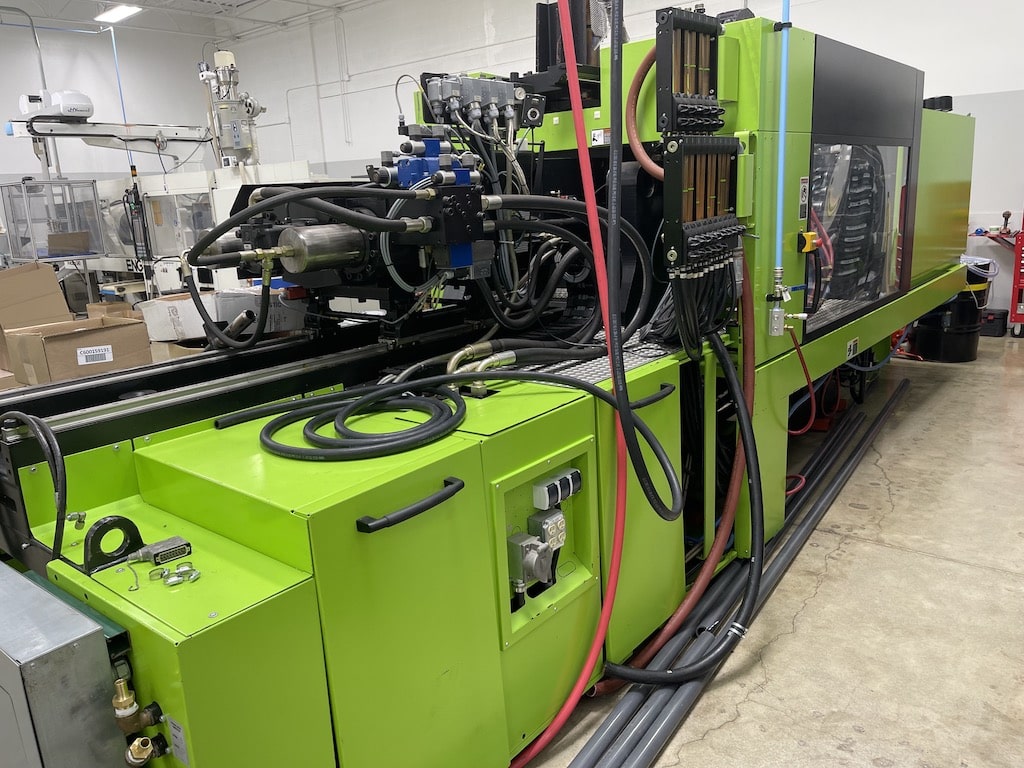

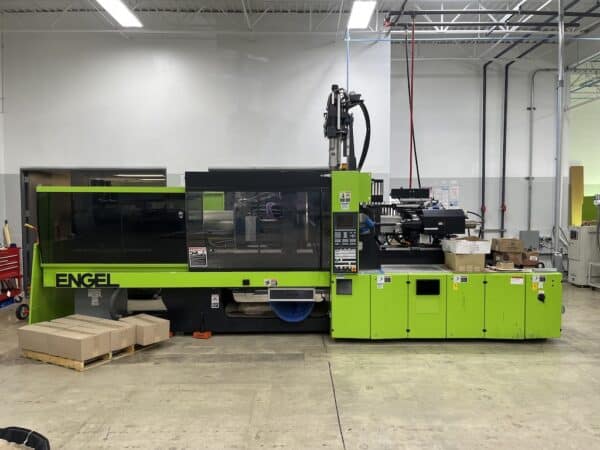

Engel - VC 750H/200V/330 Combi US - 2-Shot

Item Number
5199
Brand
Engel
Model
VC 750H/200V/330 Combi US - 2-Shot
Year
2006
Tonnage
330
Tie Bar Spacing
Tie Barless
Daylight
51.18"
Control
CC100
Clamp Stroke
35.43"
Voltage
460
Ejector Stroke
7.87"
Min/Max Mold Height
15.74" Min.
Specification Comments

10.5 oz. Shot Size on Horizontal Unit
3.3 oz. Shot Vertical Injection Unit
Vertical Injection Unit 2-Station Rotary Platen (1100mm Dia.)
Double Hydraulic Corepull on Movable Platen
Pneumatic Valve Gate Control - 4 Circuits
