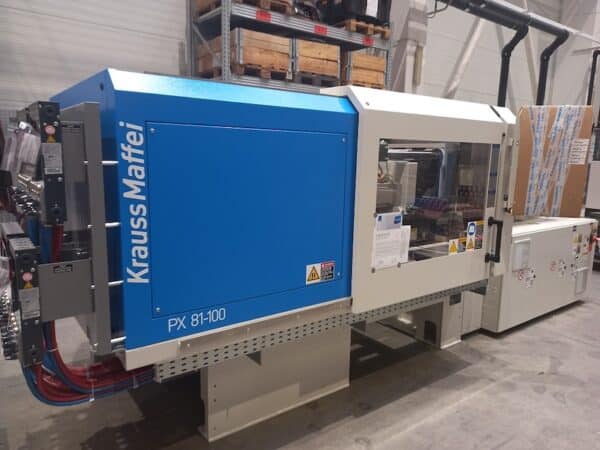

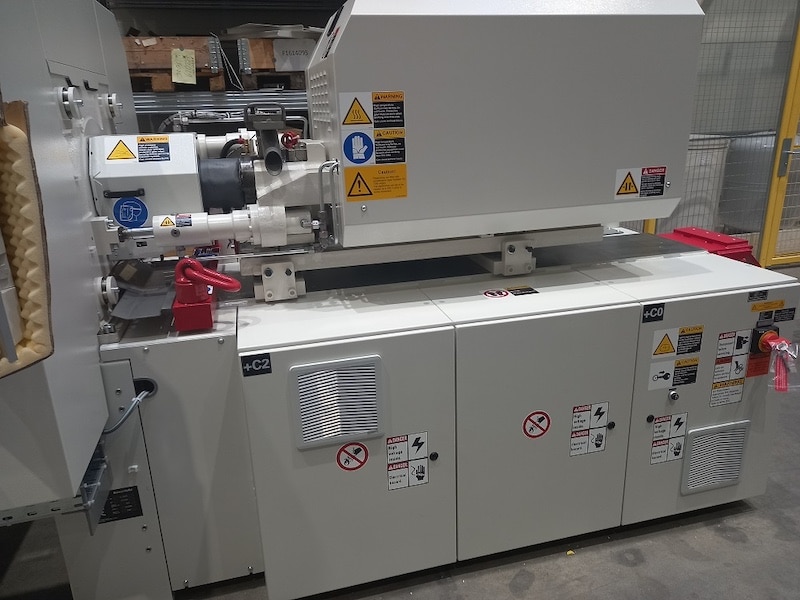

Krauss Maffei - KM 81-100 PX - All Electric

Item Number
5436
Brand
Krauss Maffei
Model
KM 81-100 PX - All Electric
Year
2022
Tonnage
80
Shot Size Oz.
1.022
Shot Size Grams
28.973189
Tie Bar Spacing
19.09" x 17.13"
Platen Size
25.20" x 23.23"
Daylight
29.53"
Clamp Type
5-Point Double Toggle
Control
MC6
Screw Diameter
20mm
Clamp Stroke
13.78"
Voltage
460
Injection Unit Size
100
Ejector Stroke
5.91"
Min/Max Mold Height
5.91" - 15.75"
Specification Comments
NEW - Machine has NOT Been Commissioned

Photos Taken At Factory - Prior to Shipment

Complete With:
All Electric
Core Pull
Pneumatic Valve Gate
Robot Interface
