Lyle - 140VPH Vertical Pre-Heat Oven

Item Number
140VPH Vertical Pre-Heat Oven
Specification Comments

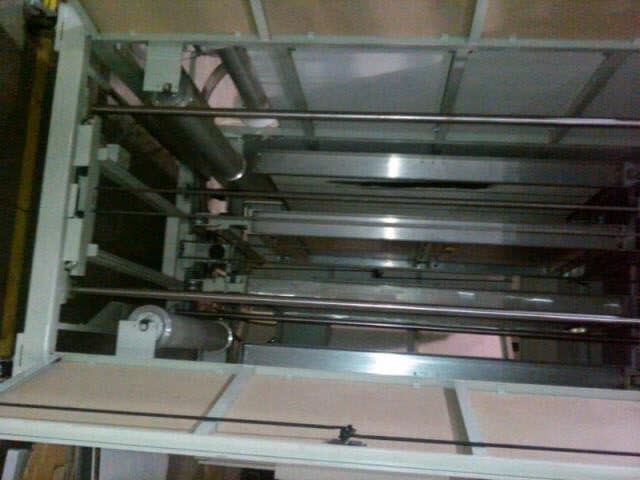

Specifications: 1. Two sets of dual opposing quartz panel ovens, vertical orientation
2. Ovens - 43" w. x 80" tall
3. All 4 ovens power driven in and out for sheet loading

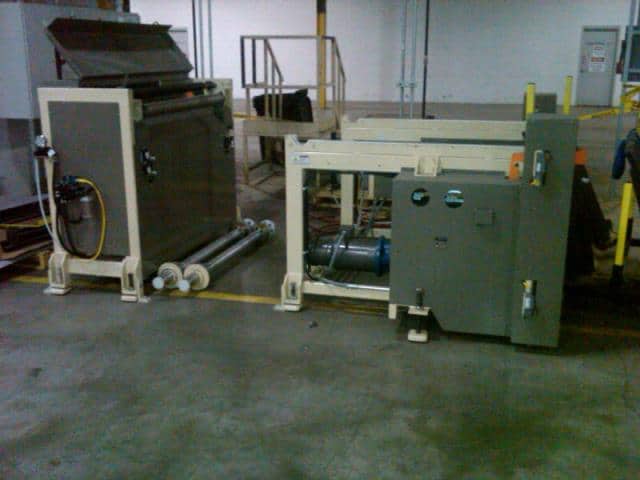

4. Power driven festoon to create material loop in pre-heater prior to ovens entering heating chamber
5. Auto oven retract if the former shuts down or an E-stop is pressed
6. Eight zones of heat control, thermocouple feedback, with individual temperature controllers
7. Locking casters on all four corners of pre-heat oven frame
8. Power nip sheet payout to draw material through pre-heat oven
9. Speed regulation of material through a series of eyes
10. Ability to momentarily release the nip wheels from the drive to allow the material to adjust position to track true
11. Stainless steel support pan to keep material from contacting the floor at the infeed end
12. Sheet side guides on all rollers
13. Selector switch to manually open/close nip wheels during thread up
