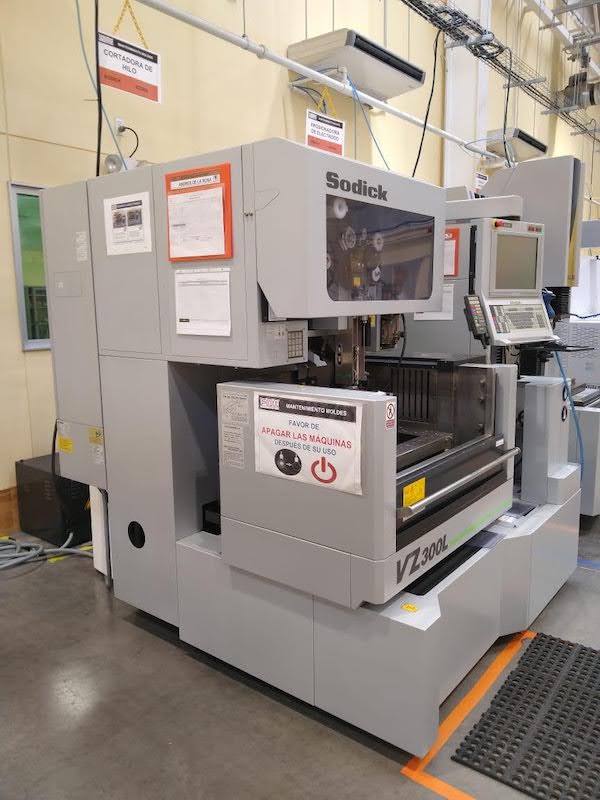

Sodick - VZ300L Wire EDM

Item Number
5033
Brand
Sodick
Model
VZ300L Wire EDM
Year
2015
Specification Comments
Max. Workpiece Dimensions: 30.7" x 22.5" x 8.5"
Max. Workpiece Weight: 1100 Lb.
Work Tank Dimensions: 31.9" x 25.6"
X-Axis Travel: 13.8"
Y-Axis Travel: 9.8"
Z-Axis Travel: 8.7"
U/V-Axis Travel: 3.15" x 3.15"
Taper Angle (at 4.7" Thickness): +/- 15°
Wire Diameter: 0.006" - 0.011"
Wire Feed Speed: 992 IPM

Equipped With:
Sodick LN2W CNC Control
