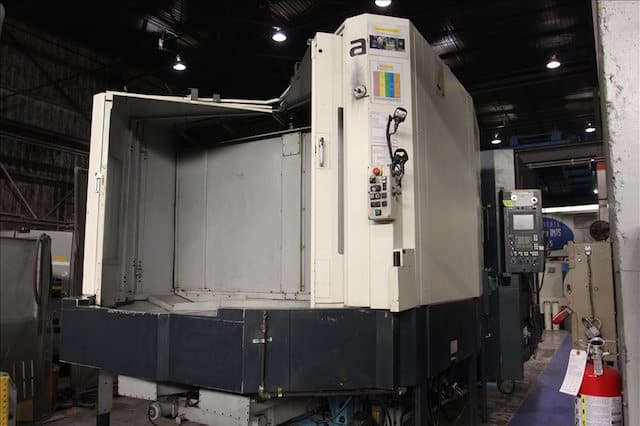

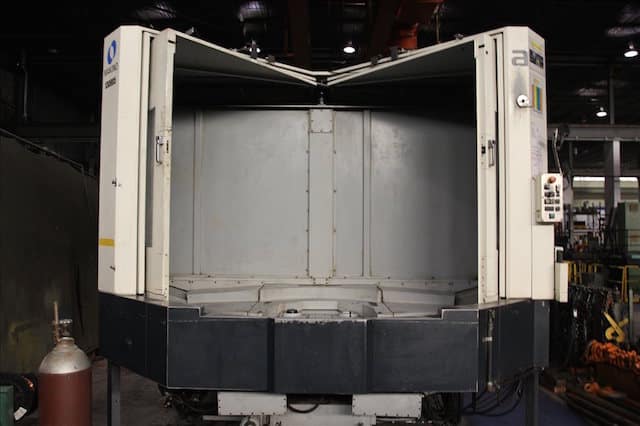

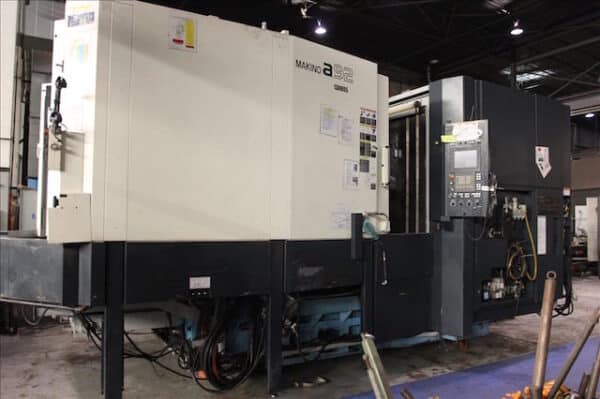

Makino - A92

Specification Comments: X-Axis Travel: 59.8"
Y-Axis Travel: 49.2"
Z-Axis Travel: 53.1"
Spindle Taper: 50 Taper

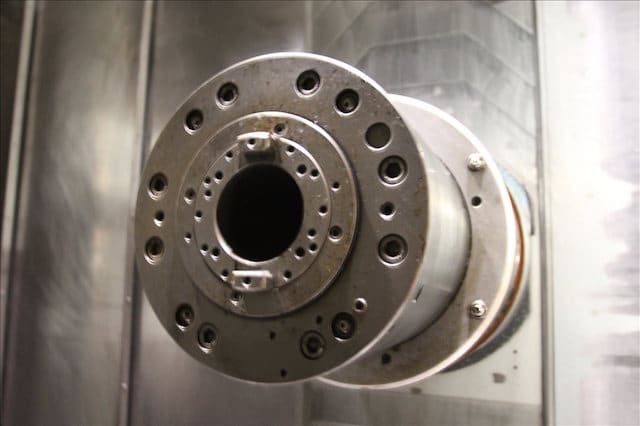

Spindle Speed: 10,000 RPM
Spindle Motor (30 min. rating): 47 HP
Tooling: 90-ATC
Tool Change Time, Tool-to-Tool: 1.9 sec.
Tool Change Time, Chip-to-Chip: 5.4 sec.
Max. Tool Diameter (w/ empty adjacent pockets): 13.8"
Max. Tool Weight: 77 lbs.

EQUIPPED WITH:

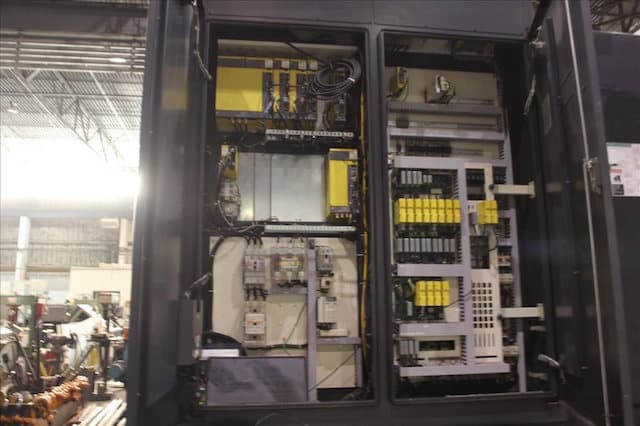

Professional 5 CNC Control
1° B-Axis Indexing Table
