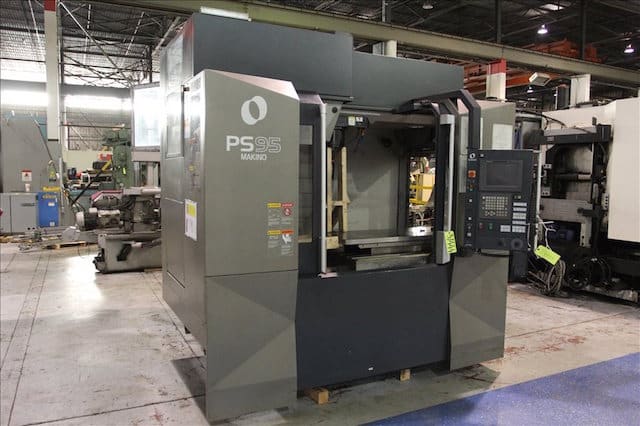

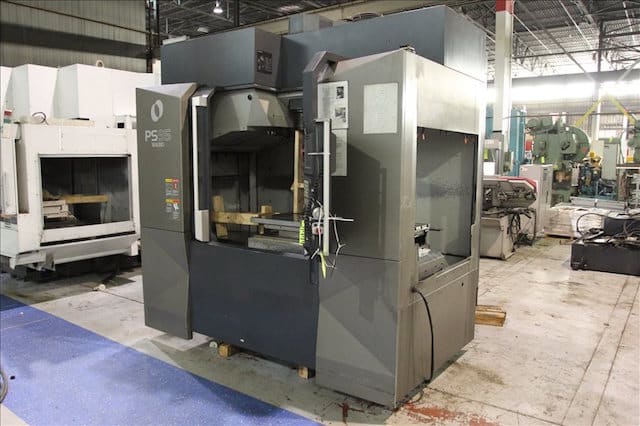

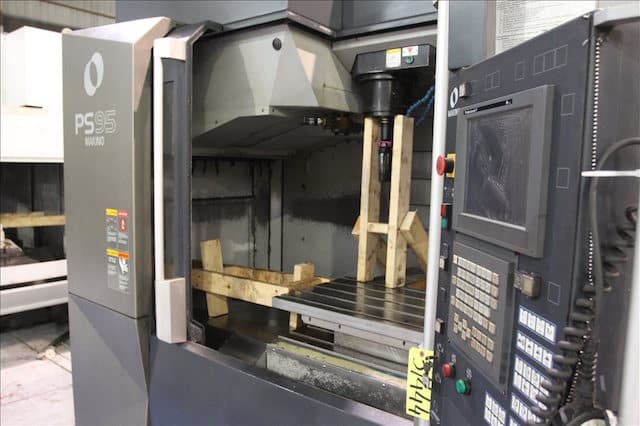

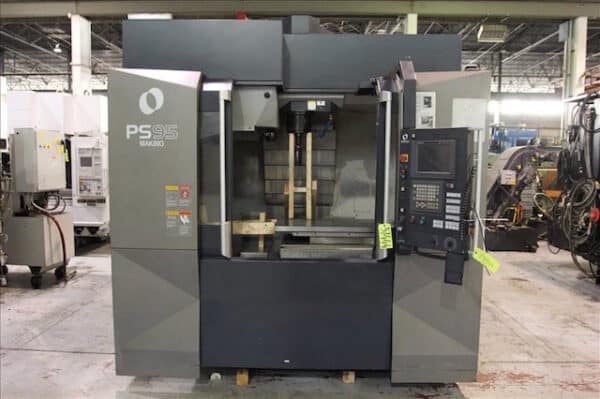

Makino - PS95

Item Number
4679
Brand
Makino
Model
PS95
Year
2012
Specification Comments

X-Axis Travel: 36.2"
Y-Axis Travel: 20"
Z-Axis Travel: 18.1"

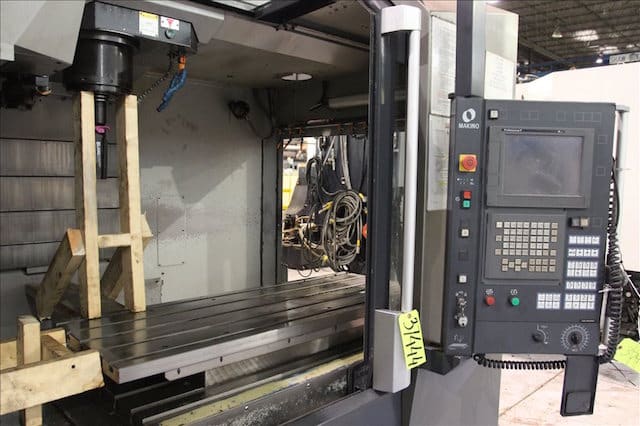

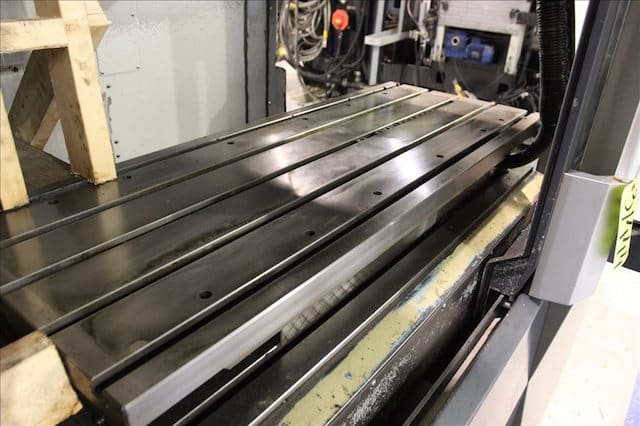

Table Size: 46" x 20"
Table Capacity: 1,763 lbs.

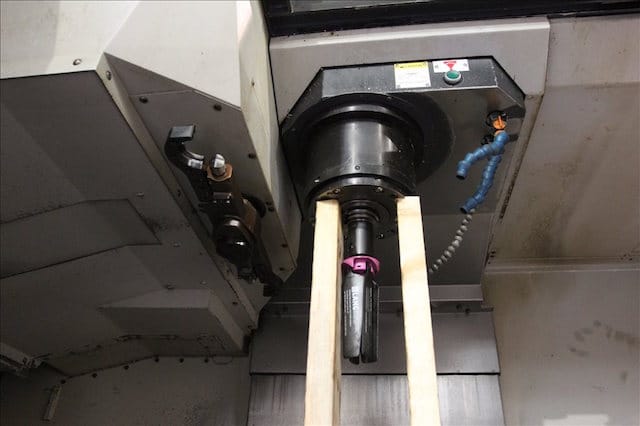

Spindle Taper: CAT 40
Spindle Speeds: 50 - 14,000 RPM
Spindle Speed Ranges: 2 Electronic
Spindle Motor (30 min. / Continuous): 33.5 HP / 24.2 HP
Spindle Nose to Table: 5.9" - 24"
Tool Change Time, Tool-to-Tool: 1.2 seconds
Tool Change Time, Chip-to-Chip: 3.8 seconds
Max. Tool Length: 11.8"
Max. Tool Diameter, Adjacent Pockets Full: 3"
Max. Tool Diameter, Adjacent Pockets Empty: 4.92"
Max. Tool Weight: 17.6 lbs
Cutting Feed Rate: 1,181 IPM
Rapid Feed Rate, X&Y Axes: 1,417 IPM
Rapid Feed Rate, Z-Axis: 1,181 IPM

EQUIPPED WITH:
Midaco Automatic Pallet Changer

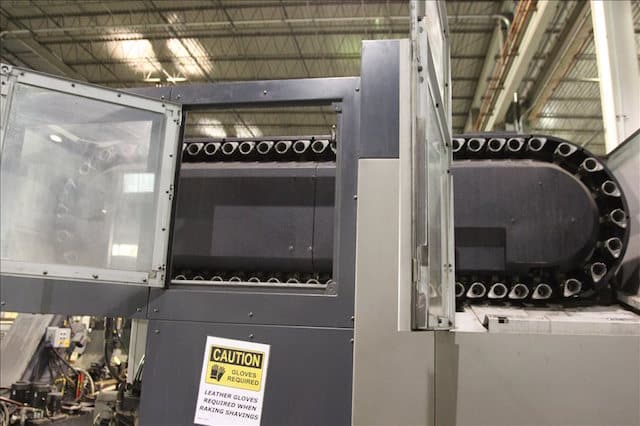

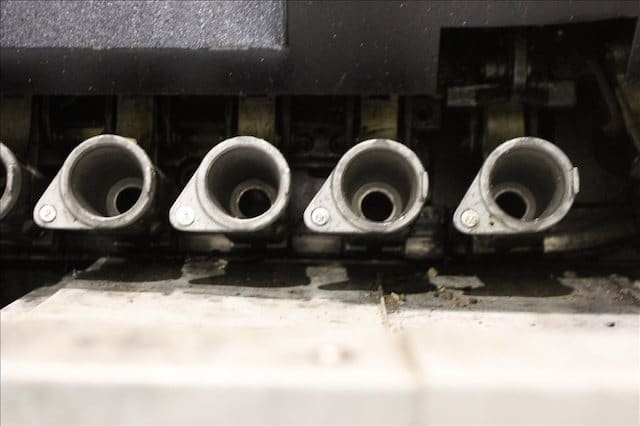

60-Tool Automatic Tool Changer
AC Absolute Digital Servo Motors Axis Drives
Meehanite Cast Iron Bed Construction
Risers
Linear Guides
