Used Vertical Machining Centers (VMC) for Sale

All used machining centers (34) →


See all 34 Machining Centers →

31 results

Used 2023 Haas VF4 Machining Centers, Vertical

Item #6202

2023 Haas VF4

USA

Used 2022 Haas VM-3 Machining Centers, Vertical

Item #6632

2022 Haas VM-3 Vertical Machining Center

USA

Used 2021 Haas VF-6/40 Machining Centers, Vertical

Item #6772

2021 Haas VF-6/40 VMC

USA

Used 2021 Haas UMC-500SS Machining Centers, Vertical

Item #6603

Haas UMC-500SS 5-Axis Machining Center

USA

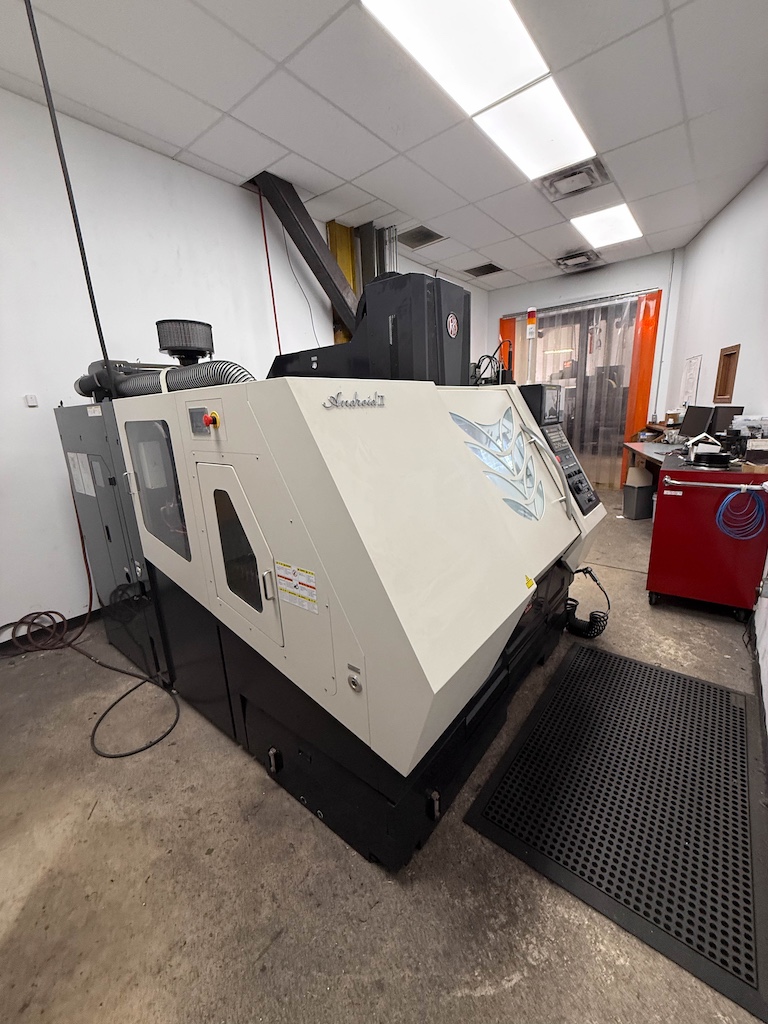

Used 2020 Roku-Roku Android II Machining Centers, Vertical

Item #6048

2020 Roku-Roku Android II

USA

Used 2019 Doosan DNM 4000 Machining Centers, Vertical

Item #6430

Doosan DNM 4000 Vertical Machining Center

USA

Used 2018 DMG Mori DMU 50 Machining Centers, Vertical

Item #6874

2018 DMG Mori DMU 50 5-Axis

Mexico

Used 2016 Samsung SM400DH Machining Centers, Vertical

Item #6410

Samsung SM400DH Dual-Spindle Vertical Machining Center

USA

Used 2015 Milltronics VM30XP Series F Machining Centers, Vertical

Item #6778

2015 Milltronics VM30XP Series F VMC

USA

Used 2015 Doosan DNM 400II Machining Centers, Vertical

Item #6429

Doosan DNM 400II Vertical Machining Center with Rotary Table

USA

Used 2012 Milltronics RH19 Series B Mills, Vertical

Item #6637

2012 Milltronics RH19 Bed Mill

USA

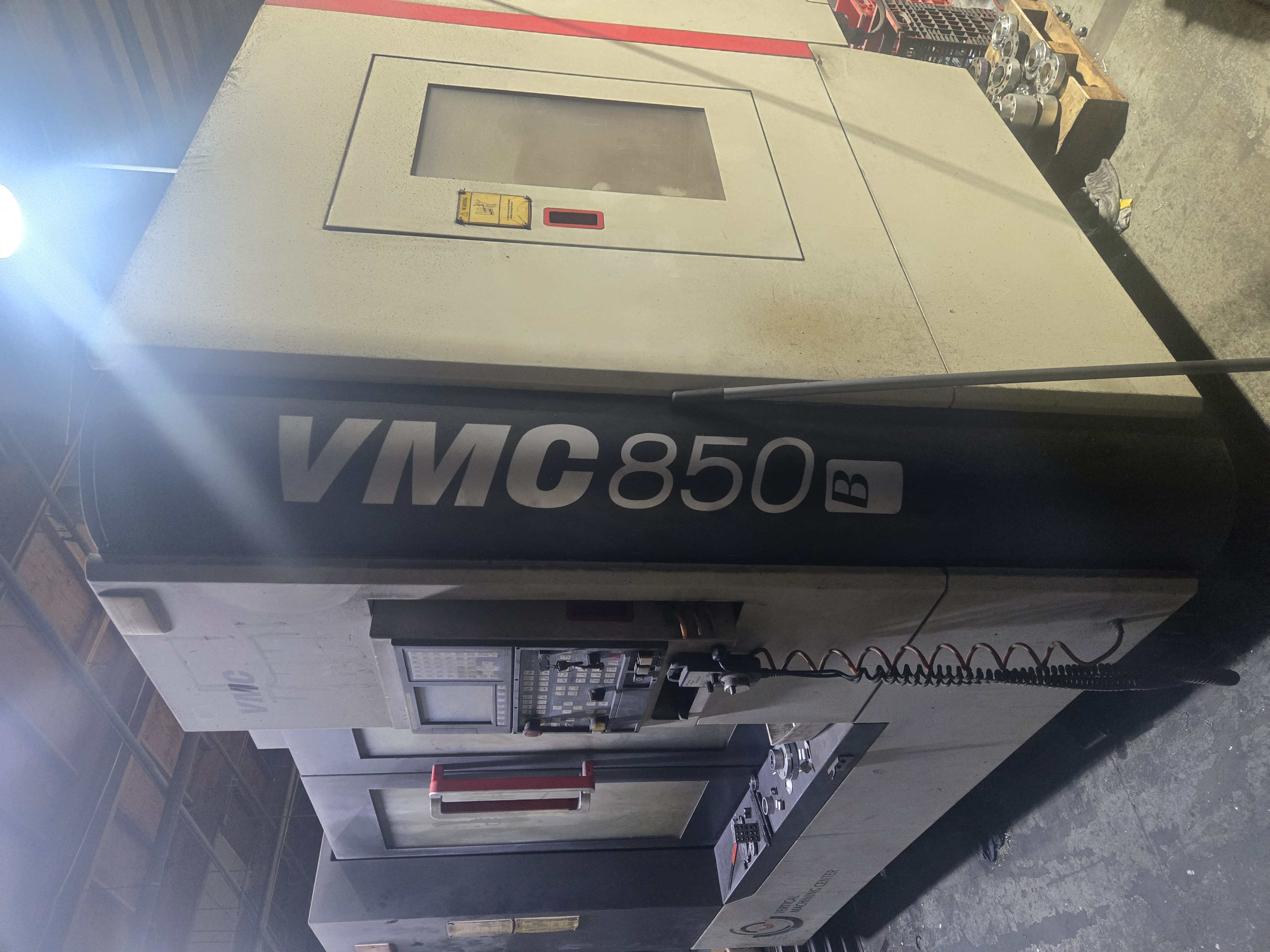

Used 2011 SMTCL VMC 850B Machining Centers, Vertical

Item #6623

2011 SMTCL VMC 850B Vertical Machining Center

USA

Used 2011 DMG Mori DMU 70 Machining Centers, Vertical

Item #6433

DMG Mori Deckel Maho DMU 70 5-Axis Machining Center

USA

Used 2011 Hurco VM20 Machining Centers, Vertical

Item #6322

Hurco VM20 3-Axis CNC Vertical Machining Center

USA

Used 2010 Haas VF-2SS Machining Centers, Vertical

Item #6581

Haas VF-2SS Vertical Machining Center

USA

Used 2010 Mori Seiki NV5000 α1B/50 Machining Centers, Vertical

Item #6424

Mori Seiki NV5000 α1B/50 CNC Vertical Machining Center

USA

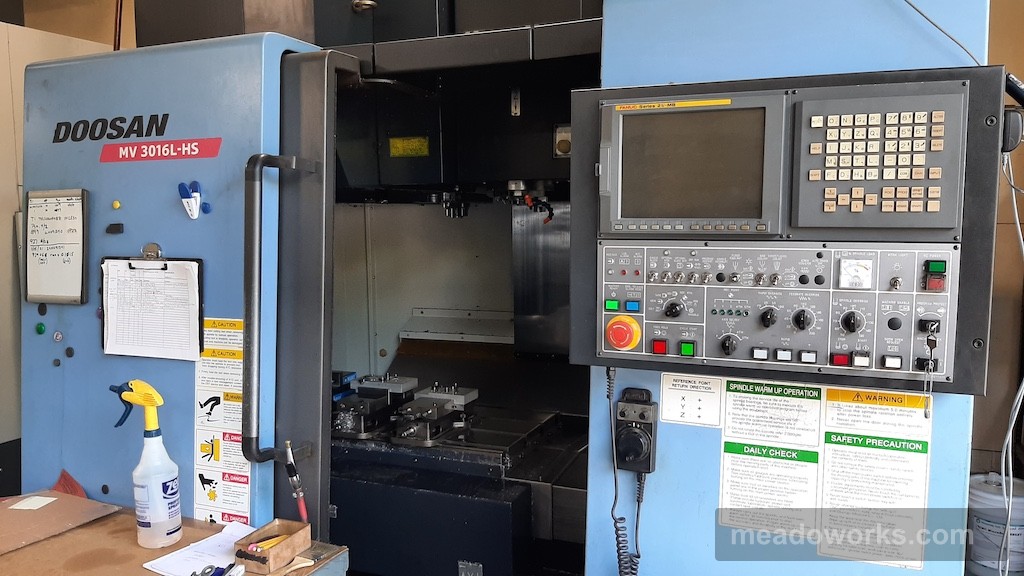

Used 2008 Doosan MV3016LHS Machining Centers, Vertical

Item #5704

Doosan - MV3016LHS

USA

Used 2007 Hurco VM2 Machining Centers, Vertical

Item #6321

Hurco VM2 3-Axis CNC Vertical Machining Center

USA

Used 2006 Milltronics VM17 Machining Centers, Vertical

Item #6406

Milltronics VM17 Vertical Machining Center

USA

Used 2006 Milltronics VM30 Machining Centers, Vertical

Item #6405

Milltronics VM30 Vertical Machining Center

USA

Used 2005 Hardinge GX480DTAPC Machining Centers, Vertical

Item #6323

Hardinge Bridgeport GX480DTAPC CNC Vertical Machining Center with APC

USA

Used 2004 Haas VF-5D/40 Machining Centers, Vertical

Item #6246

2004 Haas VF-5D/40 CNC Vertical Machining Center

USA

Used 2001 Daewoo Mynx 530 Machining Centers, Vertical

Item #6769

2001 Daewoo Mynx 530 VMC

USA

Used 2000 HPM V-750 Machining Centers, Vertical

Item #6328

2000 Monarch PMC V-750 5-Axis CNC Vertical Machining Center

Canada

Vertical Machining Centers (VMC) by the numbers

From our own catalog: machines listed now and machines we have sold. Updated every few minutes.

Our track record

39 machines sold · 11 makes · model years 1986–2022 · 12 sold at our own auctions

By brand

BrandIn stock nowSold by MeadoworksModel years
Haas7111995–2023
Milltronics412006–2015
Doosan402008–2019
Hurco251994–2011
DMG Mori202011–2018
Mori Seiki161998–2011
Bridgeport11—
Daewoo102001
Datron10—
Fryer10—
Get alerts about new vertical machining center listings by email

Looking for Something Specific?

Most of our inventory sells before we can list it online. If you need a specific brand, model, or specification, tell us what you need—we have access to unlisted equipment and machines coming in from plant closures.

Looking to Sell Your VMCs?

Meadoworks is an active cash buyer of used industrial equipment. Get a free valuation from our AMEA-certified appraisers.

Sell Your Equipment

About Used Vertical Machining Centers (VMC)

Vertical machining centers (VMCs) are the most popular CNC milling machines, featuring a vertically oriented spindle. VMCs are versatile, accessible, and ideal for 3-axis machining of prismatic parts, mold cavities, and general-purpose work. Their open design provides easy access for part loading and visual monitoring of operations.

Used VMCs are compared by X/Y/Z travels, table size and load, spindle taper (CAT40/BT40 on most VMCs, CAT50 on heavy-duty machines), spindle speed and power, and tool-changer capacity. A 40-taper VMC with 20–30 tools and 10,000–12,000 RPM covers most job-shop work; high-speed spindles (15,000–20,000+ RPM) suit aluminum and mold work, while geared 50-taper spindles suit heavy steel cutting.

When buying a used VMC, check spindle runout and bearing noise, way and ballscrew wear (backlash), the tool changer, coolant and chip handling, and the control generation. A 4th-axis rotary table or trunnion adds multi-side and 3+2 capability to a 3-axis VMC for much less than a full 5-axis machine.

On a vertical machining center the spindle points down, so the operator can see the cut and a crane can set a plate on the table. Through-spindle coolant and a chip conveyor are the options that turn a toolroom machine into a production machine. Coolant through the tool clears deep holes and taps. A conveyor keeps chips off the ways during a long aluminum cycle. Neither option repairs a tired spindle, and a machine without them can still mill open faces if flood coolant reaches the cutter.

A used vertical machining center is judged on the spindle, the ballscrews and the control, then on those options. Ask whether the drawbar still grips a pull stud. Weak springs let a tool slip under load, and the symptom looks like a poor finish rather than a clamp. Table load has to cover the fixture plus the part, not only the travels on the brochure. Match the electrical service before the truck is booked. A 40-taper machine that spent its life in aluminum is a different spindle from one that hogged steel dies. The alarm history and the sheet metal around the head are how you tell them apart.

Haas, Fadal, Hurco, Mori Seiki, Makino and OKK vertical machines are all in the Meadoworks sales record.

How to Choose a Used Vertical Machining Center

How to Size a Vertical Machining Center

Match travels to the part plus the vise or fixture, with room for the tool to enter and leave. A machine whose brochure looks larger than the work will cost floor space and a longer way system you never use. Then match the taper to the holders you own. CAT40 and BT40 cover most job-shop cuts. CAT50 is for heavy roughing and a second set of holders.

Spindle speed follows the material. Aluminum and small tools want rpm. Steel roughing wants torque at lower speed, which is why a geared 50-taper spindle still has a place. Tool-changer capacity should hold the whole part family. Twenty to thirty tools is a normal magazine. If you swap tools by hand in the middle of a cycle, the magazine is too small.

By Size: Used VMC Price Ranges

Compact 40-taper machines, under 30 in of X travel: about $15,000–$50,000.

Mid-size machines, 30–50 in of X: about $25,000–$90,000.

Large and 50-taper machines, over 50 in of X: about $50,000–$180,000.

What moves the price: age and control generation, spindle hours and runout, through-spindle coolant, a chip conveyor, a 4th-axis rotary, probing and the tool holders included. These are typical used-market ranges, not a quote on any one machine. Call 800-323-0307 for a current price.

Vertical Machining Center Specs to Compare

X/Y/Z travels (in)

Typical range: 20–50 in X on common VMCs

Travels must clear the part and the fixture, including the tool's approach, not just the finished print.

Table load (lb)

A heavy fixture plus the part can overload a small machine even when the travels look generous.

Spindle taper

Typical range: CAT40 or BT40; CAT50 for heavy cuts

The taper has to match the holders already in the drawer or you are buying a second set.

Spindle speed (rpm)

Typical range: 8,000–15,000 on general VMCs

Higher speed helps aluminum and small tools. Steel roughing cares more about torque.

Tool capacity

Typical range: 20–30 tools

The magazine has to hold the part family or someone changes tools by hand mid-cycle.

Control

Haas, Fanuc and similar controls decide who can program the machine on the first shift.

What to Inspect on a Used Vertical Machining Center

  • Run the spindle through its range

    Listen at low and high rpm and ask for spindle hours separately from power-on hours. A roar is bearings.

  • Check backlash on X, Y and Z

    Use a dial indicator or the control screen. One loose axis is a ballscrew or a nut, not a lube reminder.

  • Cycle every tool pocket

    Run the changer twice through the magazine. One pocket that alarms will stop a production job.

  • Test the drawbar

    A tool that slips under load often means weak springs in the drawbar, not a dull cutter.

  • Read the alarm history

    Crash and servo alarms stay in the control. Fresh paint around the head is a question, not a finish.

  • Inspect way covers and wipers

    Torn covers let chips grind the ways. The cover is a small part. The way under it is not.

  • Confirm voltage and options

    Match the electrical service, and write down a fourth axis, probing, through-spindle coolant and a chip conveyor.

Related Equipment

Common Applications

Job-shop plates and housings
Mold bases and cavities
Fixture and prototype plates
Aluminum housings
Steel brackets and plates
Medical device components
Aerospace brackets
Secondary work on turned parts

Frequently Asked Questions

What is a vertical machining center used for?

A vertical machining center mills, drills, taps and bores with the spindle pointing down at the table. That layout fits plates, housings, mold bases and the mixed jobs a shop sees in one week, because the operator can see the cut and a crane can set the part. Three axes cover most of that work. A rotary table adds sides without buying a 5-axis machine. Deep contours and undercuts are the point where a dedicated 5-axis machine starts to make sense.

What should I look for in a used VMC?

Run the spindle across its speed range and ask for spindle hours separately from the hours on the control. Check backlash on X, Y and Z, cycle the tool changer through every pocket, and read the alarm history for crashes. Confirm the taper matches your holders and that the drawbar still grips a pull stud. Way covers should be intact. Then name the control and decide if your crew can program it. Our inspection checklist goes through the same list in order.

What's the difference between a VMC and HMC?

A VMC points the spindle down. It is the simpler machine for vise work, short batches and parts you want to see. An HMC points the spindle sideways, usually with a pallet, so chips fall out of a bore and the next part can be fixtured while the spindle cuts. Horizontals take more floor and more fixture cost. They earn it on repeating multi-side parts. A job shop with mixed work usually starts vertical. A cell with a known part family can start horizontal.

What spindle taper should my VMC have?

CAT40 or BT40 covers most vertical work and keeps the holders you already own in play. CAT50 is for heavy roughing and larger cutters, and it means a different drawer of tooling. HSK appears on high-speed and 5-axis machines. Pick one taper and stay with it across the shop. A bargain machine in the wrong taper is a second tooling budget, and the holders do not interchange just because both are called 40 taper.

Can I add a 4th axis to a used VMC?

Often yes, if the control has the fourth-axis option and the cabinet is wired for it. A rotary table lets you mill several sides in one clamping and is much less machine than a full 5-axis center. Confirm the option before you buy the rotary. A control that was never enabled for a fourth axis is a software and wiring job, not a cable. If the surfaces need the tool to move while the part tilts, the rotary is the wrong answer.

Do I need through-spindle coolant on a vertical machining center?

You need it for deep holes, for taps that pack chips, and for cycles where nobody can stand at the door with a nozzle. Open milling, faces and most prototype plates run fine on flood coolant if it actually reaches the cutter. Adding through-spindle coolant later is straightforward on some builders and a rebuild on others. If the work is mostly drilled, treat the option as required. If the work is open milling, do not reject a sound spindle over a missing pump.
