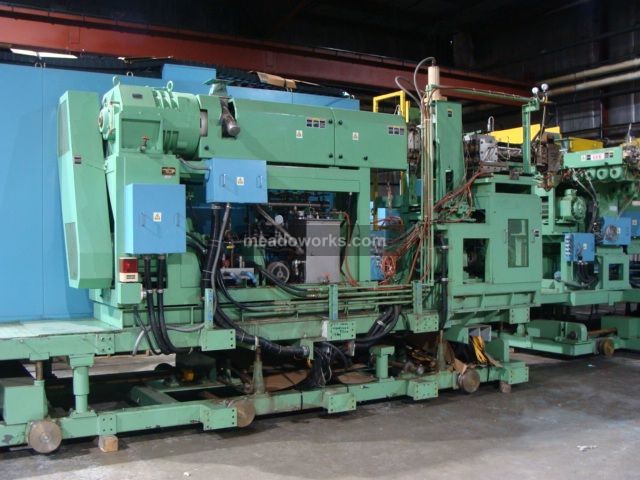

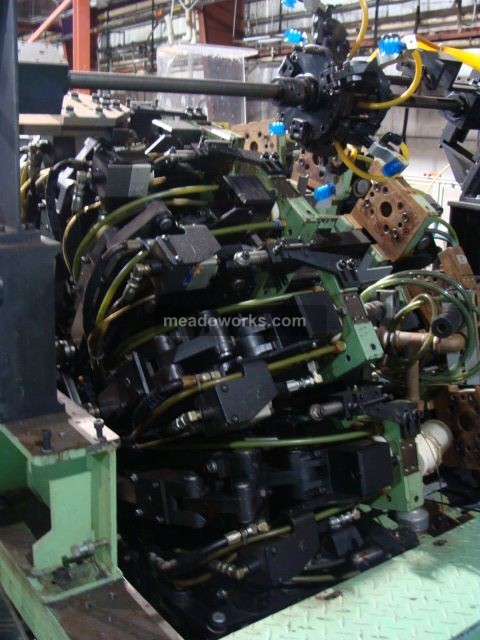

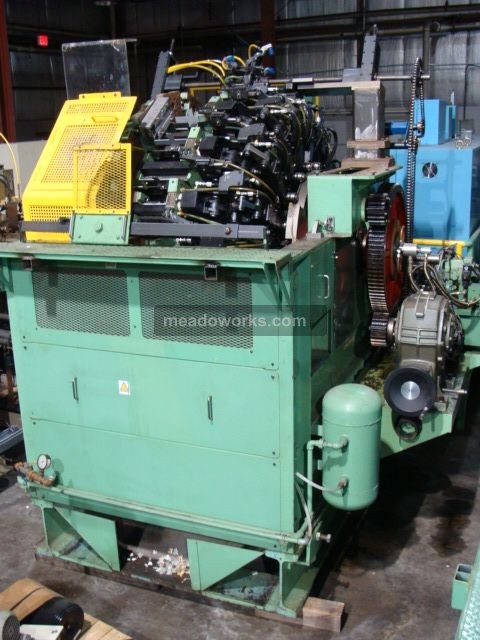

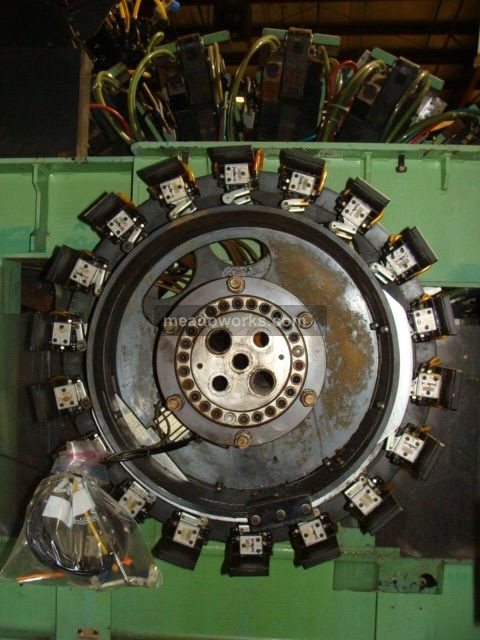

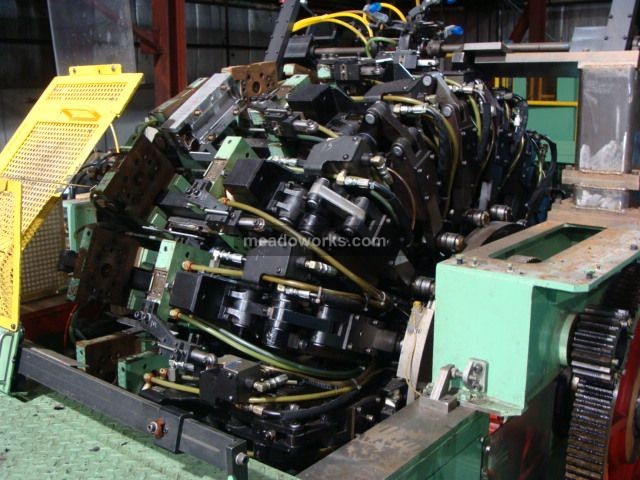

1993 Toyo BMSR-VP-1400 x 260HD Six-Layer Extrusion, 18-Station Rotary Wheel Continuous Automatic Bottle Blow Molder

Additional Specifications

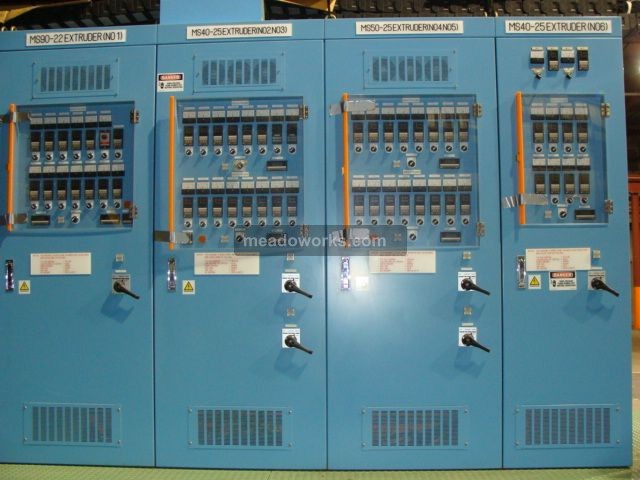

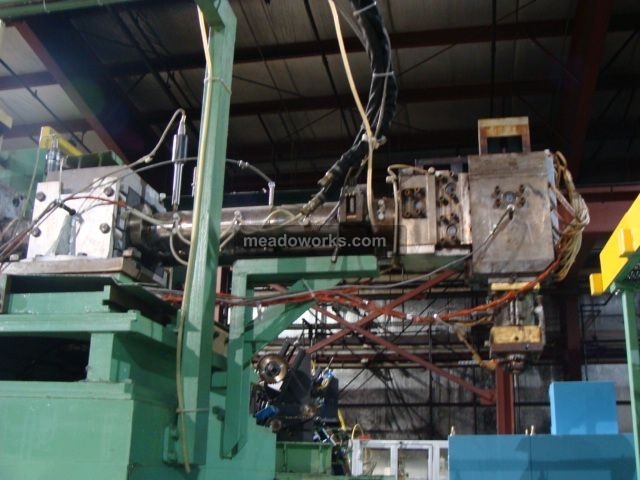

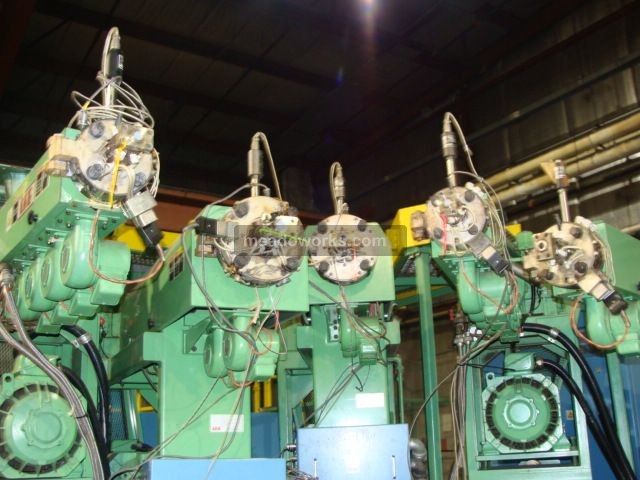

Capacity: 100 BPM (Max) Body Long Dia.: 100 mm Body Short Dia.: 80 mm Total Height: 173 mm (Max) Mountable Blow Mold Dims.: Length: 236 mm Width: 168 mm Thickness:68 mm Number of Cavities: 18 Number of take-out Arms: 6 Number of Extruders: 6 MS90-22, 90 mm Screw; L/D=22, Max Speed: 90 RPM, Output: 120 kg/hr, Resin: PE MS40-25, 40 mm Screw; L/D=25, Max Speed: 60 RPM, Output: 10 kg/hr, Resin: PE MS40-25, 40 mm Screw; L/D=25, MaxScrew Speed: 120 RPM, Output: 15 kg/hr, Resin: Adhesive MS50-25, 50 mm Screw; L/D=25, Max Screw Speed: 90 RPM, Output: 30 kg/hr, Resin:PE MS50-25, 50 mm Screw; L/D=25, Max Screw Speed: 90 RPM, Output: 30 kg/hr, Resin:PE MS40-25, 40 mm Screw; L/D=25, Max Screw Speed: 60 RPM, Output: 10 kg/hr, Resin:EVOH Multi-Layer Die Head w/ Orifice Tooling and Parison Programming M-8P-90 Rotary Reaming Machine to Convert Bottles into Lamacon Tubes w/ Tube Neck Reaming All Extruders Mounted on Common Motorized Base Dryers and Hoppers Complete Line with Detailed Specs, Manuals and Drawings
