2005 Davis-Standard 35IN35

Additional Specifications

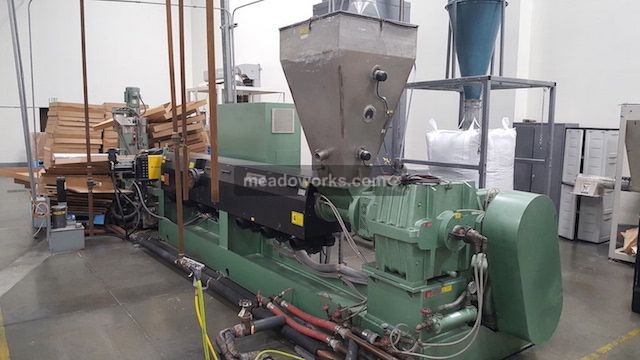

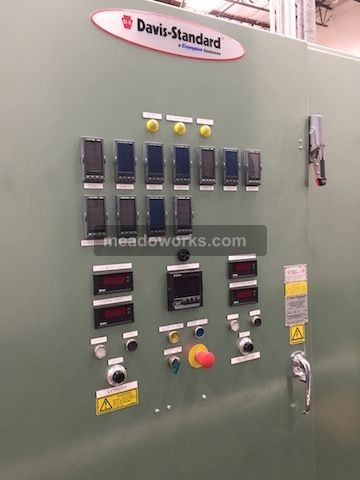

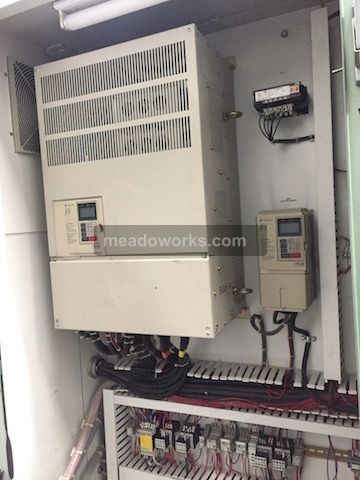

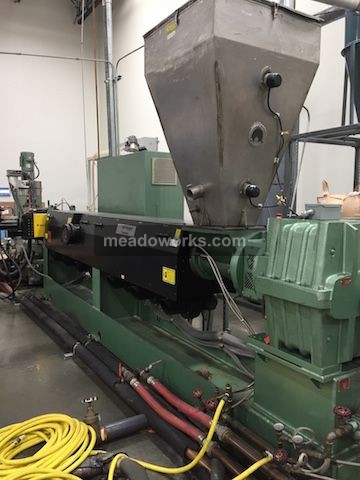

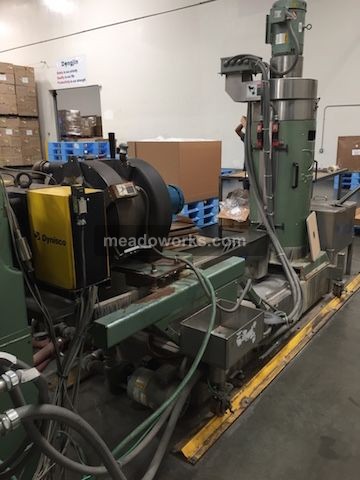

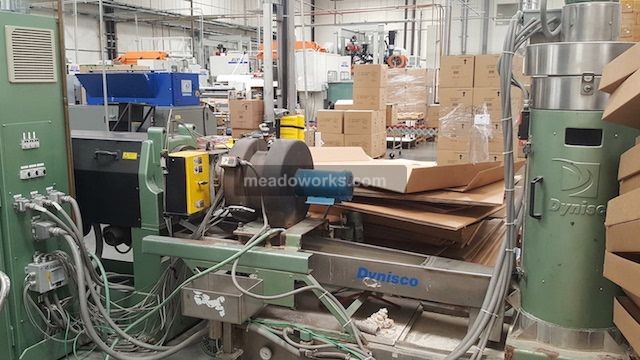

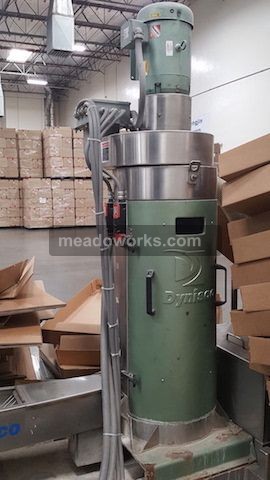

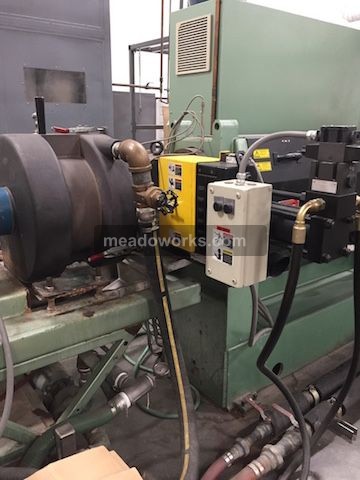

One (1) Used Davis Standard/Dynisco pelletizing line consisting of: 3.5" Davis Standard extruder model 35IN35, Type DSPA, new 2005, electrically heated, air cooled, 36:1 L/D (aprox) vented barrel,10" x 14" oversized feed throat, 2-stage screw cored for temperature control, stainless steel material feed hopper with material level sensors, gearbox rated 257 HP, 17.39:1 reduction ratio, with liquid cooling system and heat exchanger, driven by 250 HP DC motor 1700 RPM with cooling blower, panel mounted Yaskawa model CIMR-F7U4110 drive controller standalone control panel mounted on base with 10-zones digital controllers 7-barrel, 1-screen changer, 1-adapter, 1-die, 1-melt temperature indicator, individual start/stop controls for extruder and pelletizer with digital motor amp, screw speed, and pelletizer speed indicators with 10-turn speed potentiometers for each and system e-stop and reset buttons, digital melt pressure gauge. 3.5" Dynisco slide plate screen changer, 2-position type, with hydraulic power pack with accumulator and controls. Dynisco water ring pelletizing system model WRP121-GF, 2-HP cutting head, 3 HP centrifugal dryer, with tempered water recirculation system. Automatic material air-veyor feed system to extruder material feed hopper with controls mounted on extruder base. Air-veyor discharge system from pelletizer outlet to cyclone with bag-house dust collector super-sack filling unit.
