SOLD
5 photos

Specifications

Item Number3366
BrandWayne Yellowjacket

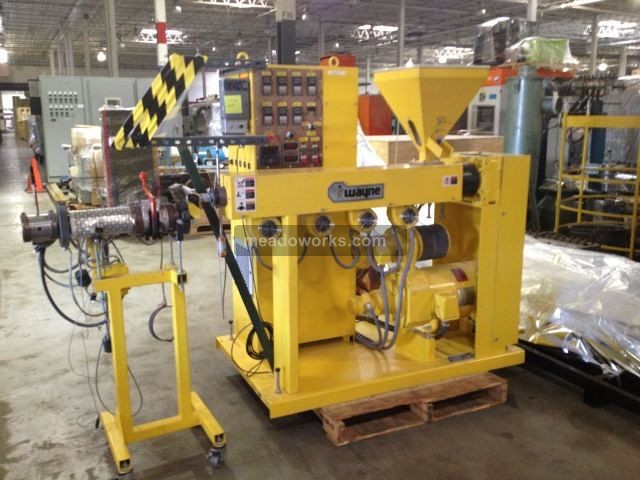

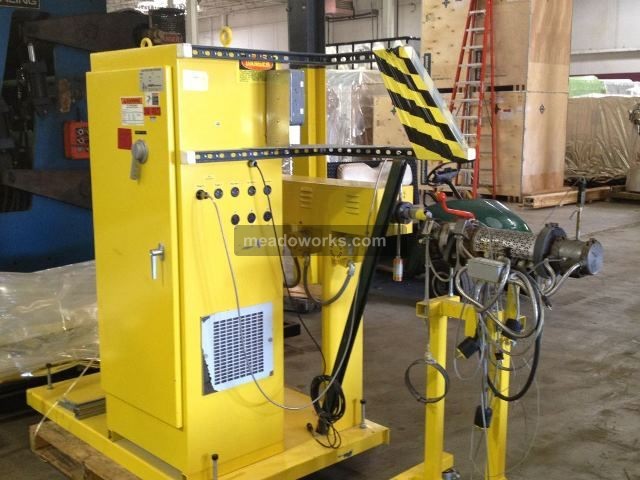

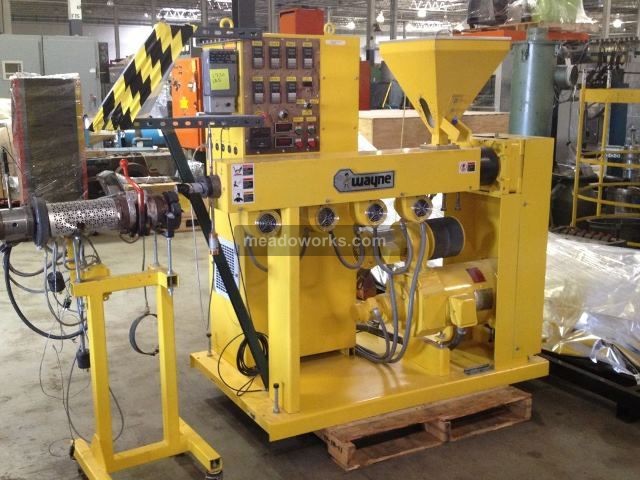

Model1.5" Single Screw Compounding Extruder
TypeExtruder
LocationUSA
Screw Diameter1.5"
Single Or Twin ScrewSingle Screw

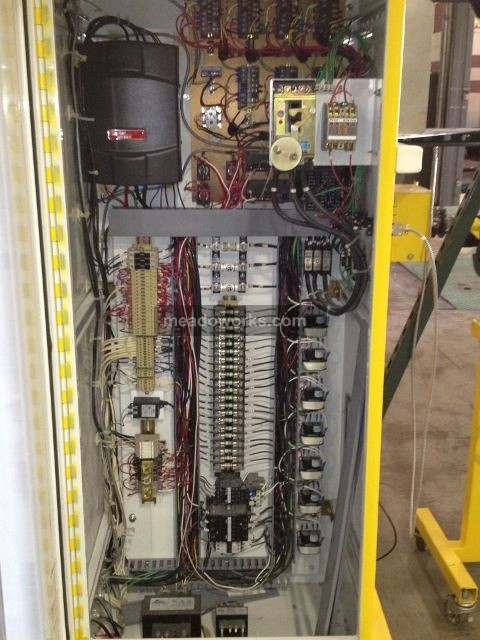

ControlBardac panel mounted SCR drive controller
Voltage230

Features & additional specifications

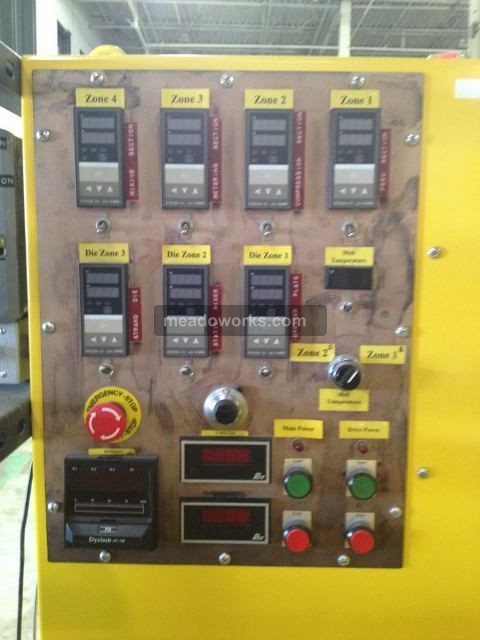

barrel is 31 L/D, static mixer is 13 L/D, screw is 33:1 L/D and extends into the static mixer, entire process section 44 L/D, electrically heated, air cooled with four (4) cooling fans, water cooled feed throat, standard center line height 42" +/-, with manual 2-position screen changer and 6-hole strand die, driven by 15 HP US Motors DC motor, with .33 HP cooling fan, and Bardac panel mounted SCR drive controller, 7-zone control panel with Syscon Rkc REX-C400 digital temperature controllers, 4-barrel zones and 3-downstream zones plus 1-melt temperature, 1-melt pressure, and 1-motor load all digital indicators, unitized on base with casters. Static mixer also on base with casters. Liquid injection port in hopper extends to the feed throat, 3-60-240v electrics

This machine has been sold. Looking for a similar Wayne Yellowjacket extruder? We source equipment from plant closings and surplus operations daily.
