Haas DS 30Y
Financing availableLearn more| Item Number | 6201 |
| Brand | Haas |
| Model | DS 30Y |
| Year | 2023 |
| Location | USA |
Additional Specifications
Dual-Spindle CNC Turning Center with Y-Axis
Capacity
Max Cutting Diameter: 13.75"
Max Cutting Length: 32.5"
Bar Capacity: 3.0" (76 mm)
Max Swing Over Front Apron: 31.75"
Swing Over Cross Slide: 20.75"
Main Spindle
Spindle Nose: A2-6
Chuck Size: 10"
Max Speed: 4,500 RPM
Motor: 30 HP Vector Drive
Spindle Bore: 3.5"
C-Axis: Full, 5 HP
Secondary (Sub) Spindle
Spindle Nose: A2-5
Chuck Size: 8.3"
Max Speed: 4,000 RPM
Motor: 15 HP
Spindle Bore: 2.3"
C-Axis: Full
Capability: Synchronous turning, on-the-fly part pass-off
Travels
X-Axis: 12.5"
Y-Axis: ±2.0"
Z-Axis: 23.0"

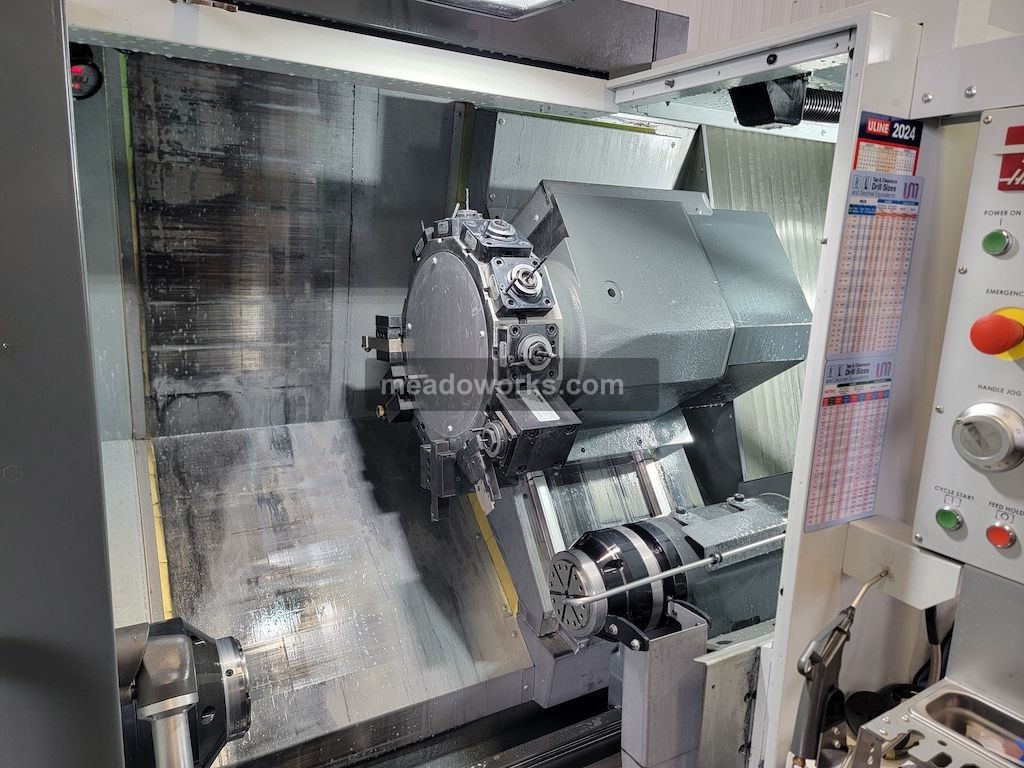

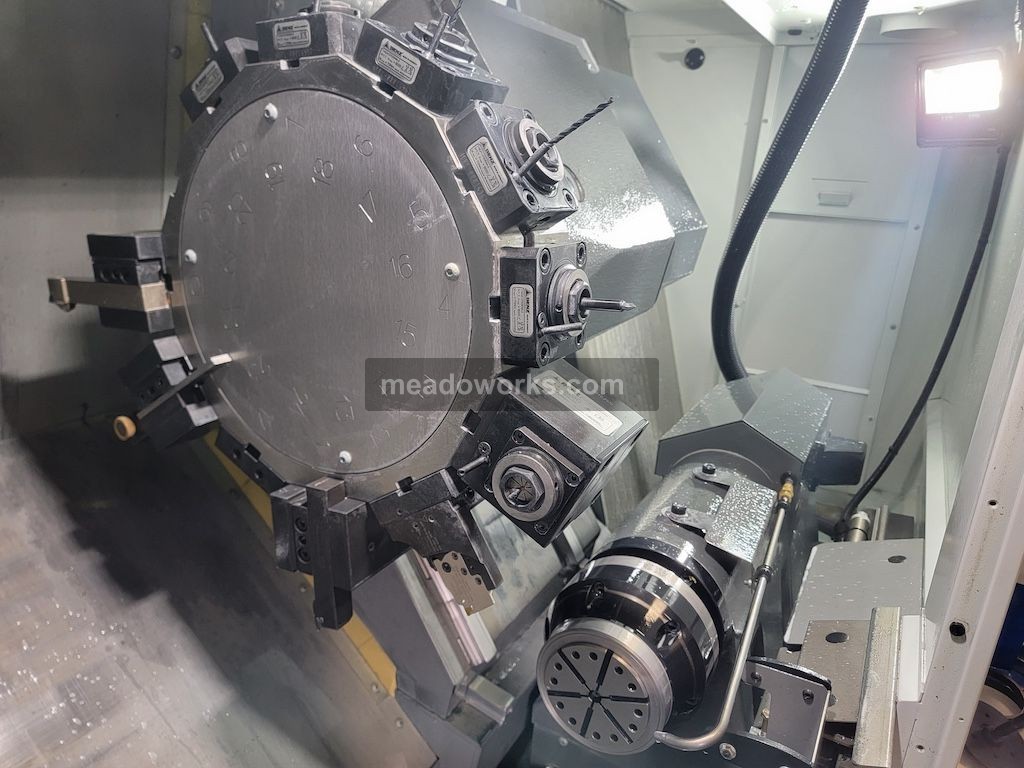

Turret & Live Tooling
Turret: 24-Station BMT65
Live Tooling Speed: 6,000 RPM
Live Tooling Motor: 5 HP
Why This Machine
This late-model 2023 Haas DS 30Y represents excellent value compared to new equipment pricing. Haas is one of the most recognized names in CNC machining. This DS 30Y offers proven reliability backed by strong parts availability and service support networks. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
This used 2023 Haas DS 30Y CNC Turning Center is available for immediate purchase from Meadoworks. This Haas DS 30Y was manufactured in 2023. Contact Meadoworks at 800-323-0307 to discuss this Haas DS 30Y or request a detailed inspection report. Financing and international shipping available.
Common Applications
- • Aerospace components
- • Mold & die making
- • Medical implants & instruments
- • Automotive precision parts
- • Job shop production
