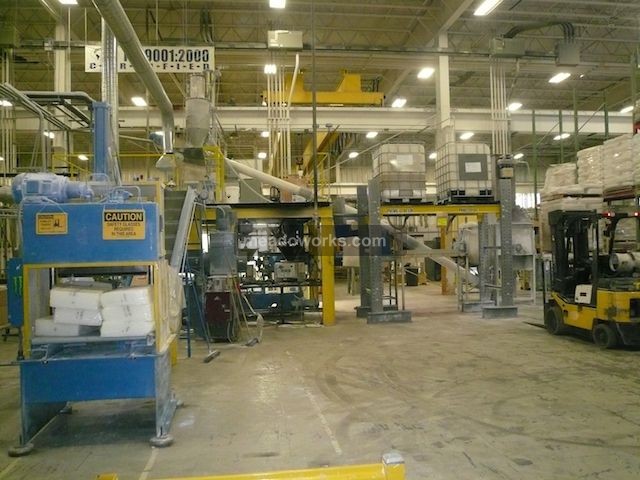

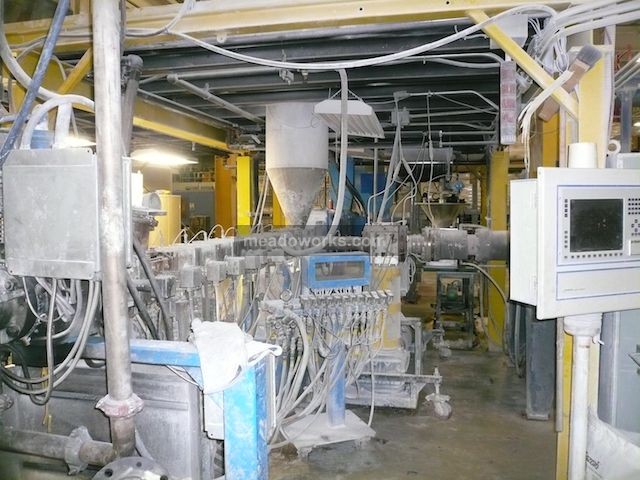

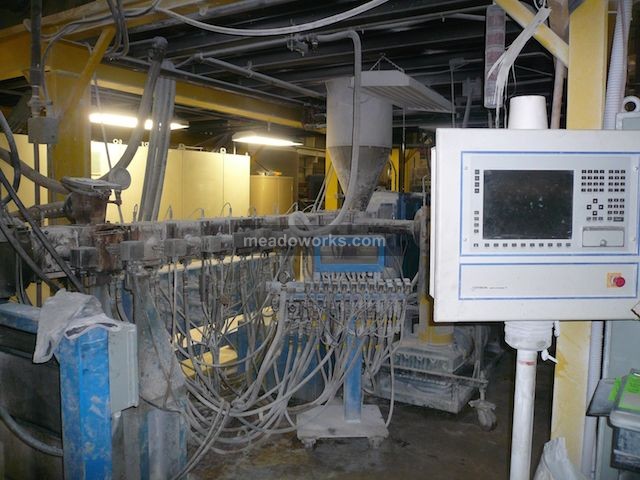

1997 Coperion ZSK58 MC - Compounding Line

Additional Specifications

1997 Coperion Model ZSK58 MC Twin Screw Extruder • (14) barrel sections including main feed, with (5) open barrel sections (2) sections with top feeds, (1) section with a side feed and (2) liquid injection ports, Not currently mounted but with (2) side feeders and (2) liquid injectors • 400 HP DC motor and panel mounted Siemens SCR drive controller through Flender gearbox SN: 195 509 104 -027 -1, rated 314 kW (420 HP), input RPM 1654, output RPM 1200 Feed System Includes: • 75 Cu Ft WC (aprox) Aaron Double Ribbon Blender, stainless steel, non-jacketed, CBO, 25 HP, with top mounted dust collector, feeds directly to main mix hopper • Brabender feeder system with: • (2) large dry feeders • (2) small dry feeders • (2) liquid feeds, including one heated • Brabender Congrav RC-4 controller Gala type SLC 6 pelletizing System With: • Comes with (3) different dies plates • With diverter valve • TWS 80 water recirculation system with reservoir, heat exchanger, and recirculation pump • Gala model 2008 centrifugal dryer • Gala touch screen control panel • Digital system synchronized start control panel • Witte single separation screener, SS
