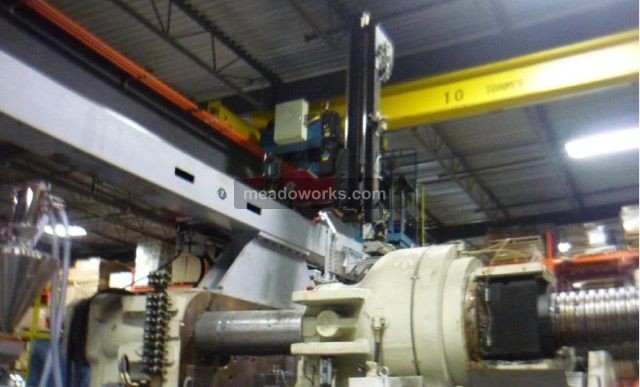

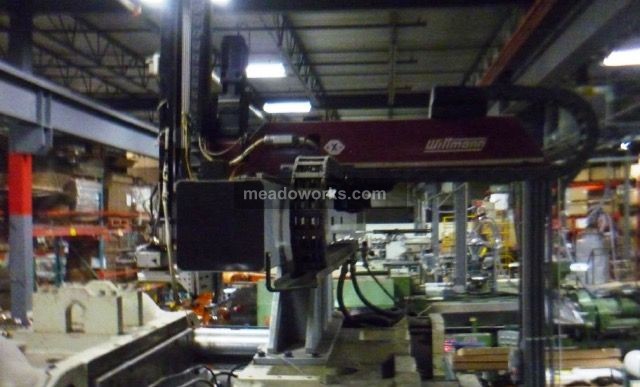

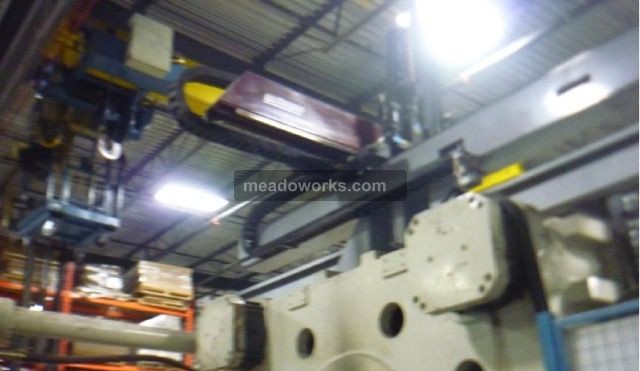

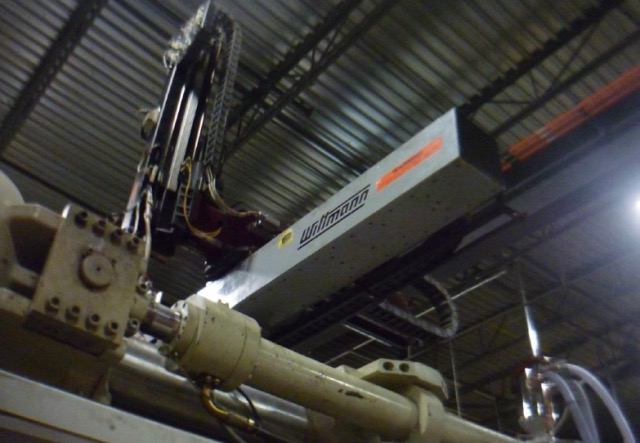

2002 Wittmann W653 - 3-Axis Servo

Additional Specifications

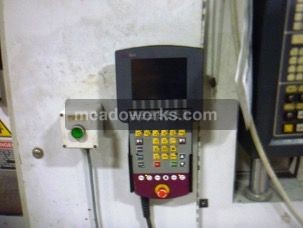

1) X-axis (kick stroke): - Heavy-duty linear rails and recirculating ball bearings. - Pneumatic shock absorbers - Adjustable stroke 1500mm 2) Y-axis (vertical stroke): - Adjustable stroke 2000mm - Pneumatic shock absorbers - Locking cylinder to prevent the arm from drifting down into the mold in the event of air pressure loss - The Y-axis is also equipped with a heavy-duty switch as an additional interlock before the mold can close - Energy chain for less wear tubing 3) Z-axis (Traverse): - Adjustable stroke 5000mm - Pneumatic shock absorbers - The Y-axis is also equipped with a heavy-duty switch as an additional interlock before the mold can close - Energy chain for less wear tubing 4) A-axis (90 Degree tooling rotation, pneumatics) -Pneumatic shock absorbers 5) B-axis (90 Degree tooling rotation): -Pneumatic shock absorbers MAX PAYLOAD: 50KG Included: -All documentation (English) -digital card for additional equipment -wiring diagram -SPI connector -factory floppy disk -This sprue picker have many option like palletizing -very easy to program -spare parts are easy to find -2 different programming modes (structural text or diagram) -color teach pendant -mold monitoring -positive (gripper) and negative (vacuum) valve
