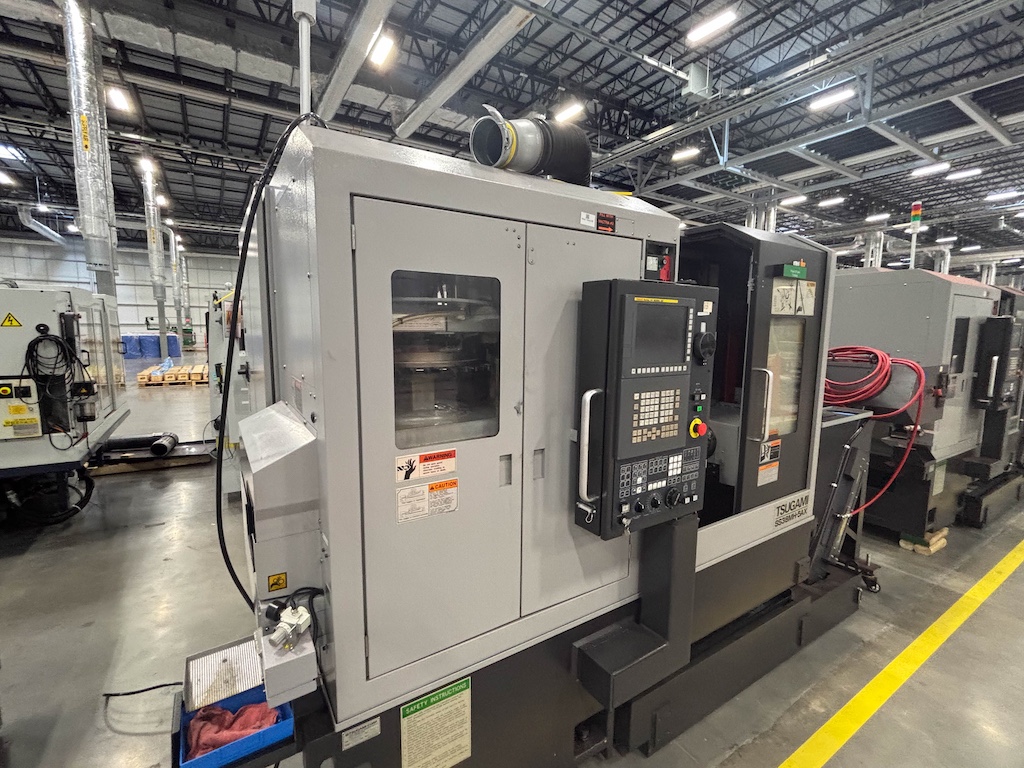

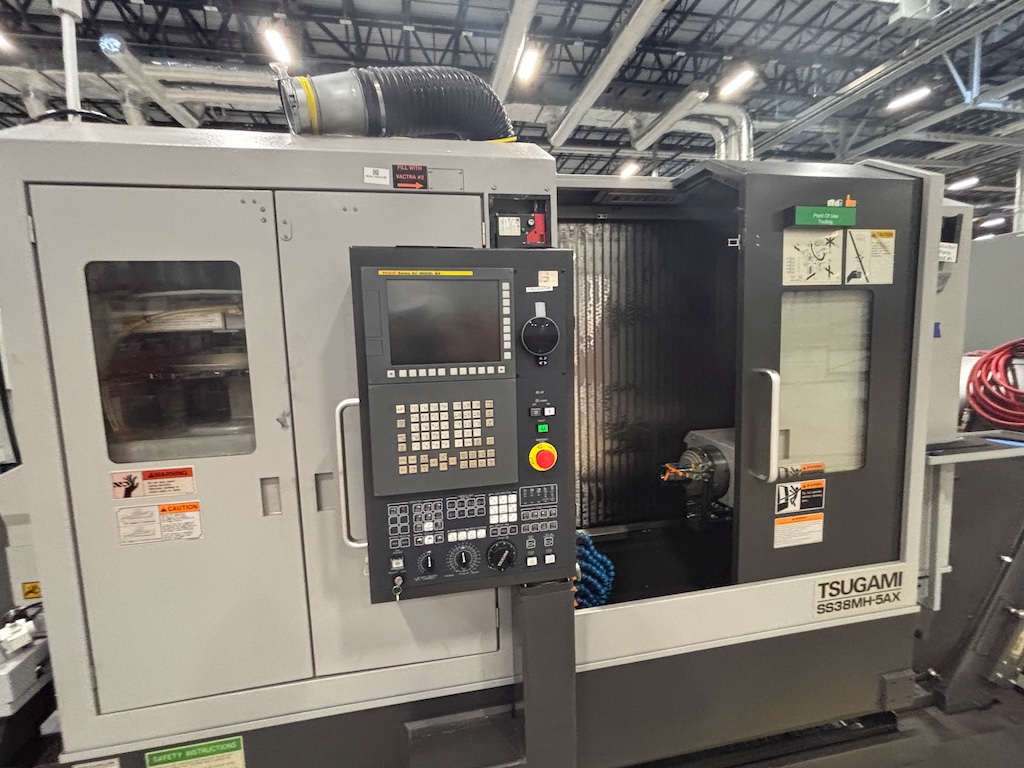

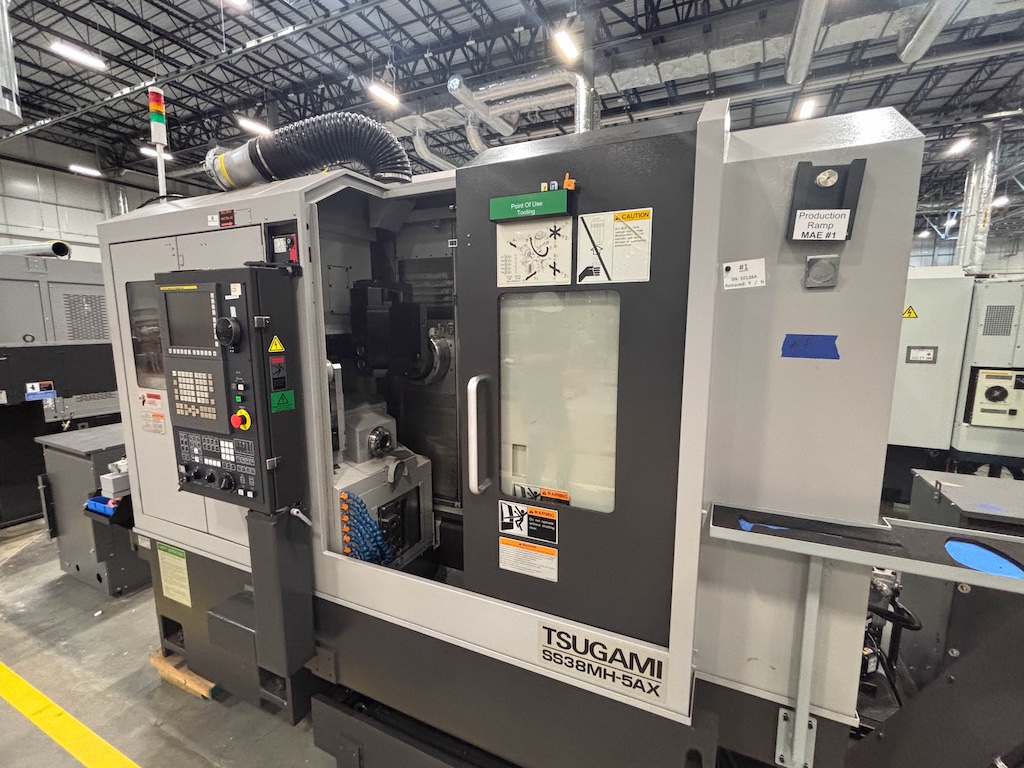

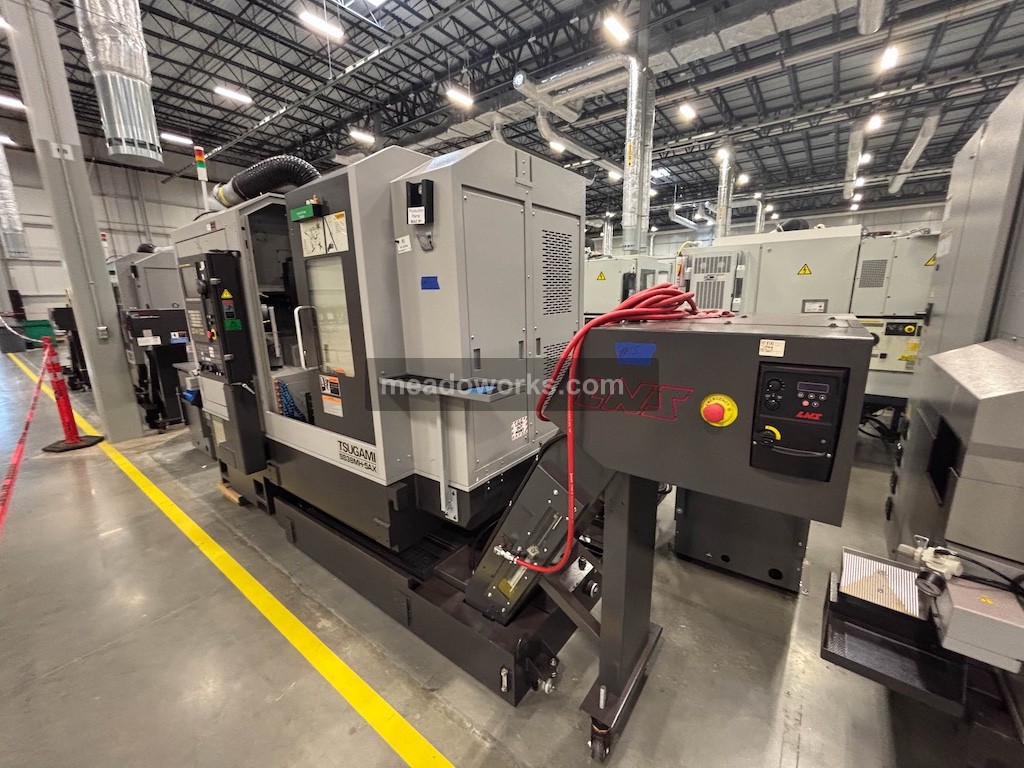

2021 Tsugami SS38MH-5AX
SOLD| Item Number | 6038 |
| Brand | Tsugami |
| Model | SS38MH-5AX |
| Year | 2021 |
| Location | USA |
Additional Specifications
Bar Capacity: Ø8 – Ø38 mm
Max Machining Length (Guide-Bushless): 100mm
Max Machining Length (Guide Bushing): 300 mm
# of CNC Axes: 8 (X1, Y1, Z1, A1, X2, Y2, Z2, B1) + C1/C2 Spindle Indexing
Spindle:
Main Spindle: 7,000 RPM

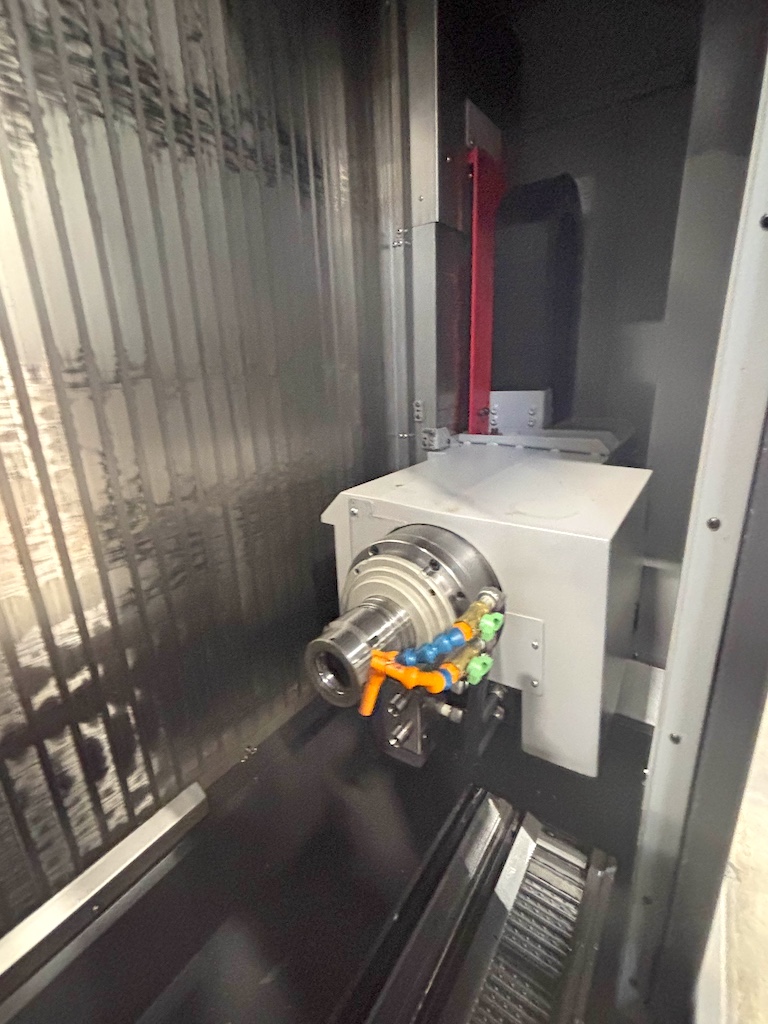

Back Spindle: 7,000 RPM

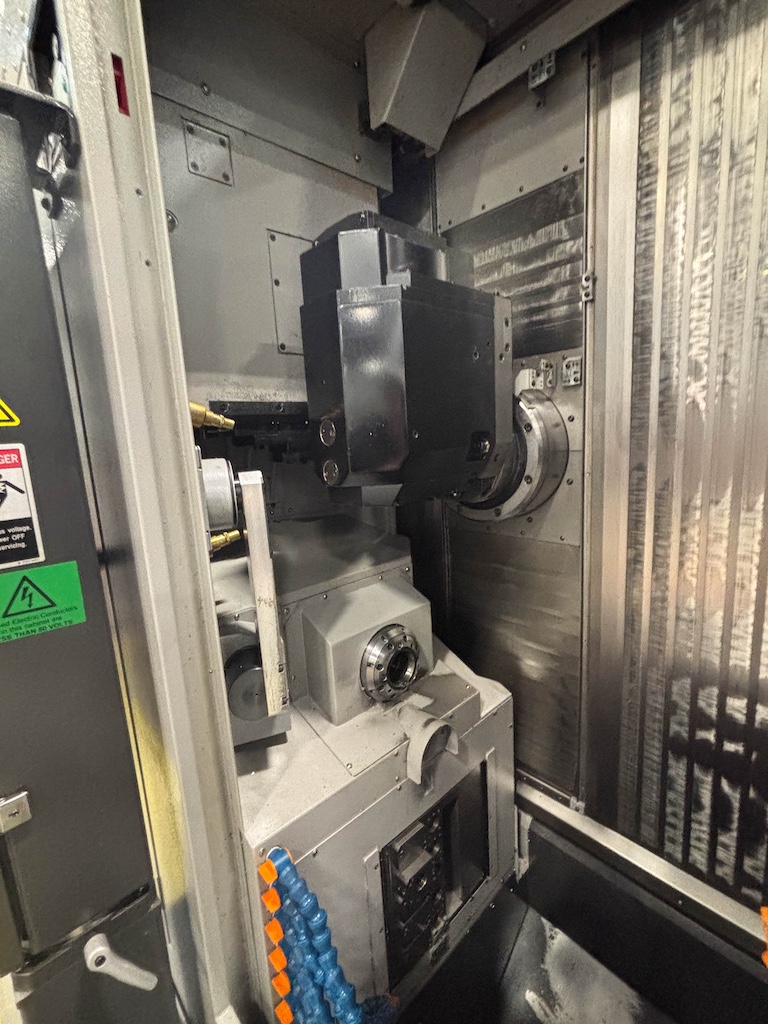

B-Axis Tool Spindle: 20,000 RPM
Tool Interface: CAPTO C4 (Dual Contact)
B-Axis Range: -15° to 195°
Tooling:
Total Tool Capacity: 50
ATC Magazine: 40

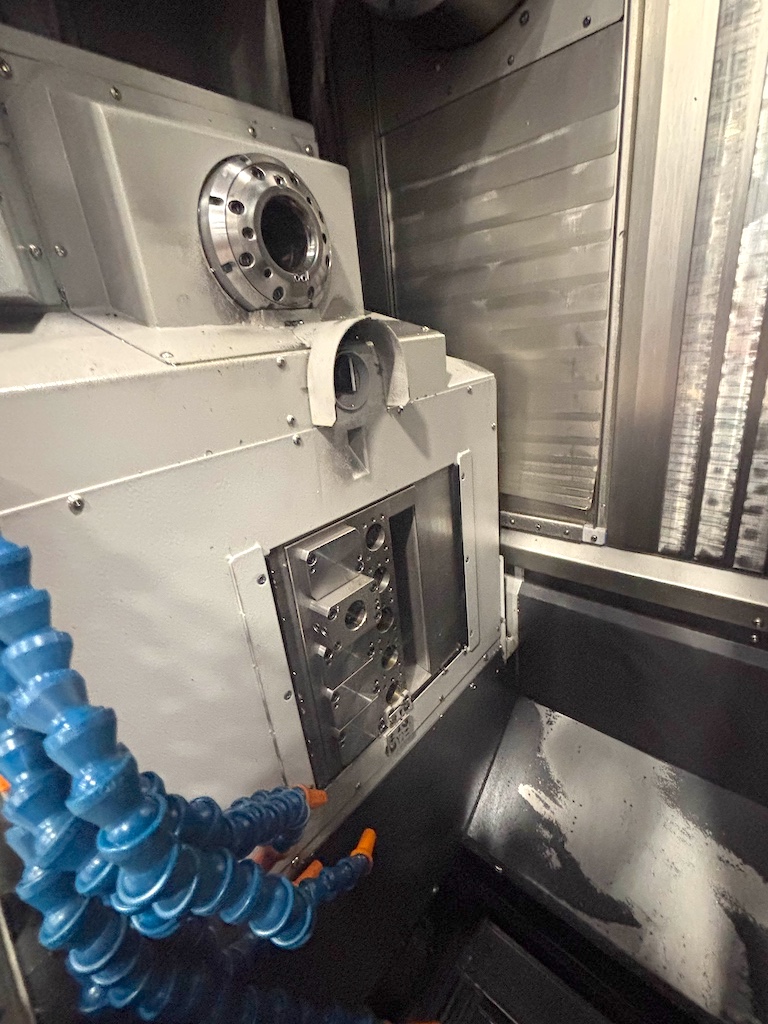

Back Tool Post: 10 Positions (5 Fixed / 5 Live Rotary)
Back Rotary Tool Speed: 6,000 RPM
Rapid Traverse: 32 m/min
Controls:

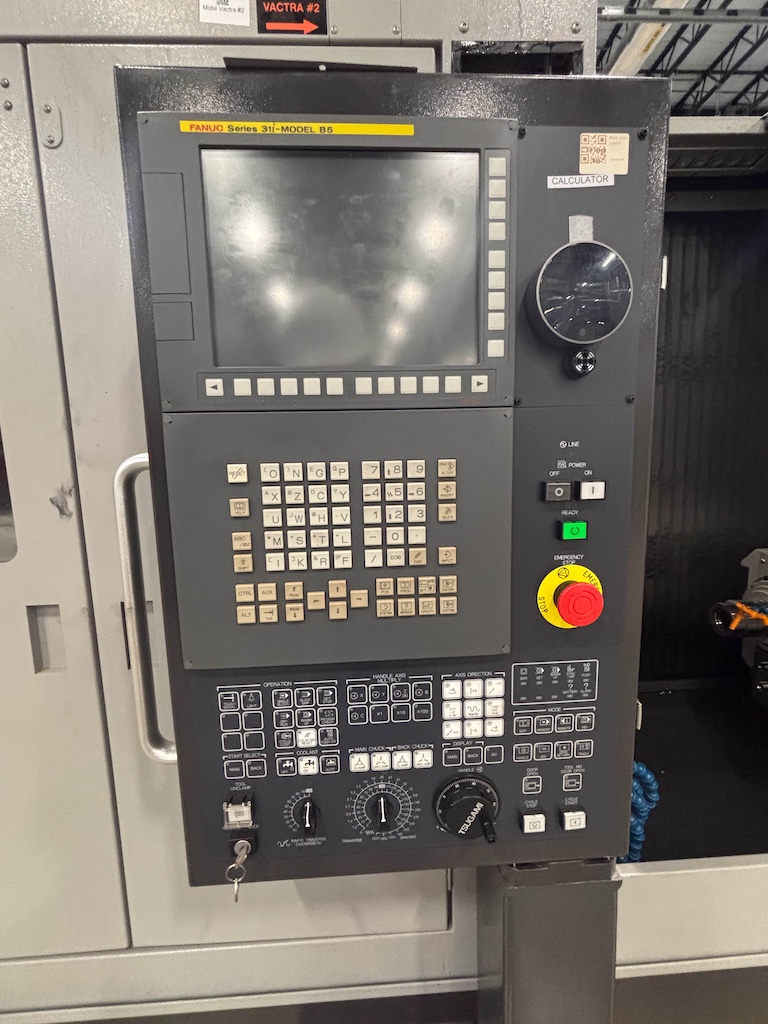

FANUC 31i-B5
Complete With:

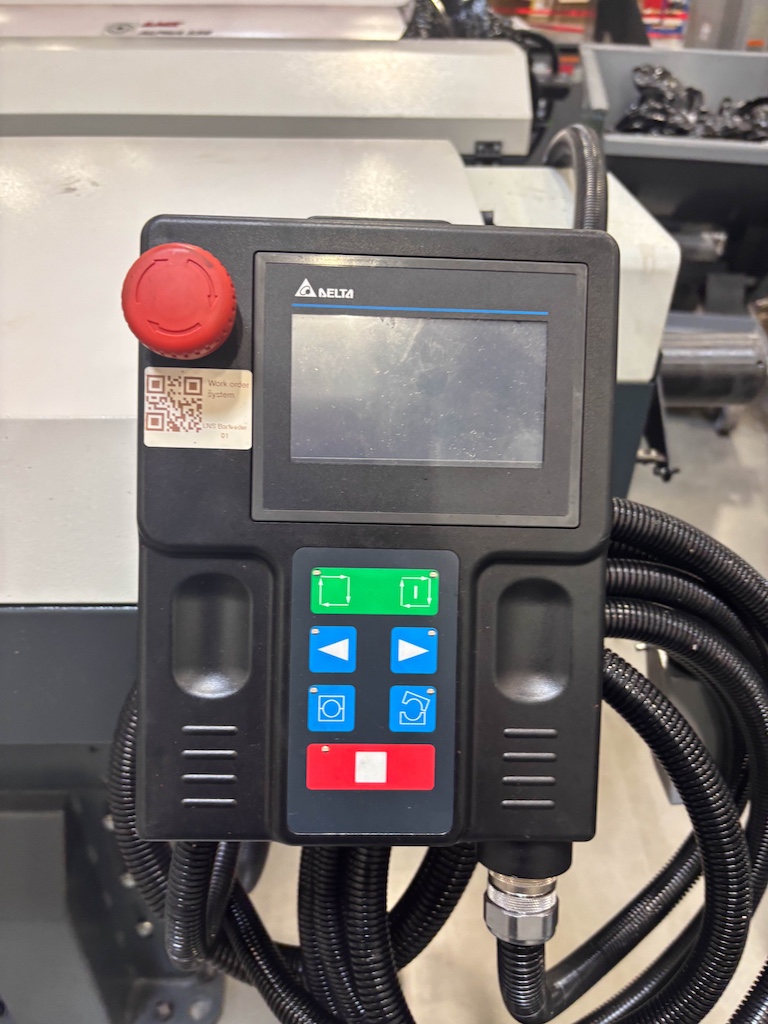

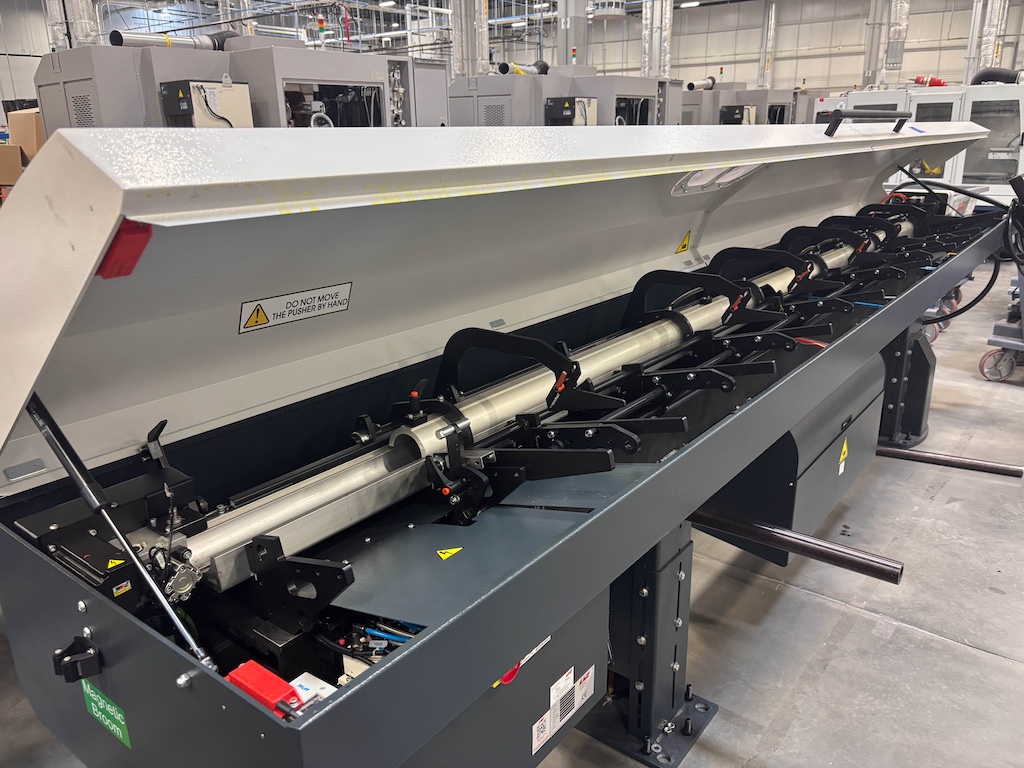

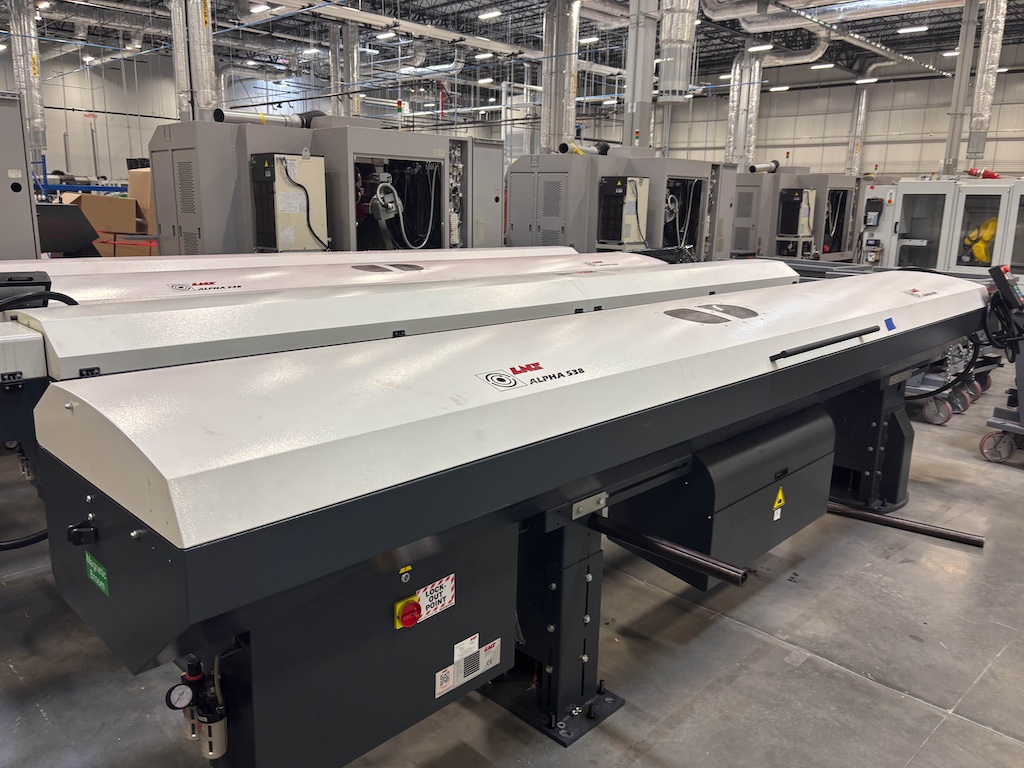

LNS Alpha 552 Barfeed
LNS Turbo SFcompact Chip Conveyor

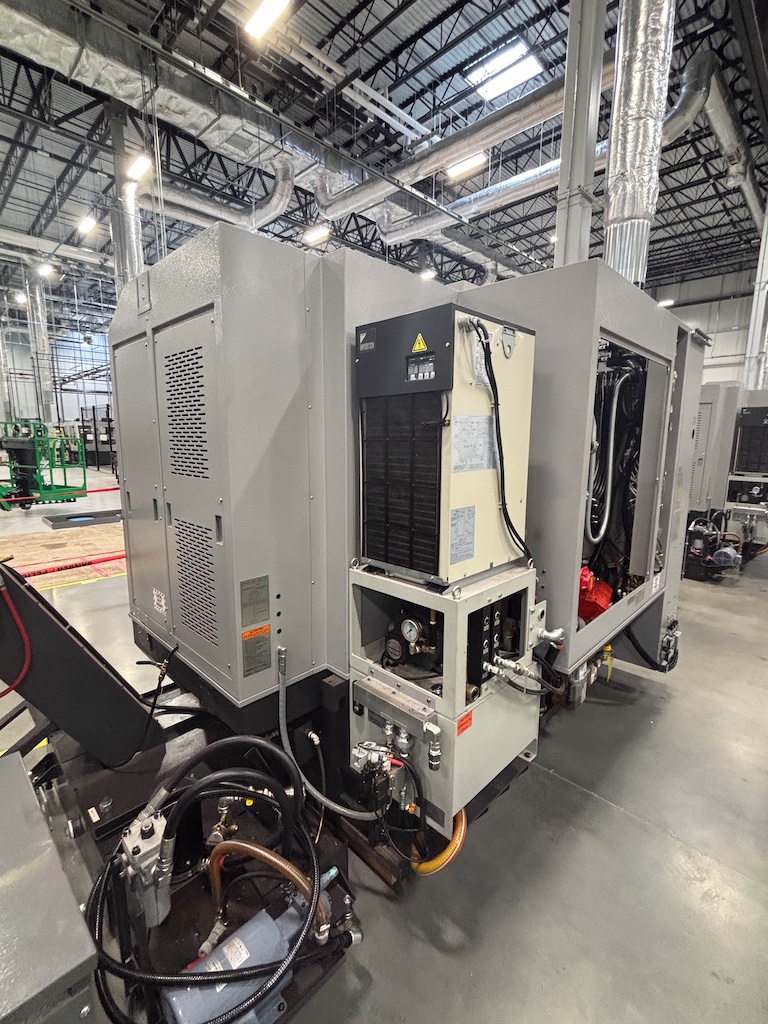

Daikin Oil Chiller
Why This Machine
This Tsugami SS38MH-5AX was sold by Meadoworks. We regularly source comparable Swiss-type automatic lathes through plant closings and surplus operations. Contact us to be notified when a similar unit becomes available, or request a valuation if you own one.
