Overview

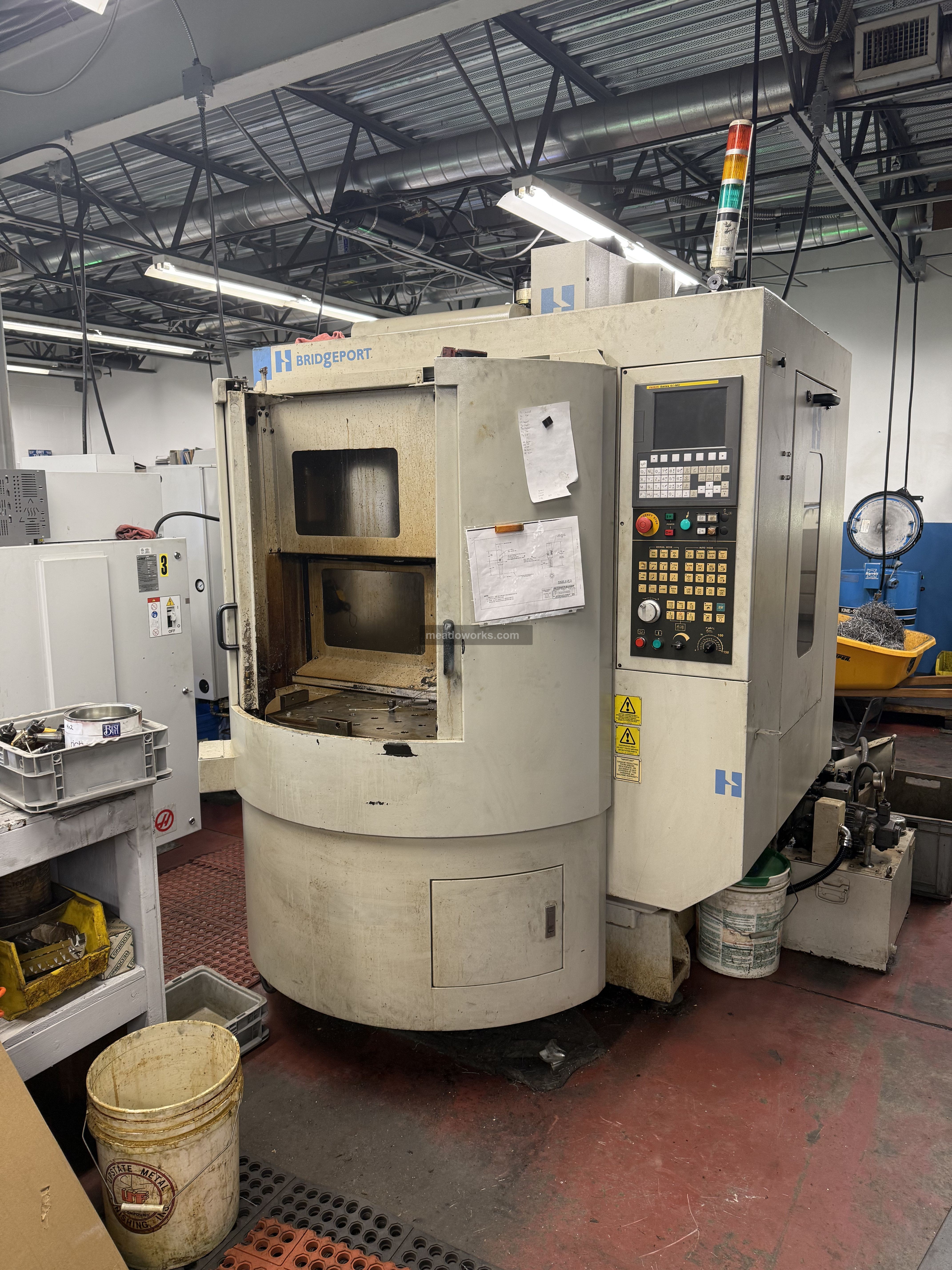

The machine was purchased new and has 27,281 hours of use, not counting idle time. The spindle was rebuilt approximately 10 years ago and the Z-axis lead screw was replaced approximately 12 years ago. The three-spindle 4th axis was purchased new with the machine, and the original manuals go with it.

Specifications

Item Number6323
BrandHardinge
ModelGX480DTAPC
Year2005
TypeVertical Machining Center
LocationUSA
Table Size23.6" x 15.8"
X Travel19
Y Travel16
Z Travel17
Atc20-station swing arm
Spindle RPM15000
Taper30BT

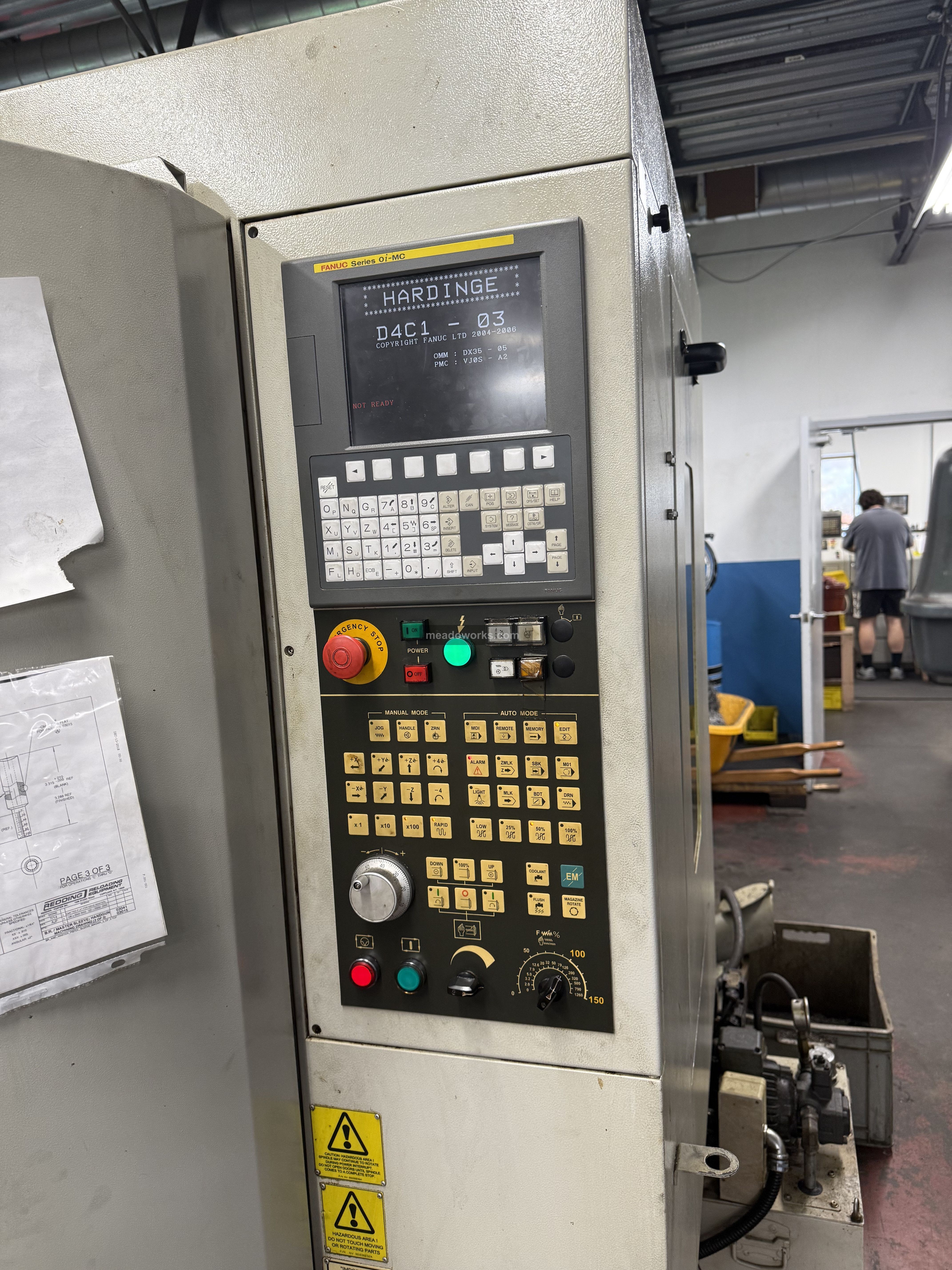

ControlFANUC 0i-MC
Voltage220

Features & additional specifications

X/Y/Z travels: 19 x 16 x 17 in (480 x 400 x 430 mm). Table working surface 23.6 x 15.8 in (600 x 400 mm); table load capacity 661 lbs. Rapid rate 1,417 IPM (36 m/min); feed rate range 0.1–590 IPM. Maximum tool diameter (adjacent pockets empty): 5.9 in (150 mm); maximum tool length: 7.48 in (190 mm); maximum tool weight: 15.7 lbs (7 kg). Includes three-spindle 4th axis with 5C air-actuated collets (original to machine), new unused pallet changer gearbox, and 25 assorted tool holders including some chucks. High-speed machining, rigid tapping, and tool length compensation are standard.
