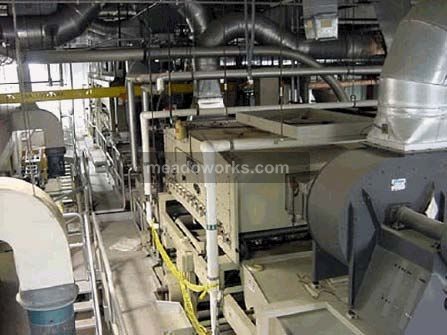

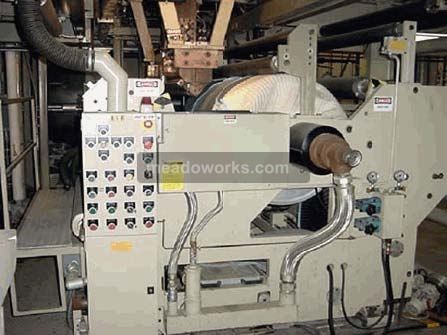

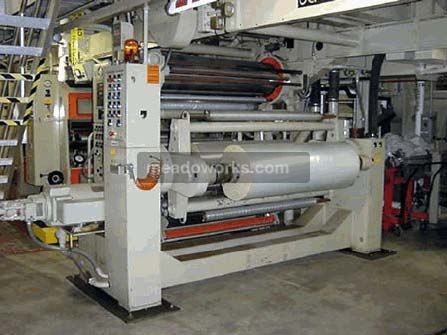

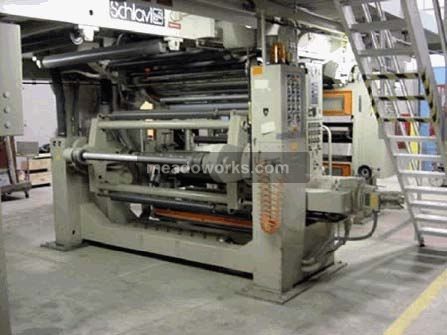

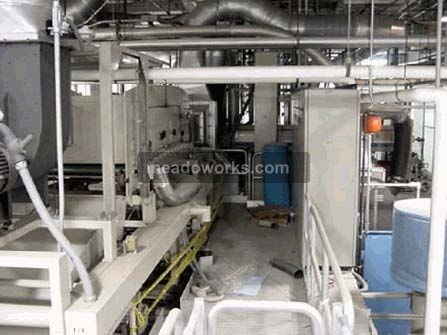

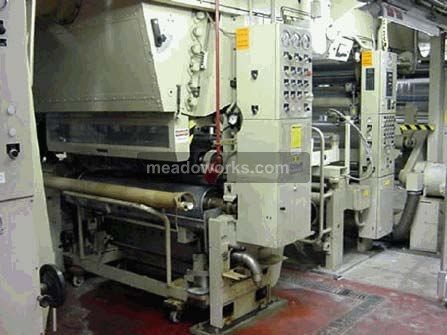

1992 Schiavi 5-Layer CO-Extrusion Laminator
SOLD| Item Number | 1664 |
| Brand | Schiavi |
| Model | 5-Layer CO-Extrusion Laminator |
| Year | 1992 |
| Location | USA |
| Extruders | NRM |
| Rewind | Turret |
| Rew Maximum Diameter | 800 mm (31 in) |
| Web Width | 1300 mm (51 in) |
| Unw Maximum Diameter | 800 mm (31 in) |
| Primary Unwind | Turret |
| Dryer Type | Driven Arch |
| Drive System | DC Drive |
| Voltage | 480 |
Additional Specifications
Speed: 100 MPM (328 FPM) Used Schiavi Extrusion Coater Laminator equipped with 800mm diameter primary turret unwind (150mm cores, tension control), single-sided Enercon corona treater, 2-roll heated roll section (oil, 70 - 400 degrees F), 800mm maximum diameter secondary unwind (6" cores, tension control), single-sided Enercon corona treater, 2-roll heated roll section, 3.5" NRM extruder (100HP motor), space for two (2) additional satelite extruders, 5-layer Cloeren feedblock with ACBCA selector plug, 1400mm Cloeren die (single cavity, 320mm deckles each side, 5 heat zones), laminating section, 800mm diameter polished-chrome chill roll, 800mm diameter turret rewind (76mm cores, 150mm cores if not using secondary unwind). Also capable of operating as an adhesive coater laminator, equipped with primer/precoat station (gravure only), single zone 5' driven arch oven (oil-heated forced air, 150 - 300 degrees F), primary coating station for rotogravure or kiss coating, 2-zone 10m driven arch oven (oil-heated forced air, 150 - 300 degrees F), oil-heated combining nip; operator control center and DC drive system. Spare coating rolls
Why This Machine
This Schiavi 5-Layer CO-Extrusion Laminator Extrusion Laminators is available for immediate purchase from Meadoworks, backed by our 50+ years of industry expertise and global logistics support. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
Speed: 100 MPM (328 FPM) Used Schiavi Extrusion Coater Laminator equipped with 800mm diameter primary turret unwind (150mm cores, tension control), single-sided Enercon corona treater, 2-roll heated roll section (oil, 70 - 400 degrees F), 800mm maximum diameter secondary unwind (6" cores, tension control), single-sided Enercon corona treater, 2-roll heated roll section, 3.5" NRM extruder (100HP motor), space for two (2) additional satelite extruders, 5-layer Cloeren feedblock with ACBCA selector plug, 1400mm Cloeren die (single cavity, 320mm deckles each side, 5 heat zones), laminating section, 800mm diameter polished-chrome chill roll, 800mm diameter turret rewind (76mm cores, 150mm cores if not using secondary unwind). Also capable of operating as an adhesive coater laminator, equipped with primer/precoat station (gravure only), single zone 5' driven arch oven (oil-heated forced air, 150 - 300 degrees F), primary coating station for rotogravure or kiss coating, 2-zone 10m driven arch oven (oil-heated forced air, 150 - 300 degrees F), oil-heated combining nip; operator control center and DC drive system. Spare coating rolls
