1979 Ikeda RM-1575 Radial Arm Drill

Why This Machine

Ikeda is one of the most recognized names in CNC machining. This RM-1575 offers proven reliability backed by strong parts availability and service support networks. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.

Description

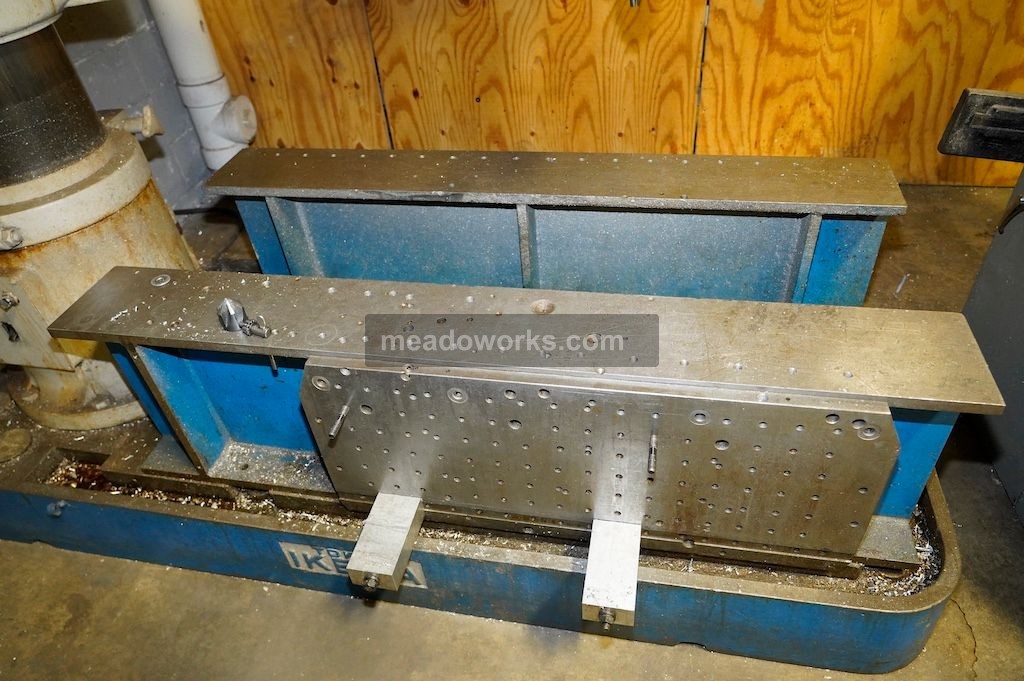

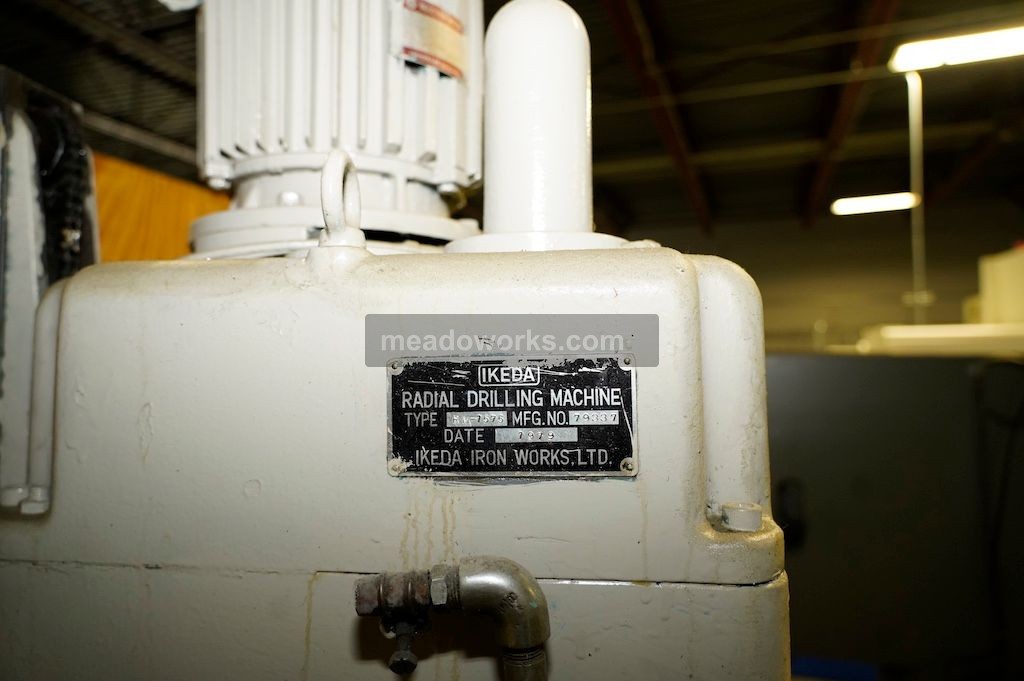

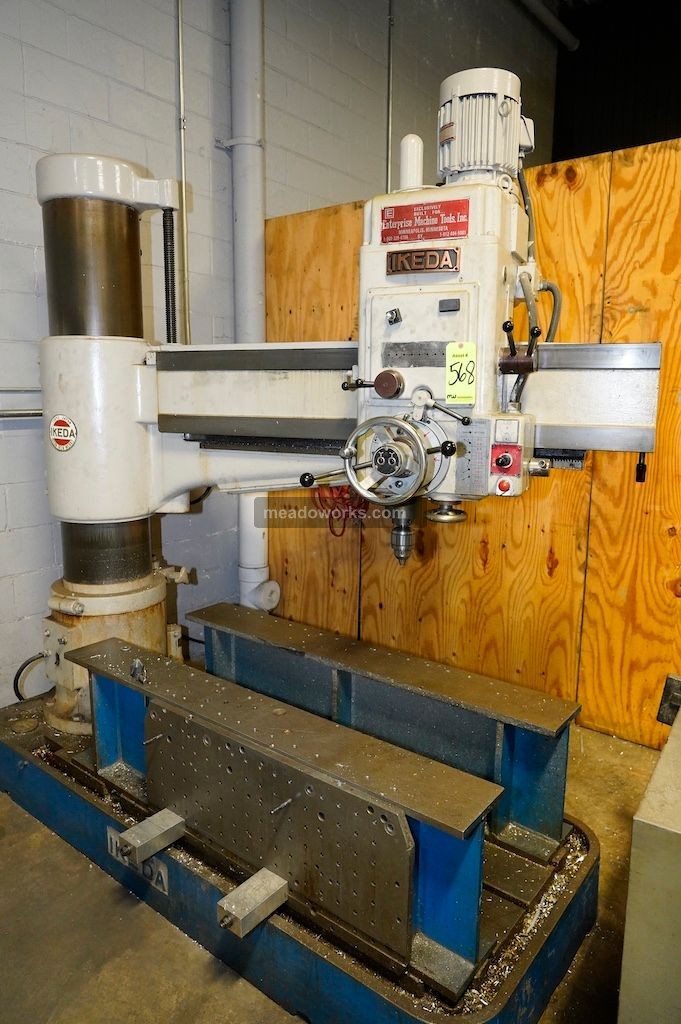

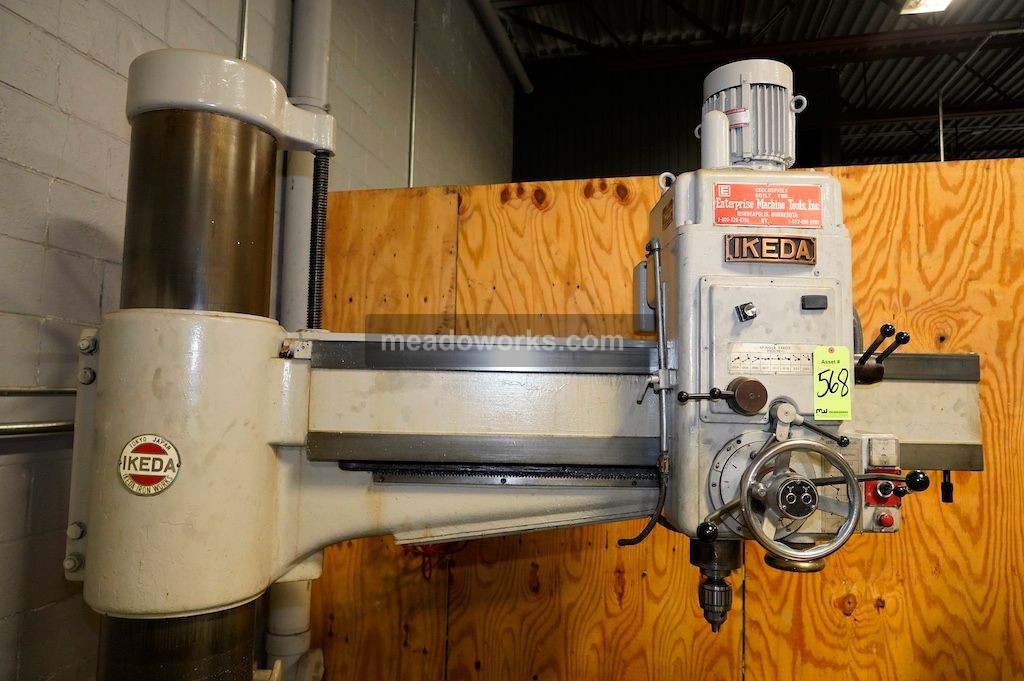

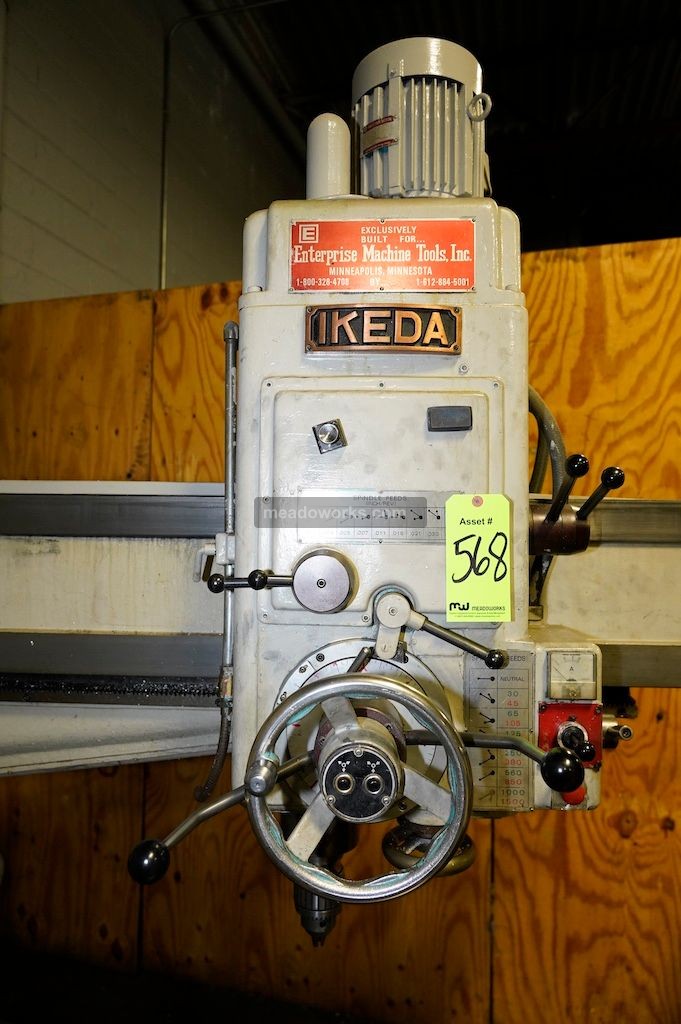

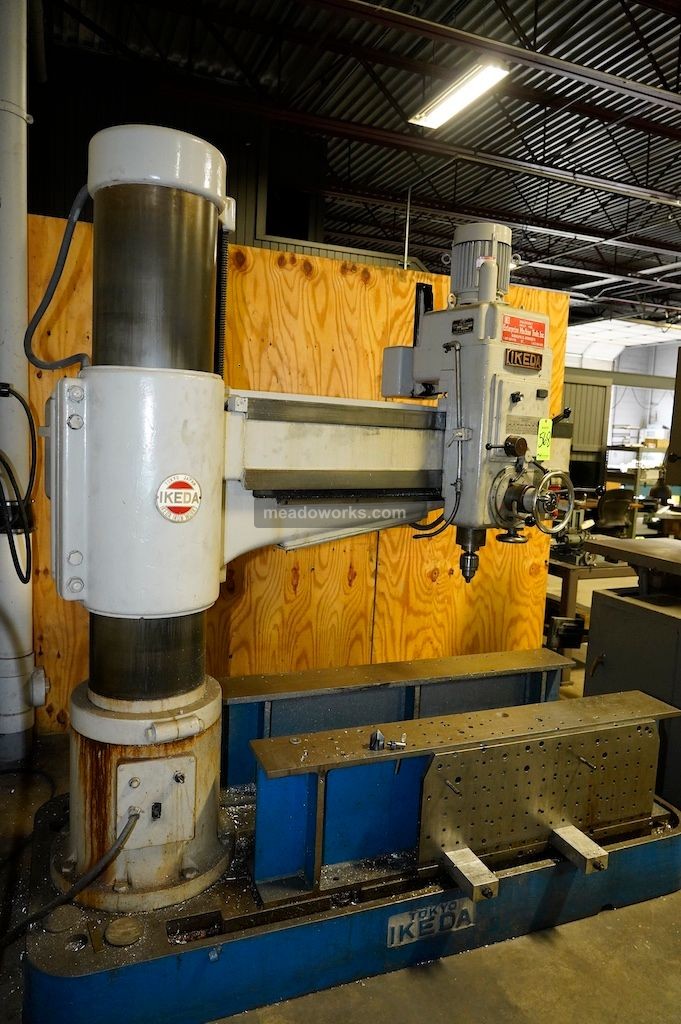

Ikeda RM-1575 Radial Arm Drill Press, Max Spindle to Column Distance 60 1/2'', Arm Length 5 ft, Minimum Spindle to Column Distance 10'', Column Diameter 13 5/8'', Max Spindle to Base Distance 54 1/2'', Minimum Spindle to Base Distance 12 1/2'', Spindle Travel / Stroke 13 5/8'' to 14 1/2'', Spindle Taper #5 Morse Taper, Spindle Speed 12 Speeds, 30-1500 RPM, Feed Rates 9 Feeds, 0.003 - 0.040 IPR, Drilling Capacity 2 1/2'', Tapping Capacity 2'', Machine Weight Approx. 9,650 Lbs., 96'' x 79'' x 96'' Tall, New in 1979, S/N: 79337 Located in Auburn Hills, MI.

Common Applications

• • Aerospace components
• • Mold & die making
• • Medical implants & instruments
• • Automotive precision parts
• • Job shop production
