This machine has been sold. Looking for a similar Amada Punches, Turret, CNC? Tell us what you need and we'll find it.

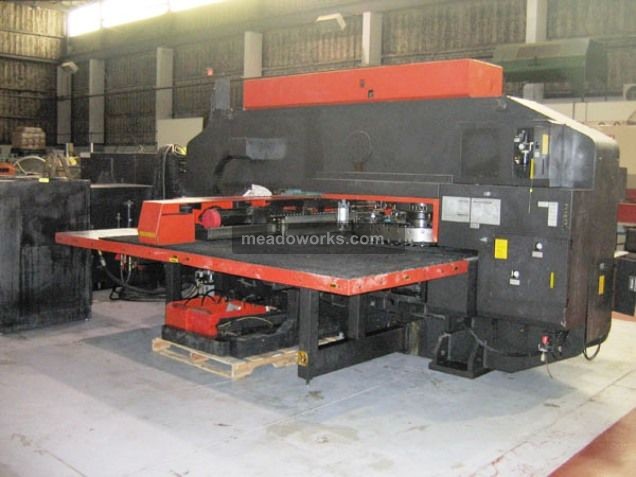

1996 Amada VIPROS 358 King Turret Punch Press
SOLD| Item Number | 1248 |
| Brand | Amada |
| Model | VIPROS 358 King Turret Punch Press |
| Year | 1996 |
| Location | USA |
| Tonnage | 33 |
| Capacity | Maximum Material Thickness: .250" (Mild Steel); .187" (Stainless) |

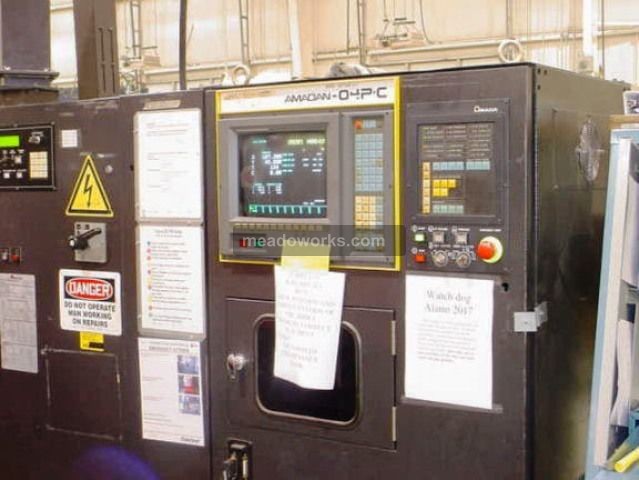

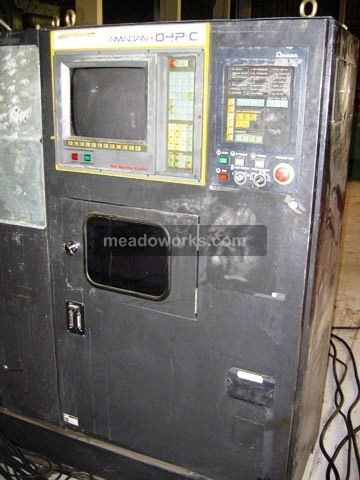

| Control | Fanuc Model 04PC CNC Control |
| Length | 165 |
| Width | 185 |
| Height | 102 |
| Weight | 40000 |
Additional Specifications
Maximum Traverse: 50" x 78.7" Throat Depth: 52" Maximum Sheet Weight: 220 Lbs. Turret Configuration: 58 Stations (Thick) (36) 1/2" Diameter; (12) 1-1/4" Diameter; (4) 2" Diameter; (2) 3-1/2" Diameter; (2) Auto-Index 4-1/2" Diameter (2) Auto-Index (1-1/4") Turret Speed: 30 RPM (Bi-Directional) Maximum Feed Speed (X & Y Axes): 1968 IPM Maximum Hit Rate (@ 1" Increment): 326 HPM Maximum Hit Rate: 1230 HPM Maximum Ram Stroke: 1.57" Equipped With: Hydraulic Ram Positioning System; Hydraulic Oil Chiller Unit (4) Auto-Index Stations; Hydraulic Workpiece Clamping Automatic Repositioning; Overload Protection Hydraulic Clutch and Brake; Air Blow Tooling AC Main (Pump) Drive Motor; (4) AC Servo Motor Drives
Why This Machine
Amada is one of the most recognized names in CNC machining. This VIPROS 358 King Turret Punch Press offers proven reliability backed by strong parts availability and service support networks. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
Maximum Traverse: 50" x 78.7" Throat Depth: 52" Maximum Sheet Weight: 220 Lbs. Turret Configuration: 58 Stations (Thick) (36) 1/2" Diameter; (12) 1-1/4" Diameter; (4) 2" Diameter; (2) 3-1/2" Diameter; (2) Auto-Index 4-1/2" Diameter (2) Auto-Index (1-1/4") Turret Speed: 30 RPM (Bi-Directional) Maximum Feed Speed (X & Y Axes): 1968 IPM Maximum Hit Rate (@ 1" Increment): 326 HPM Maximum Hit Rate: 1230 HPM Maximum Ram Stroke: 1.57" Equipped With: Hydraulic Ram Positioning System; Hydraulic Oil Chiller Unit (4) Auto-Index Stations; Hydraulic Workpiece Clamping Automatic Repositioning; Overload Protection Hydraulic Clutch and Brake; Air Blow Tooling AC Main (Pump) Drive Motor; (4) AC Servo Motor Drives
Common Applications
- • Aerospace components
- • Mold & die making
- • Medical implants & instruments
- • Automotive precision parts
- • Job shop production
