SOLD

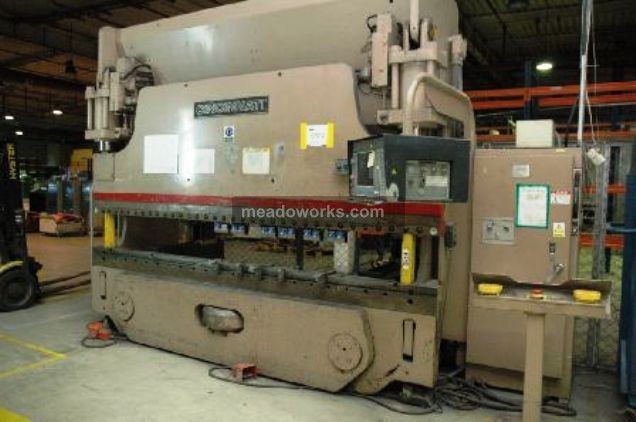

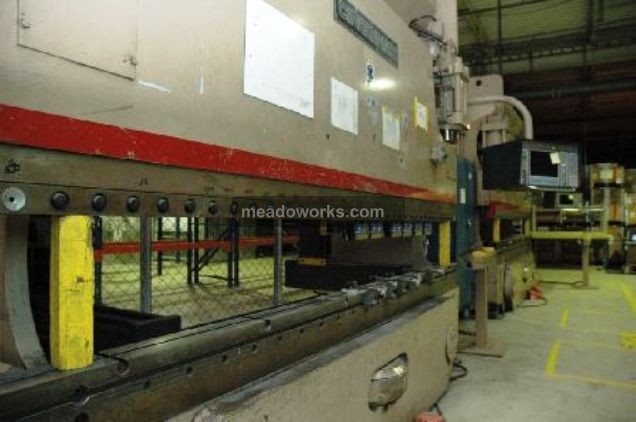

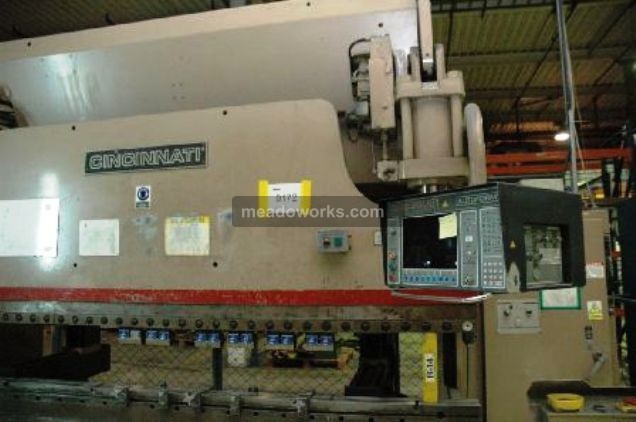

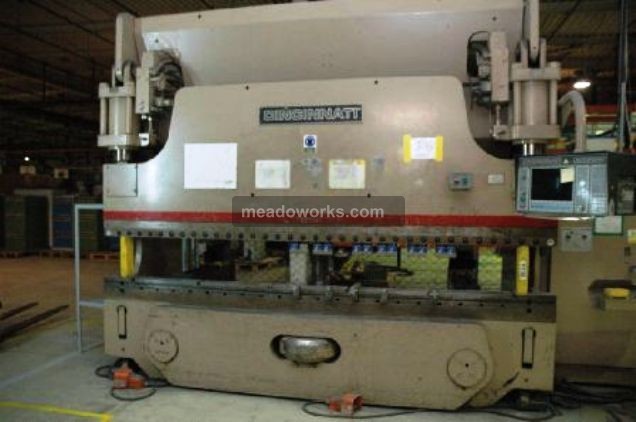

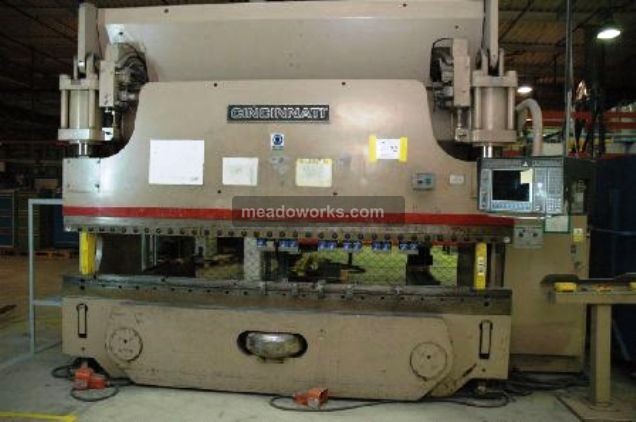

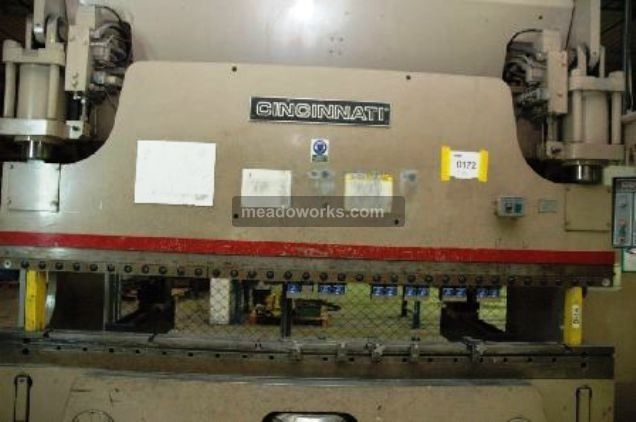

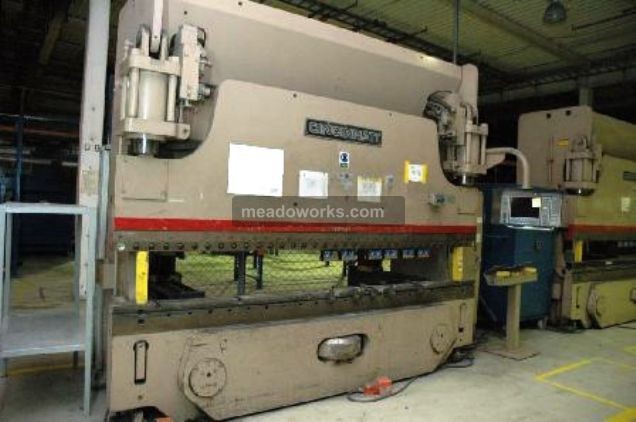

1995 Cincinnati 175AF10 CNC Hydraulic Brake

SOLD

Item Number	1237
Brand	Cincinnati
Model	175AF10 CNC Hydraulic Brake
Year	1995
Location	USA
Tonnage	175
Length	180
Width	72
Height	136
Weight	26000

Additional Specifications

Stroke (Adjustable): 10" (Maximum) Open Height: 17" Closed Height: 7" Throat Depth: 8" Speeds: 260 IPM - High Approach 1 to 65 IPM (Variable) - Press 1 to 290 IPM (Variable) - Return 49 IPM - Max. Speed @ Full Tonnage Bed and Ram Machined for Removable Angle Brackets Full Length Dovetail Slots Across Bed Face Front & Rear Equipped With: Cincinnati Autoform 8-Axis CNC Control w/Color CRT Display Monitor (24") 6-Axis CNC Back Gauge Autocrown for Bed Deflection Compensation Hydraulic Sectional Ram Clamps Lower Die Rail 25 HP AC Main Drive (Pump) Motor Electrical Controls Dual Palm Buttons or Electric Foot Switch Operation BENDING CAPACITIES (MILD STEEL): 10' x 1/4"8' x 3/8"

Why This Machine

This Cincinnati 175AF10 CNC Hydraulic Brake was sold by Meadoworks. We regularly source comparable press brakes through plant closings and surplus operations. Contact us to be notified when a similar unit becomes available, or request a valuation if you own one.
