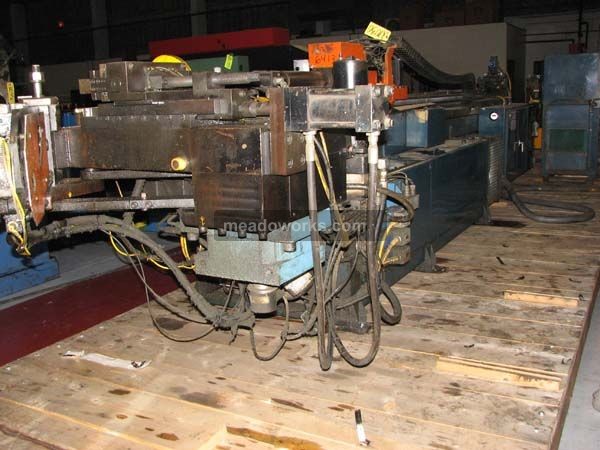

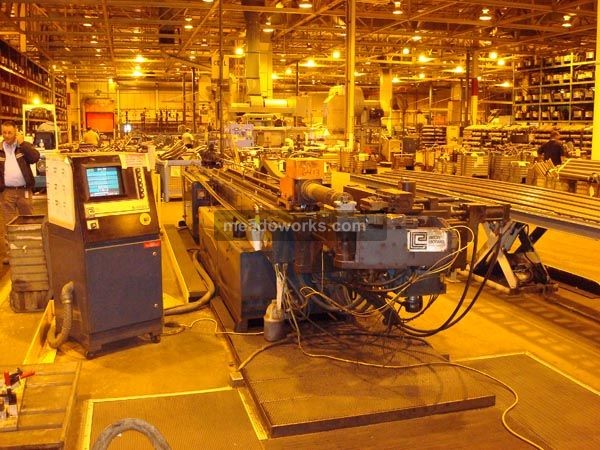

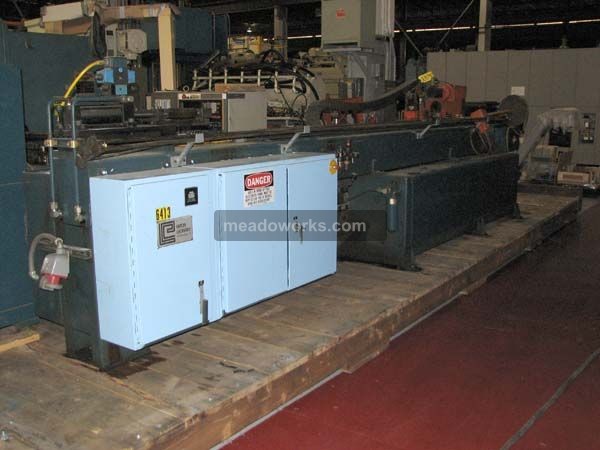

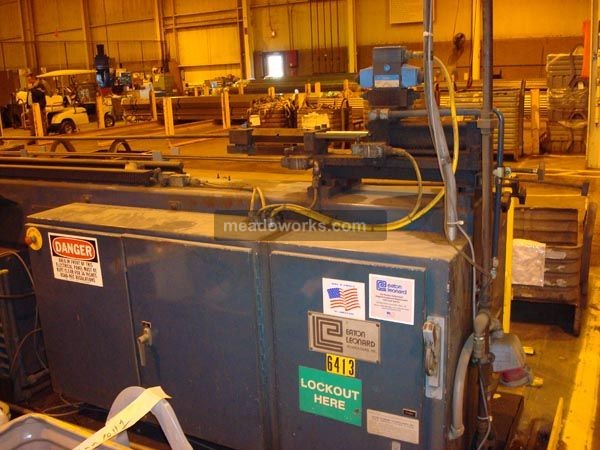

1988 Eaton Leonard VB 200HP CNC Rotary Tube Bender
SOLD| Item Number | 1232 |
| Brand | Eaton Leonard |
| Model | VB 200HP CNC Rotary Tube Bender |
| Year | 1988 |
| Location | USA |
| Capacity | 2" O.D. Tube x .145" wall (mild steel) |
| Arm Swing | 195 degrees |
| Vert Or Horiz Clamp | Horizontal |

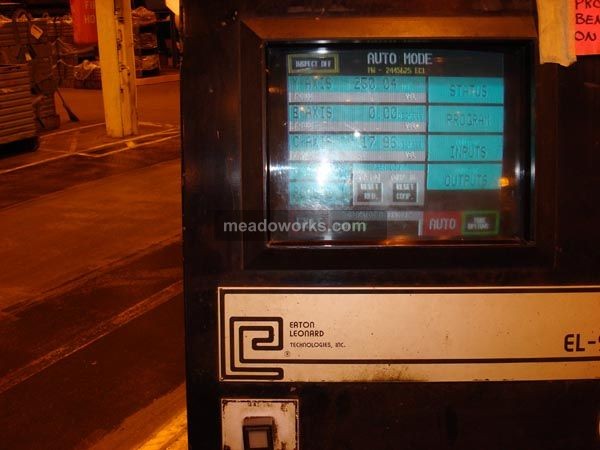

| Control | Touch Screen 3-Axis Programmable CNC Control |
| Length | 275 |
| Width | 70 |
| Height | 58 |
| Weight | 15000 |
Additional Specifications

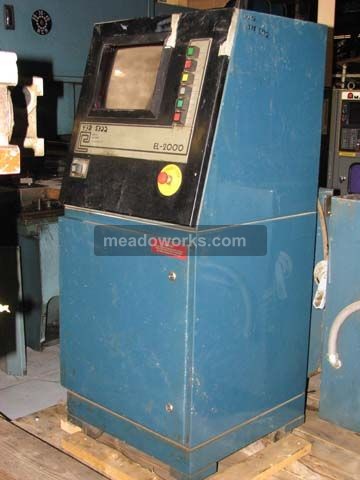

Maximum Centerline Radius: 8" Maximum Tube Length to Tangent: 16' Maximum POB Degrees: Unlimited Speeds: 30 RPM - Degree of Bend 65 RPM - Plane of Bend 3000 IPM - Distance Between Bends Distance From Floor to Centerline of Bending Form: 47" Clockwise Rotation Production Capacity: 1200 Bends/Hour Equipped With: EL2000 3-Axis CNC Control Motorized Carriage for Plane of Bend & Distance Between Bend Stops Drop-Away Clamp Die Holder; Boost Cylinder Direct Acting Pressure Die Holder; Pressure Die Assist Air Cooled Heat Exchanger Swinging Arm Safety Device AC Main (Pump) Motor; Electrical Controls Operator Control Console (Separate Free Standing) Automatic Lubrication System
Why This Machine
This Eaton Leonard VB 200HP CNC Rotary Tube Bender is ready for production sheet metal fabrication. Eaton Leonard equipment is known for build quality and strong resale values in the used market. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
Maximum Centerline Radius: 8" Maximum Tube Length to Tangent: 16' Maximum POB Degrees: Unlimited Speeds: 30 RPM - Degree of Bend 65 RPM - Plane of Bend 3000 IPM - Distance Between Bends Distance From Floor to Centerline of Bending Form: 47" Clockwise Rotation Production Capacity: 1200 Bends/Hour Equipped With: EL2000 3-Axis CNC Control Motorized Carriage for Plane of Bend & Distance Between Bend Stops Drop-Away Clamp Die Holder; Boost Cylinder Direct Acting Pressure Die Holder; Pressure Die Assist Air Cooled Heat Exchanger Swinging Arm Safety Device AC Main (Pump) Motor; Electrical Controls Operator Control Console (Separate Free Standing) Automatic Lubrication System
Common Applications
- • Sheet metal fabrication
- • Structural steel cutting
- • HVAC ductwork
- • Architectural metalwork
- • Industrial enclosures
