Specifications
| Item Number | 1229 |
| Brand | Addison |

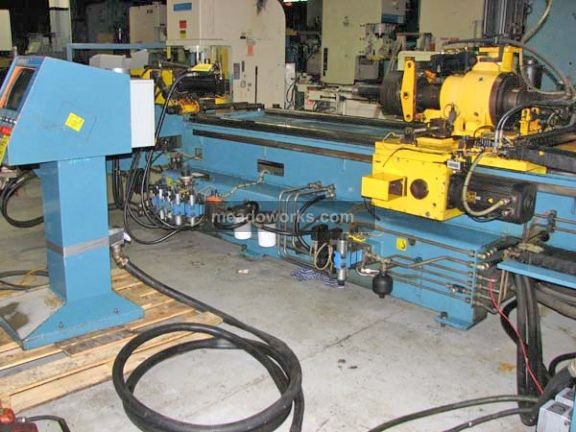

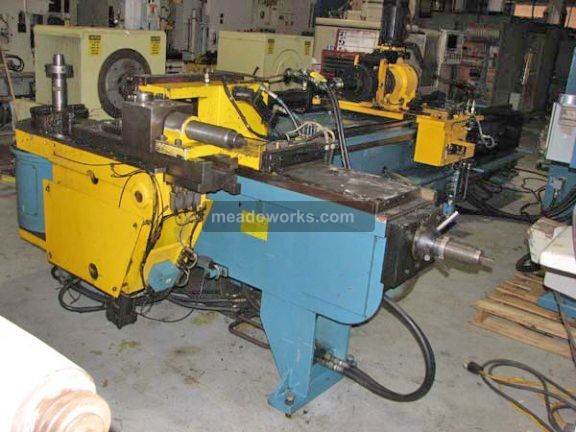

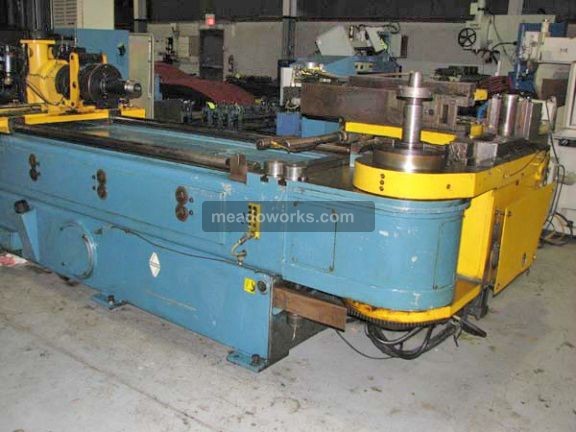

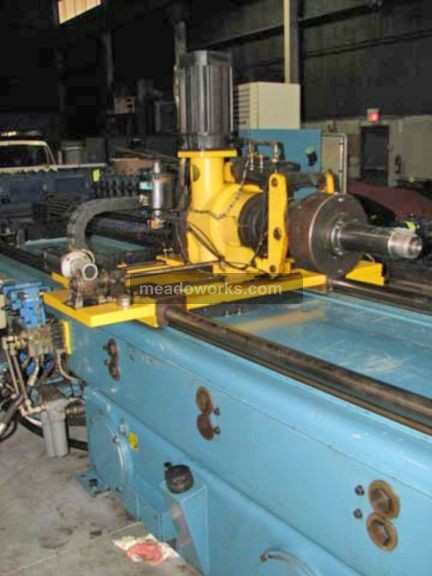

| Model | DB-120 CNC Hydraulic Tube Bender |
| Year | 1999 |
| Type | Pipe, Tube, And Bar Bender |
| Location | USA |
| Capacity | 4.5" O.D. Tube x .365" wall |
| Vert Or Horiz Clamp | Horizontal |

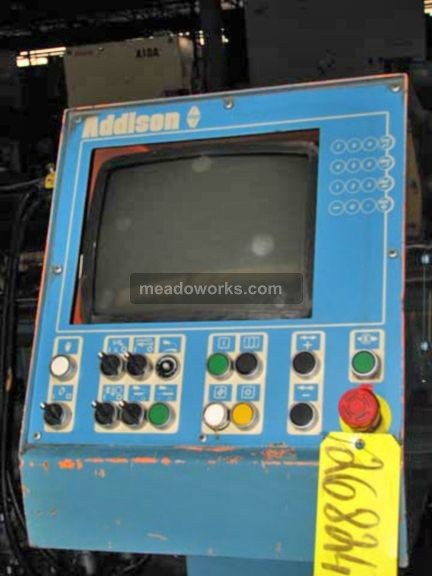

| Control | Touch Screen 3-Axis Programmable CNC Control |
| Weight | 17000 |
Features & additional specifications
Maximum Bend Radius 23.6" Minimum Centerline Radius 2" Maximum Tube Length Over Mandrel 157.6" Max. Degree of Bend (C-Axis) 0 - 193 Deg. Plane of Bend (B-Axis) 0 - 360 Deg. Follower Slide Stroke 29.78" Clamp Slide Stroke (Direct Acting) 9" Horizontal Shift (X-Axis) 23.62" Axis Speed (Y-Axis Feed) 1575 IPM Axis Speed (B-Axis Rotation) 20 RPM Axis Speed (C-Axis Bending) 3.5 RPM Axis Speed (X-Axis Radius) 394 IPM Approximate Shipping Weight 17,000 Lbs EQUIPPED WITH: Motorized Carriage for Plane of Bend>br> & Distance Between Bends Direct Acting Pressure Die Air Electric Oil Chiller Assorted Collets, I.D. and O.D.
