Used Gages & Measuring Instruments for Sale
See all 22 Inspection & Lab Equipment →
6 results
Lot 145

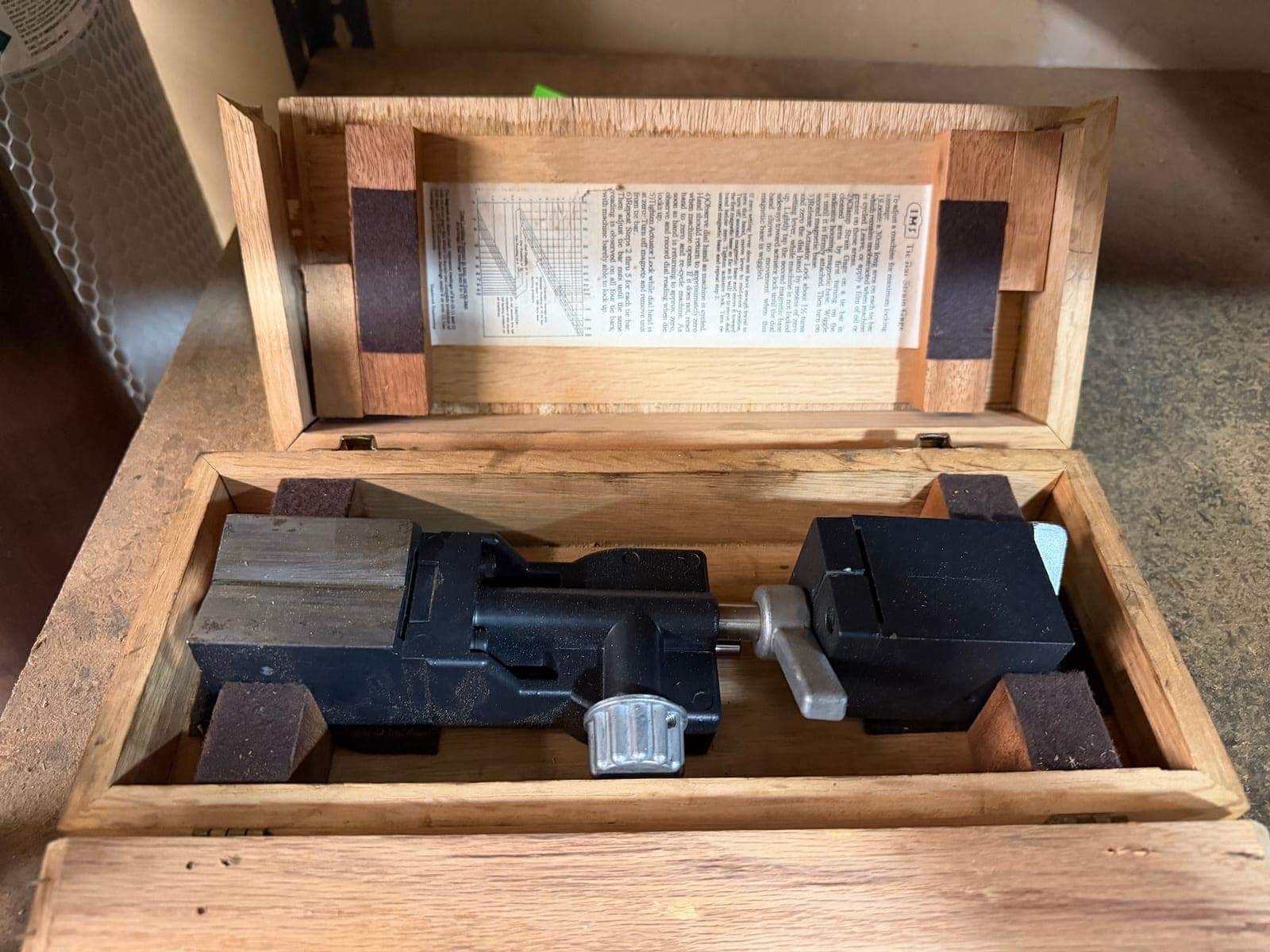

IMS Tie Bar Strain Gage in Wood Case
Naperville, IL
Live auction · Tue, Oct 27, 10:00 AM CT
Lot 72

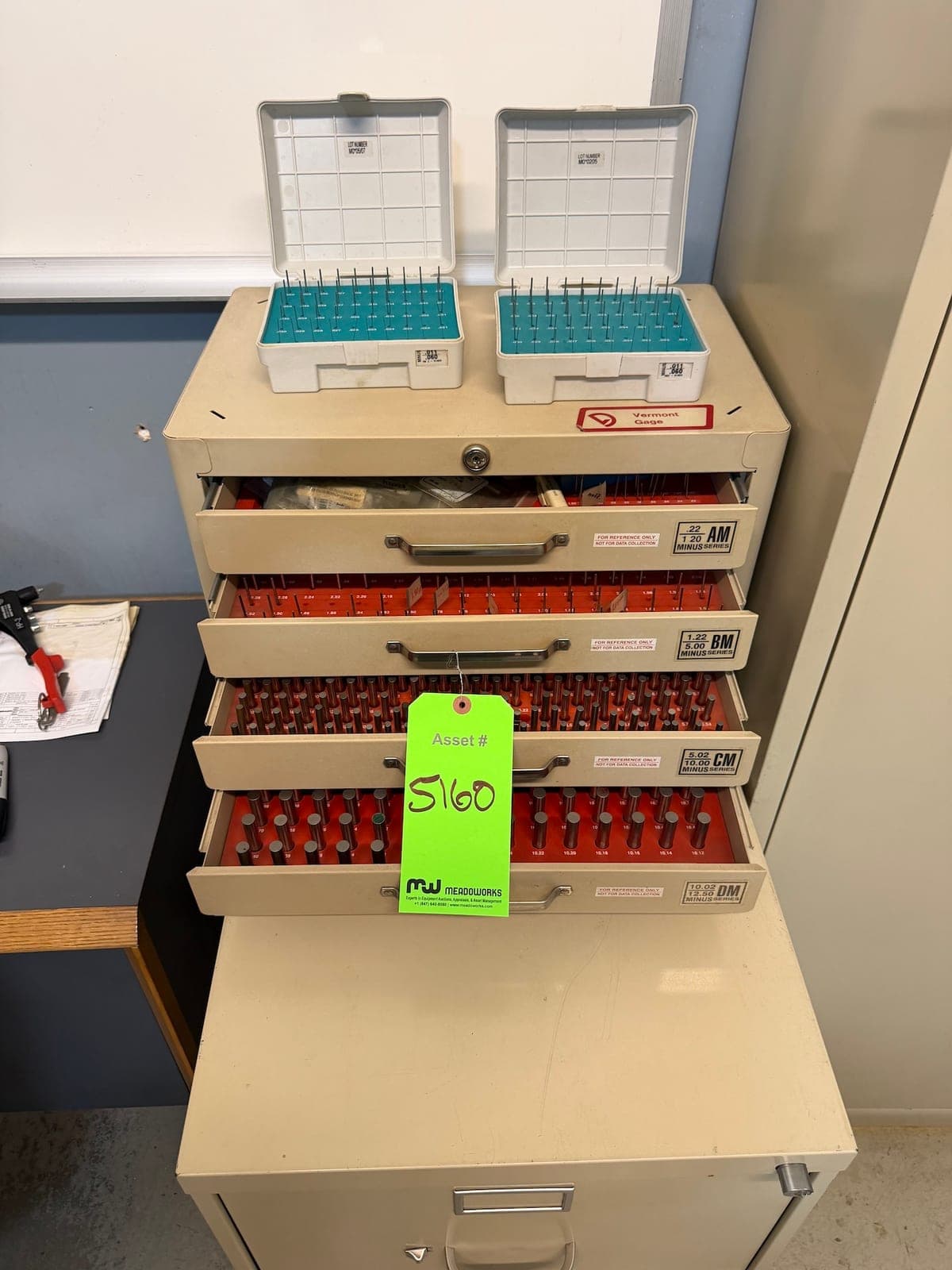

Vermont Gage Pin Gage Set w/4-Drawer Cabinet
Naperville, IL
Live auction · Tue, Oct 27, 10:00 AM CT
Lot 71

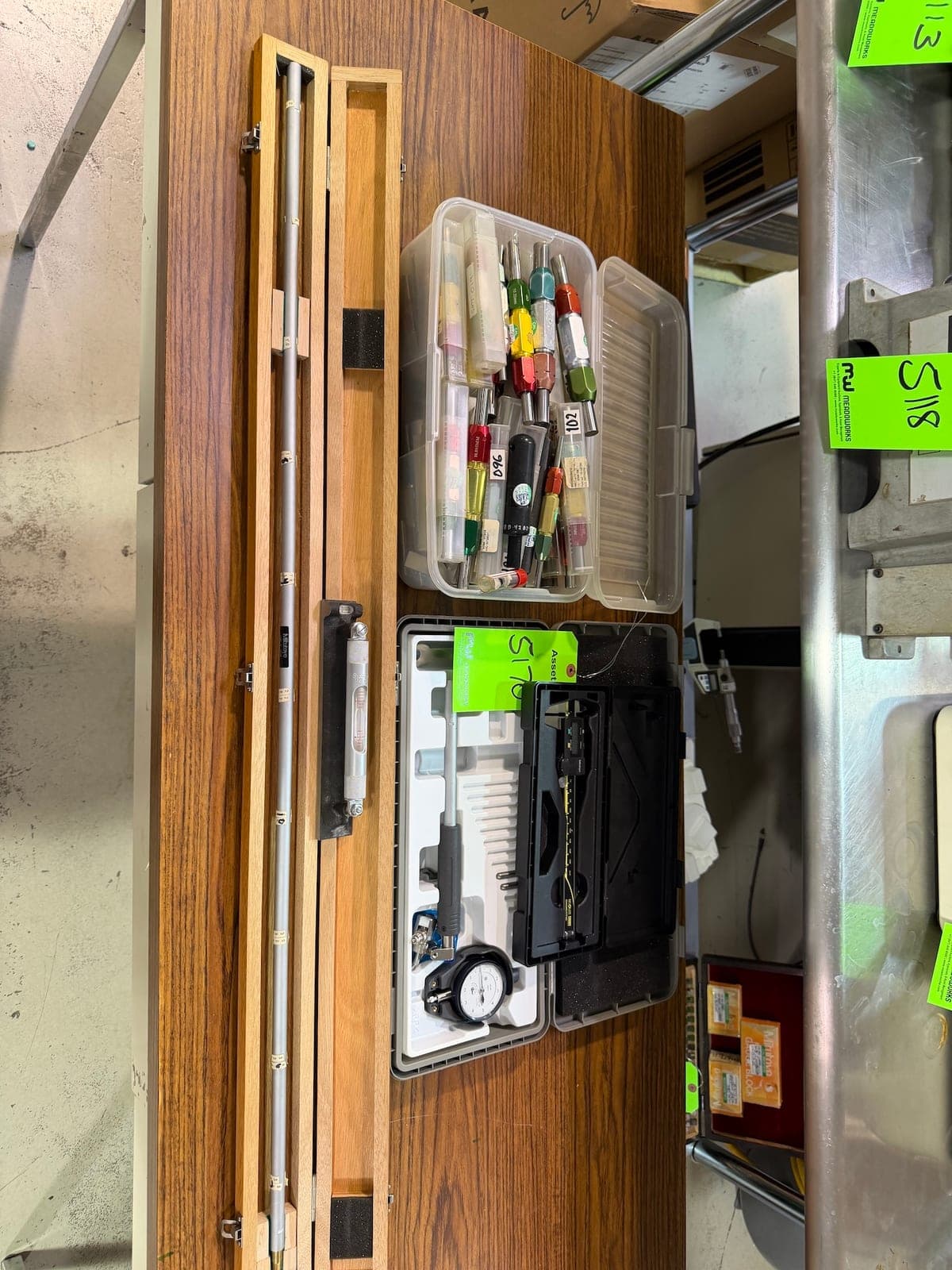

Mitutoyo Lot of Metrology
Naperville, IL
Live auction · Tue, Oct 27, 10:00 AM CT
Lot 58

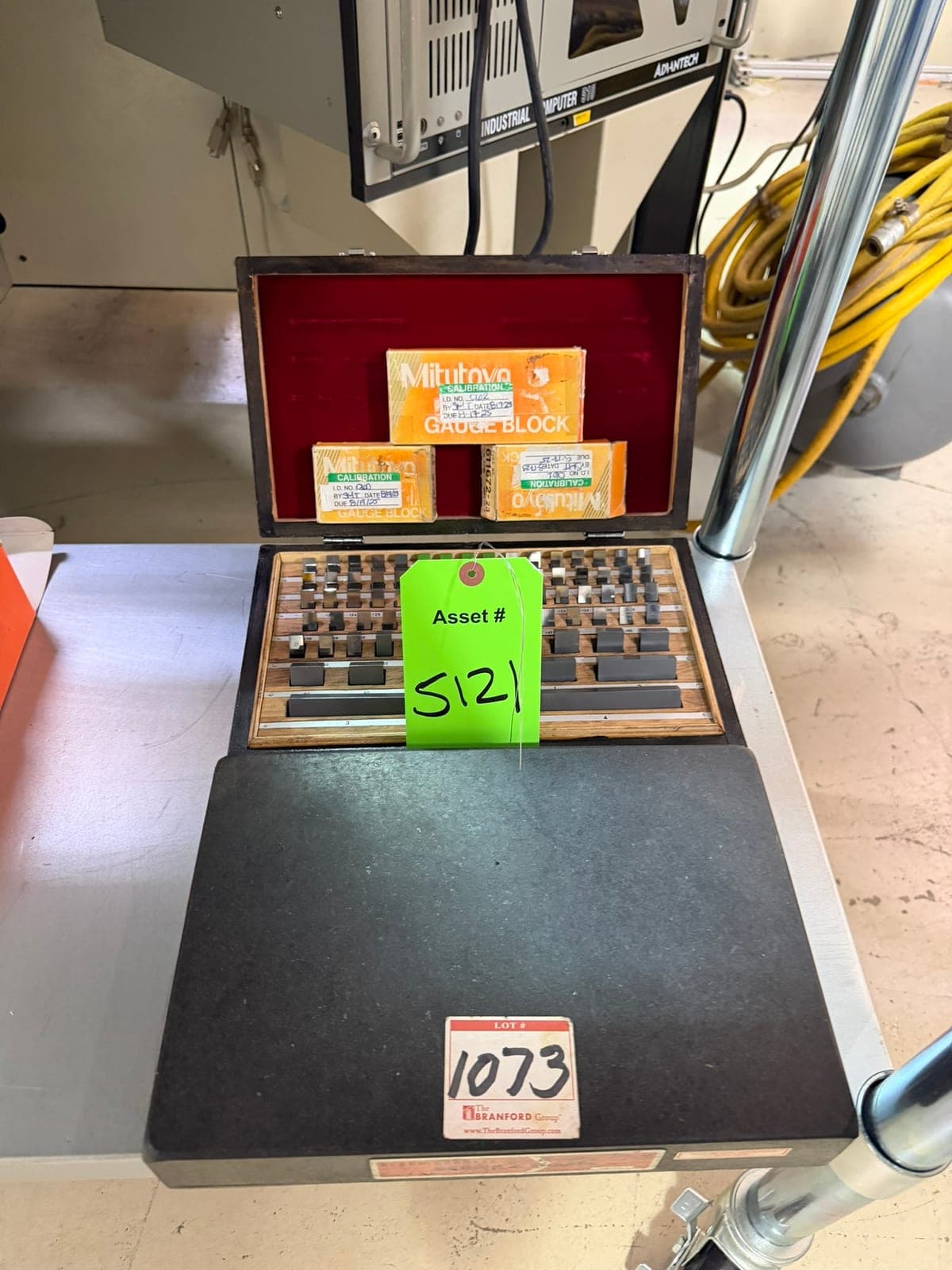

HDT / Brown & Sharpe Gauge Block Set w/Granite Surface Plate
Naperville, IL
Live auction · Tue, Oct 27, 10:00 AM CT
Lot 57

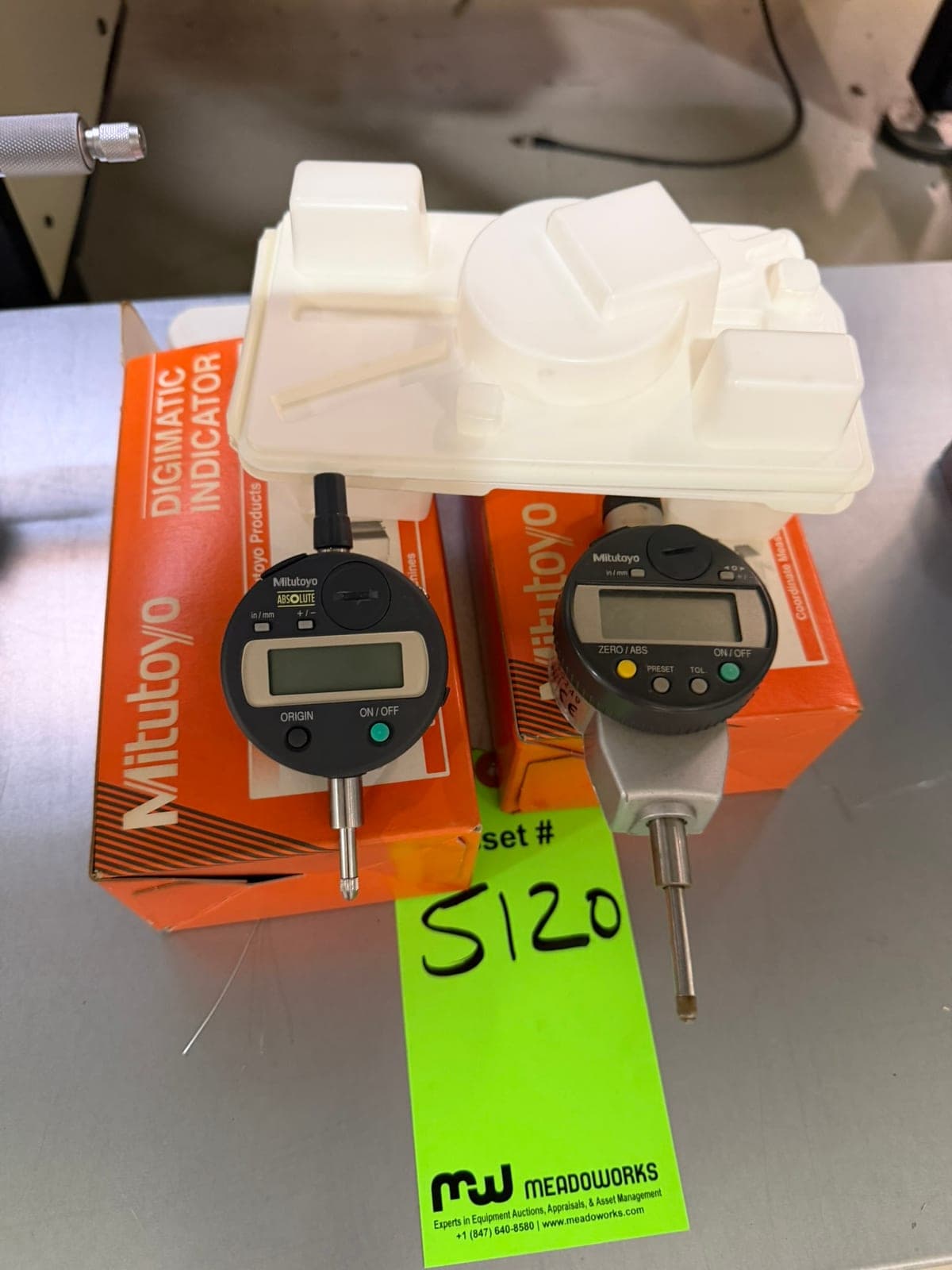

Mitutoyo Lot of (2) Digimatic Indicators
Naperville, IL
Live auction · Tue, Oct 27, 10:00 AM CT
Lot 54

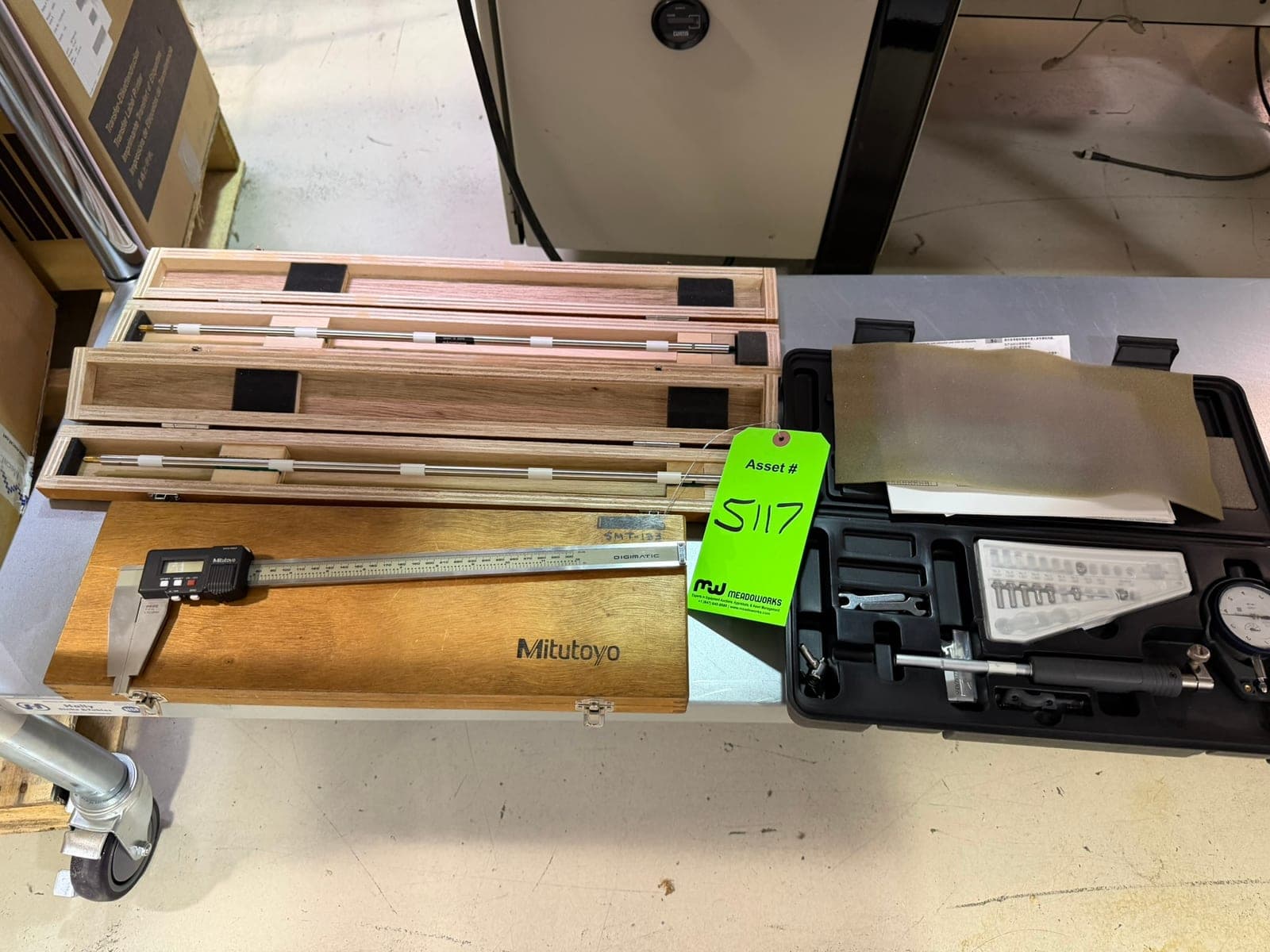

Mitutoyo Lot of Precision Measuring Tools
Naperville, IL
Live auction · Tue, Oct 27, 10:00 AM CT
Looking for Something Specific?
Most of our inventory sells before we can list it online. If you need a specific brand, model, or specification, tell us what you need—we have access to unlisted equipment and machines coming in from plant closures.
Looking to Sell?
Meadoworks is an active cash buyer of used industrial equipment. Get a free valuation from our AMEA-certified appraisers.
About Used Gages & Measuring Instruments
A pin gage is a steel pin of a known diameter, used to check a hole. Sets are the usual buy: a cabinet of pins in small steps, often 0.001 inch, across a range. Class ZZ is a common tolerance for shop pins. Plus, minus or bilateral tells you which way the pin is allowed to be off the marked size. Meyer and Mitutoyo are names that repeat on these sets. A single pin is a tool. A set is how a shop checks a range of holes without a bore gage for every size.
The range of the set has to cover the holes you inspect. A set that stops at 0.500 inch does not check a 0.625 inch bore. The step, 0.001 or 0.0005 inch, has to be finer than the tolerance you are holding. Go and no-go handles are a different presentation of the same idea: two pins, one that must enter and one that must not. A cabinet set and a handle set answer different habits. Missing pins are the condition. A set with gaps is a set that will not check the hole that landed on the missing size.
Finish, rust and a bent pin matter. A pin that is mushroomed or rusty is no longer the size etched on it. Certification, when a set has it, has a date. A certificate from ten years ago is a story, not a current size. Reference blocks and a dial or digital indicator sometimes ride in the same lot. They are comparison tools, not pins, and they need their own check against a standard.
A used pin gage set should be opened and counted. Look for empty slots, rust and bent pins. Read the class and the range on the lid. Do not assume every pin in a full-looking drawer is the size marked, if the drawer was refilled from somewhere else. Wipe one and mike it if you can. A pretty cabinet with a dozen pins missing is a partial set, and the missing sizes are the ones you will need.
How to Choose Used Gages & Measuring Instruments
How to Size a Pin Set
Start with the holes you check. The set has to cover that range, in the steps your drawings use. Then read the tolerance class and whether the pins are plus, minus or split around nominal. A class ZZ pin is a common shop choice, and a tighter class is a different buy. Count the pins against the range printed on the box. Empty slots are missing sizes, not a tidy cabinet. A gage block set and an indicator in the same lot are extra tools, not extra pins. Do not size this group as if it were a measuring machine. The pin either fits the hole or it does not, within the class printed on the set.
Pins, Blocks and Indicators
A pin gage enters a hole. A gage block stacks a known length for a reference or a setup. An indicator reads movement, runout or a comparison against that stack. They share a toolroom bench and they do not share a job. Mitutoyo appears across this hand-tool mix. Meyer Gage Company appears on pin sets. A granite plate, if it is in the lot, is a surface to set the blocks on, not a gage by itself. Buying the cabinet because it looks full, without counting pins or reading the class, is how a partial set gets priced as a complete one. Open the case and count them.
Gages & Measuring Instruments Specs to Compare
| Spec | Why it matters |
|---|---|
| Size range | The holes you check have to fall inside the range or the set does not apply. |
| Tolerance class | The class is the accuracy you are buying, not only the nominal size. |
| Completeness | Missing pins are missing sizes. A pretty case can still be a partial set. |
| Format | A library of pins and a pair of handled gages are different tools. |
| Gage blocks | Blocks stack a length. They do not enter a hole the way a pin does. |
| Indicator | An indicator reads variation. It is not a substitute for the pin that fits the hole. |
Size range
The holes you check have to fall inside the range or the set does not apply.
Tolerance class
The class is the accuracy you are buying, not only the nominal size.
Completeness
Missing pins are missing sizes. A pretty case can still be a partial set.
Format
A library of pins and a pair of handled gages are different tools.
Gage blocks
Blocks stack a length. They do not enter a hole the way a pin does.
Indicator
An indicator reads variation. It is not a substitute for the pin that fits the hole.
What to Inspect on Used Gages & Measuring Instruments
Read the size range
The range marked on the box has to cover your holes. Note inch or metric.
Read class and direction
Plus, minus or bilateral, and the class, change what a given pin means.
Count the pins
Empty slots are missing sizes. Do not assume a closed case is complete.
Look for damage
Rust, a mushroomed end or a ding retires that pin even if the neighbors look new.
Separate blocks and indicators
A gage block set and an indicator are their own tools. List them apart from the pins.
Ask about a certificate
A current certificate is useful. A missing one means you will prove the set yourself.
Check the case
A broken hinge or loose pins in a bag means the set has not been stored as a set.
