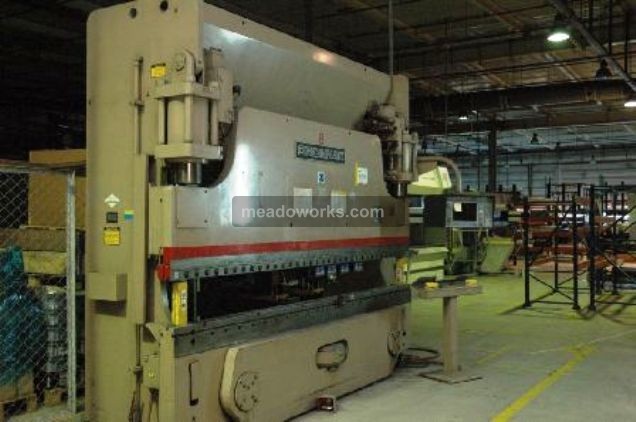

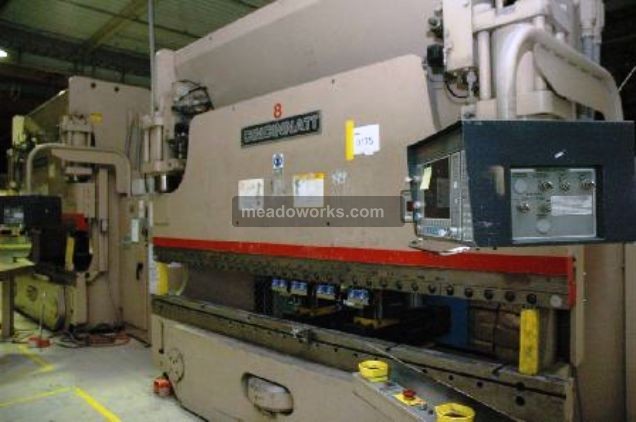

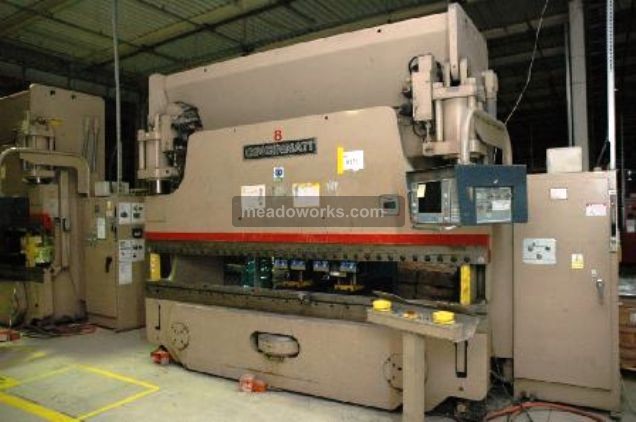

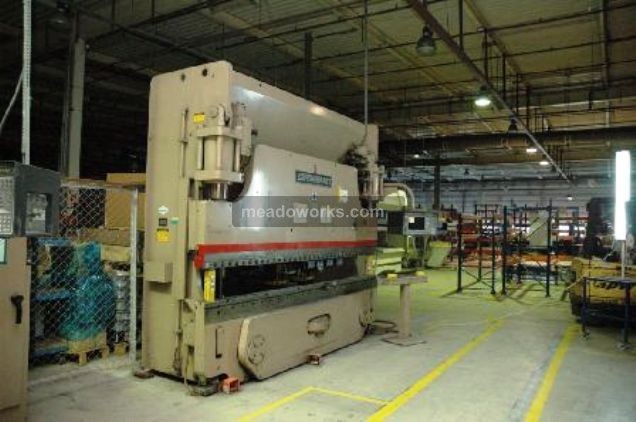

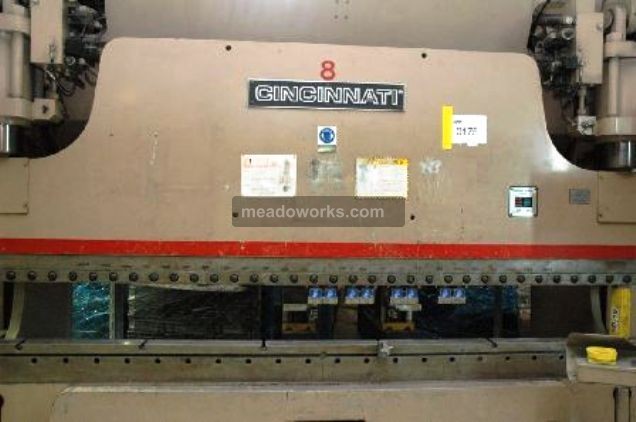

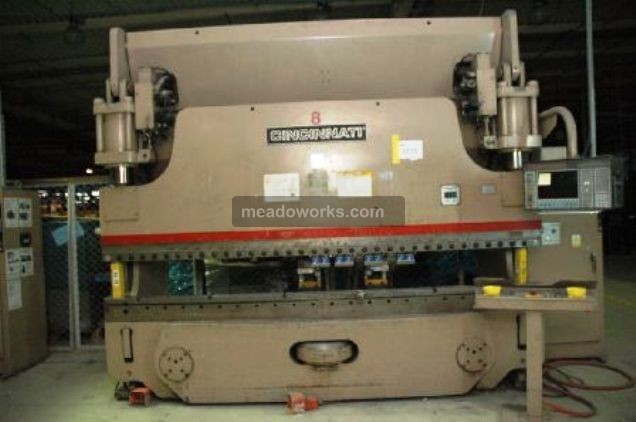

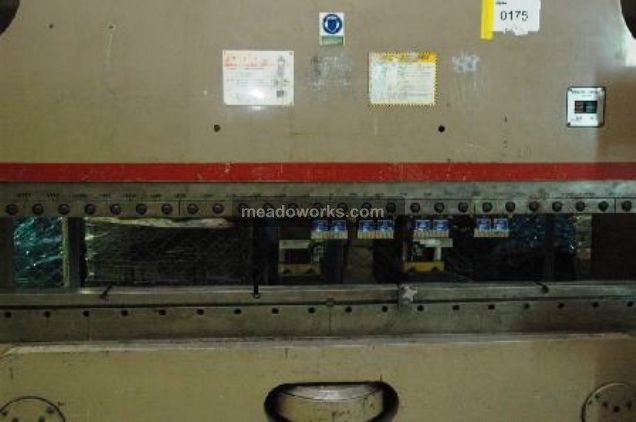

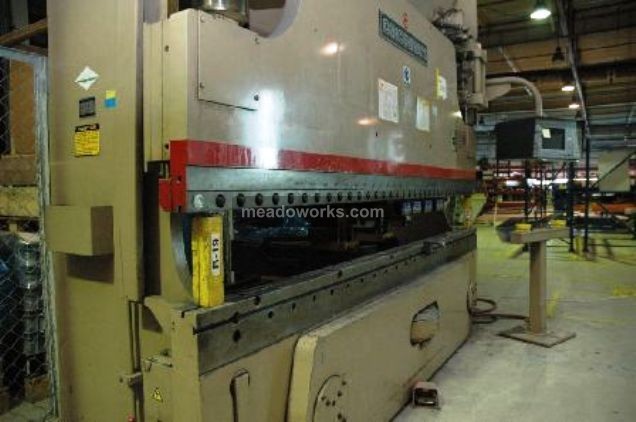

1996 Cincinnati 175AF10 CNC Hydraulic Brake
SOLD| Item Number | 1241 |
| Brand | Cincinnati |
| Model | 175AF10 CNC Hydraulic Brake |
| Year | 1996 |
| Location | USA |
| Tonnage | 175 |
| Length | 180 |
| Width | 72 |
| Height | 136 |
| Weight | 26000 |
Additional Specifications
Stroke (Adjustable): 10" (Maximum) Open Height: 17" Closed Height: 7" Throat Depth: 8" Speeds: 260 IPM - High Approach 1 to 65 IPM (Variable) - Press 1 to 290 IPM (Variable) - Return 49 IPM - Max. Speed @ Full Tonnage Bed and Ram Machined for Removable Angle Brackets Full Length Dovetail Slots Across Bed Face Front & Rear Equipped With: Cincinnati Autoform 8-Axis CNC Control w/Color CRT Display Monitor (24") 6-Axis CNC Back Gauge Autocrown for Bed Deflection Compensation Hydraulic Sectional Ram Clamps Lower Die Rail 25 HP AC Main Drive (Pump) Motor Electrical Controls Dual Palm Buttons or Electric Foot Switch Operation BENDING CAPACITIES (MILD STEEL): 10' x 1/4"8' x 3/8"
Why This Machine
This Cincinnati 175AF10 CNC Hydraulic Brake is ready for production sheet metal fabrication. Cincinnati equipment is known for build quality and strong resale values in the used market. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
Stroke (Adjustable): 10" (Maximum) Open Height: 17" Closed Height: 7" Throat Depth: 8" Speeds: 260 IPM - High Approach 1 to 65 IPM (Variable) - Press 1 to 290 IPM (Variable) - Return 49 IPM - Max. Speed @ Full Tonnage Bed and Ram Machined for Removable Angle Brackets Full Length Dovetail Slots Across Bed Face Front & Rear Equipped With: Cincinnati Autoform 8-Axis CNC Control w/Color CRT Display Monitor (24") 6-Axis CNC Back Gauge Autocrown for Bed Deflection Compensation Hydraulic Sectional Ram Clamps Lower Die Rail 25 HP AC Main Drive (Pump) Motor Electrical Controls Dual Palm Buttons or Electric Foot Switch Operation BENDING CAPACITIES (MILD STEEL): 10' x 1/4"8' x 3/8"
Common Applications
- • Sheet metal fabrication
- • Structural steel cutting
- • HVAC ductwork
- • Architectural metalwork
- • Industrial enclosures
