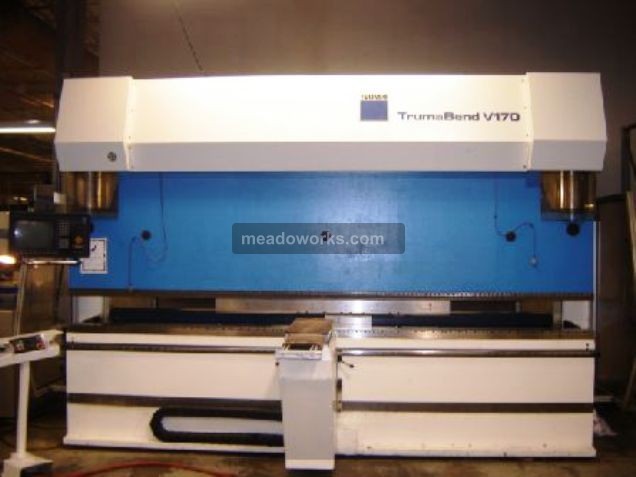

1997 Trumpf TRUMABEND V170 CNC Hydraulic Press Brake
SOLD| Item Number | 1244 |
| Brand | Trumpf |
| Model | TRUMABEND V170 CNC Hydraulic Press Brake |
| Year | 1997 |
| Location | USA |
| Tonnage | 187 |

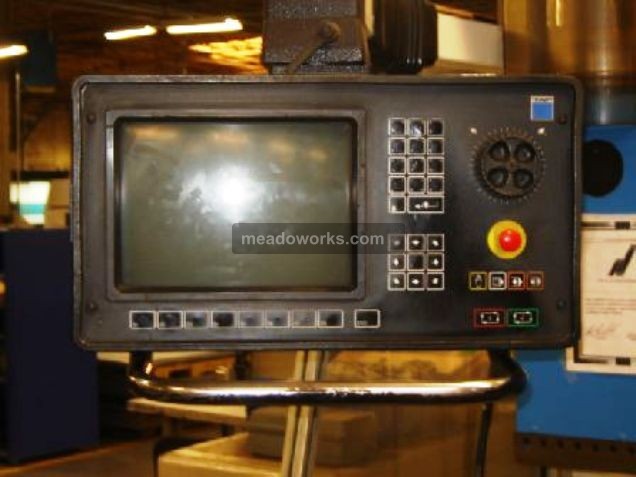

| Control | Delem DA-65 8-Axis Graphic CNC Control |
| Length | 185 |
| Width | 90 |
| Height | 115 |
| Weight | 33000 |
Additional Specifications

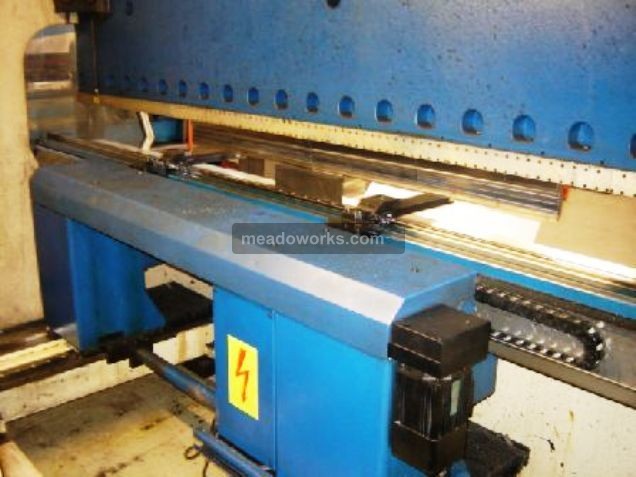

Distance Between Housings: 12'1" Distance Floor to Bed: 41" Stroke (Adjustable): 14.4" Max. Open Height: 21.6" Throat: 16" Speeds: 472 IPM - Advance 2 - 24 IPM - Pressing 320 IPM - Return Flush Floor Design Equipped With: 4-Axis CNC Back Gauge (23.6" Reach) Programmable 2-Position Lower Die Holder Ram Power Die Clamps Hydraulic Lower Die Clamping CNC Programmable Crowning CNC Programmable Die Shift Servo Bend Assist (for Large Panel) 30 HP Main (Pump) Motor Electrical Controls Electric Foot Switch or Dual Palm Buttons Operation BENDING CAPACITY
Why This Machine
This Trumpf TRUMABEND V170 CNC Hydraulic Press Brake is ready for production sheet metal fabrication. Trumpf equipment is known for build quality and strong resale values in the used market. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
Distance Between Housings: 12'1" Distance Floor to Bed: 41" Stroke (Adjustable): 14.4" Max. Open Height: 21.6" Throat: 16" Speeds: 472 IPM - Advance 2 - 24 IPM - Pressing 320 IPM - Return Flush Floor Design Equipped With: 4-Axis CNC Back Gauge (23.6" Reach) Programmable 2-Position Lower Die Holder Ram Power Die Clamps Hydraulic Lower Die Clamping CNC Programmable Crowning CNC Programmable Die Shift Servo Bend Assist (for Large Panel) 30 HP Main (Pump) Motor Electrical Controls Electric Foot Switch or Dual Palm Buttons Operation BENDING CAPACITY
Common Applications
- • Sheet metal fabrication
- • Structural steel cutting
- • HVAC ductwork
- • Architectural metalwork
- • Industrial enclosures
