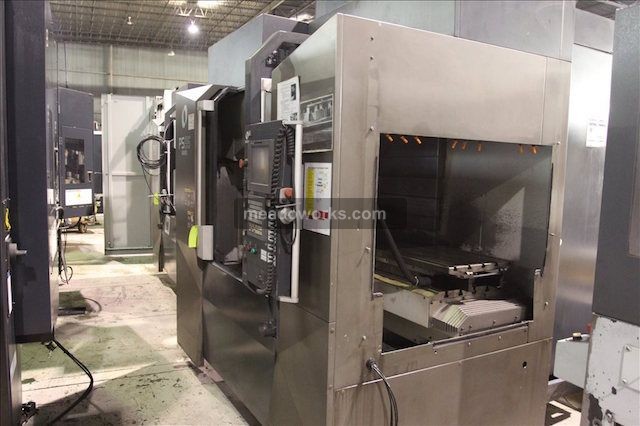

2012 Makino PS95
SOLD| Item Number | 4677 |
| Brand | Makino |
| Model | PS95 |
| Year | 2012 |
| Location | USA |
Additional Specifications
X-Axis Travel: 36.2" Y-Axis Travel: 20" Z-Axis Travel: 18.1" Table Size: 46" x 20" Table Capacity: 1,763 lbs. Spindle Taper: CAT 40 Spindle Speeds: 50 - 14,000 RPM Spindle Speed Ranges: 2 Electronic Spindle Motor (30 min. / Continuous): 33.5 HP / 24.2 HP Spindle Nose to Table: 5.9" - 24" Tool Change Time, Tool-to-Tool: 1.2 seconds Tool Change Time, Chip-to-Chip: 3.8 seconds Max. Tool Length: 11.8" Max. Tool Diameter, Adjacent Pockets Full: 3" Max. Tool Diameter, Adjacent Pockets Empty: 4.92" Max. Tool Weight: 17.6 lbs Cutting Feed Rate: 1,181 IPM Rapid Feed Rate, X&Y Axes: 1,417 IPM Rapid Feed Rate, Z-Axis: 1,181 IPM EQUIPPED WITH: Midaco Automatic Pallet Changer 60-Tool Automatic Tool Changer AC Absolute Digital Servo Motors Axis Drives Meehanite Cast Iron Bed Construction Risers Linear Guides
Why This Machine
This 2012 Makino PS95 is a proven, production-ready machine at a fraction of new equipment cost. Makino is one of the most recognized names in CNC machining. This PS95 offers proven reliability backed by strong parts availability and service support networks. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
X-Axis Travel: 36.2" Y-Axis Travel: 20" Z-Axis Travel: 18.1" Table Size: 46" x 20" Table Capacity: 1,763 lbs. Spindle Taper: CAT 40 Spindle Speeds: 50 - 14,000 RPM Spindle Speed Ranges: 2 Electronic Spindle Motor (30 min. / Continuous): 33.5 HP / 24.2 HP Spindle Nose to Table: 5.9" - 24" Tool Change Time, Tool-to-Tool: 1.2 seconds Tool Change Time, Chip-to-Chip: 3.8 seconds Max. Tool Length: 11.8" Max. Tool Diameter, Adjacent Pockets Full: 3" Max. Tool Diameter, Adjacent Pockets Empty: 4.92" Max. Tool Weight: 17.6 lbs Cutting Feed Rate: 1,181 IPM Rapid Feed Rate, X&Y Axes: 1,417 IPM Rapid Feed Rate, Z-Axis: 1,181 IPM EQUIPPED WITH: Midaco Automatic Pallet Changer 60-Tool Automatic Tool Changer AC Absolute Digital Servo Motors Axis Drives Meehanite Cast Iron Bed Construction Risers Linear Guides
Common Applications
- • Aerospace components
- • Mold & die making
- • Medical implants & instruments
- • Automotive precision parts
- • Job shop production
