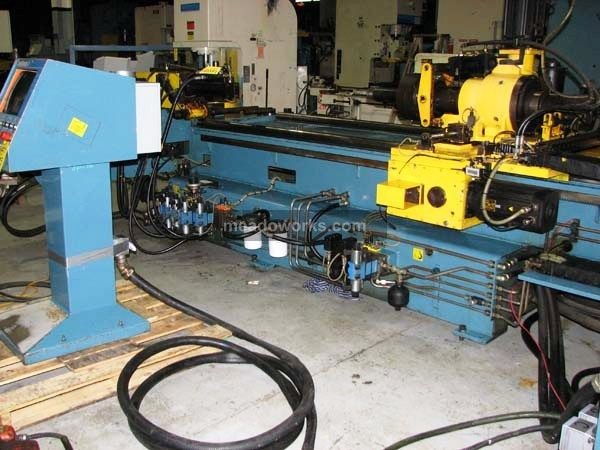

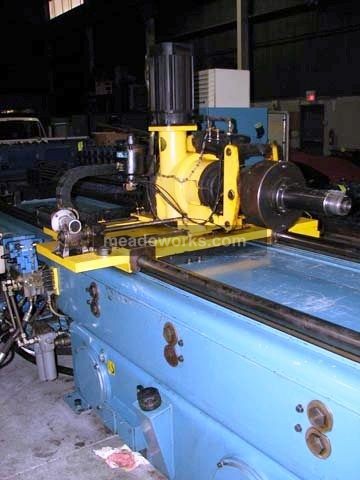

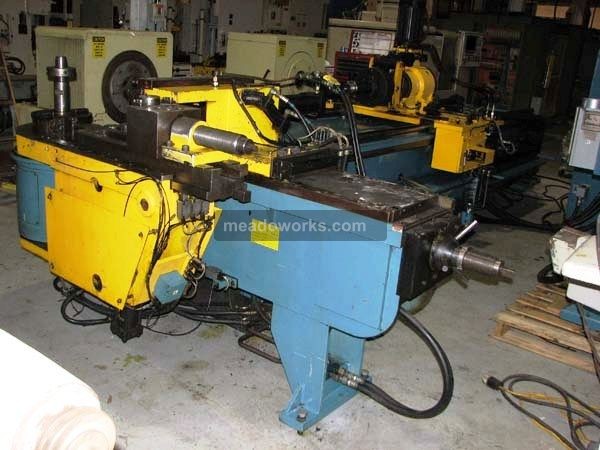

1999 Addison DB120 CNC Hydraulic Tube Bender
SOLD| Item Number | 1235 |
| Brand | Addison |
| Model | DB120 CNC Hydraulic Tube Bender |
| Year | 1999 |
| Location | USA |
| Capacity | : 4-1/2" O.D. x .335" Wall |
| Arm Swing | 193 degrees |
| Vert Or Horiz Clamp | Horizontal |

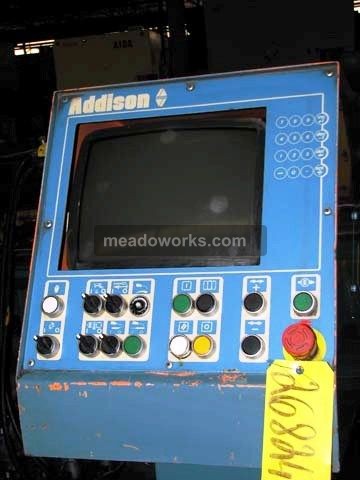

| Control | Addison 4-Axis CNC Control |
| Length | 230 |
| Width | 105 |
| Height | 80 |
| Weight | 17000 |
Additional Specifications
Centerline Radius: 23.6" (Maximum) 2.0" (Minimum) Maximum Tube Length into the Collet: 157.5" (External) 137.8" (Internal) Length of Tube into the Collet Before Last Bend: 14.76" (External) 3.94" (Internal) Degree of Bend (C-Axis): 0 - 193 (Maximum) Plane of Bend (B-Axis): 0 - 360 Degrees Tube Working Height: 47-1/4" Tube Height from Tooling Platform: 3-3/4" Follower Slide Stroke: 29.78" Clamp Slide Stroke (Direct Acting): 9" Horizontal Shift (X-Axis): 23.62" (Max.) Axis Speed: Y (Feed): 1575 IPM B (Rotate): 20 RPM C (Bend): 3.5 RPM X (Radius): 393.7 IPM Equipped With: Motorized Carriage for Plane of Bend & Distance Between Bends Direct Acting Pressure Die Air Electric Oil Chiller Electrical Control (Separate, Free-Standing Panel) Operator's Podium Assorted Collets (I.D. & O.D.)
Why This Machine
This Addison DB120 CNC Hydraulic Tube Bender is ready for production sheet metal fabrication. Addison equipment is known for build quality and strong resale values in the used market. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
Centerline Radius: 23.6" (Maximum) 2.0" (Minimum) Maximum Tube Length into the Collet: 157.5" (External) 137.8" (Internal) Length of Tube into the Collet Before Last Bend: 14.76" (External) 3.94" (Internal) Degree of Bend (C-Axis): 0 - 193 (Maximum) Plane of Bend (B-Axis): 0 - 360 Degrees Tube Working Height: 47-1/4" Tube Height from Tooling Platform: 3-3/4" Follower Slide Stroke: 29.78" Clamp Slide Stroke (Direct Acting): 9" Horizontal Shift (X-Axis): 23.62" (Max.) Axis Speed: Y (Feed): 1575 IPM B (Rotate): 20 RPM C (Bend): 3.5 RPM X (Radius): 393.7 IPM Equipped With: Motorized Carriage for Plane of Bend & Distance Between Bends Direct Acting Pressure Die Air Electric Oil Chiller Electrical Control (Separate, Free-Standing Panel) Operator's Podium Assorted Collets (I.D. & O.D.)
Common Applications
- • Sheet metal fabrication
- • Structural steel cutting
- • HVAC ductwork
- • Architectural metalwork
- • Industrial enclosures
