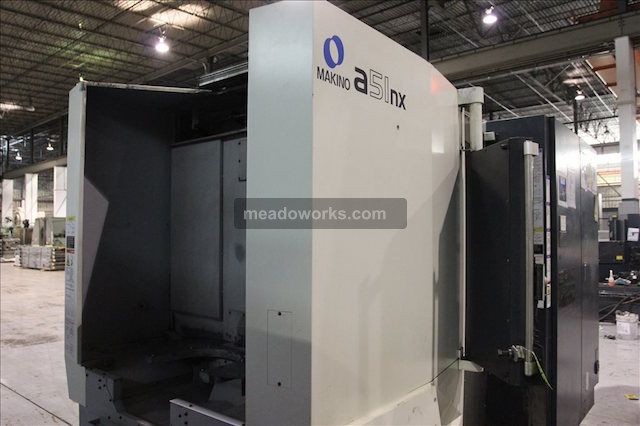

2012 Makino A51NX 4-Axis
SOLD| Item Number | 4654 |
| Brand | Makino |
| Model | A51NX 4-Axis |
| Year | 2012 |
| Location | USA |
| X Travel | 22 in |
| Y Travel | 25 in |
| Z Travel | 25 in |

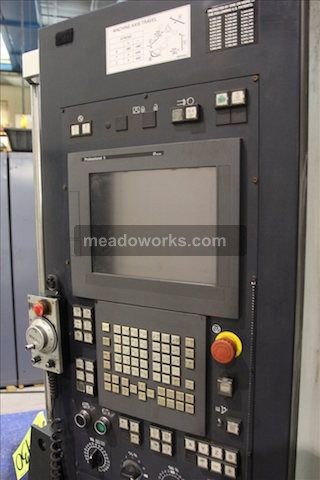

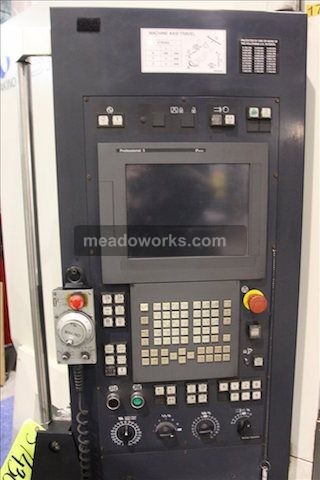

| Control | Makino Professional 5 CNC Control |
Additional Specifications

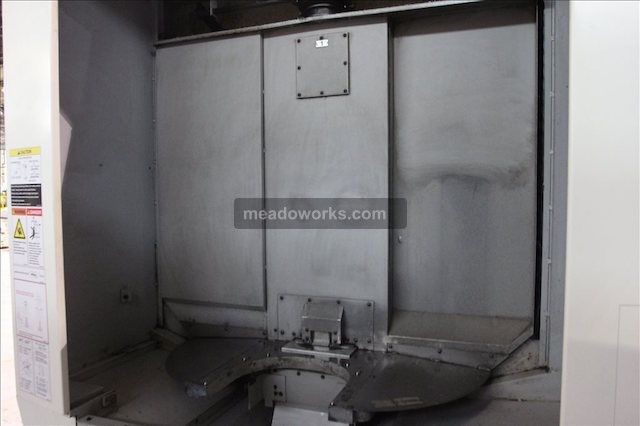

Pallet Size: 15.7" x 15.7" Max. Payload: 880 lbs. Max. Workpiece Size: 24.8" x 35.4" Spindle Speed: 12,000 RPM Spindle Taper: CAT 40 Tool Change Time Tool to Tool: 0.9 seconds Tool Change Time, Chip to Chip: 2.3 seconds Max. Tool Length: 11.8" Max. Tool Diameter: 5.5" Max. Tool Weight: 17.6 lbs. Cutting Feedrate: 1,574 IPM Rapid Traverse (X, Y, Z): 1969 IPM EQUIPPED WITH: Makino Professional 5 CNC Control 218-ATC Extension 1° B-Axis Indexing Table Three Point Support Splash and Chip Shield Lift-up Chip Conveyor and Tank Center Trough w/ Base Coolant Wash Spindle Temperature Controller Overhead Shower Coolant System Fluorescent Work Light
Why This Machine
This 2012 Makino A51NX 4-Axis is a proven, production-ready machine at a fraction of new equipment cost. Makino is one of the most recognized names in CNC machining. This A51NX 4-Axis offers proven reliability backed by strong parts availability and service support networks. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
Pallet Size: 15.7" x 15.7" Max. Payload: 880 lbs. Max. Workpiece Size: 24.8" x 35.4" Spindle Speed: 12,000 RPM Spindle Taper: CAT 40 Tool Change Time Tool to Tool: 0.9 seconds Tool Change Time, Chip to Chip: 2.3 seconds Max. Tool Length: 11.8" Max. Tool Diameter: 5.5" Max. Tool Weight: 17.6 lbs. Cutting Feedrate: 1,574 IPM Rapid Traverse (X, Y, Z): 1969 IPM EQUIPPED WITH: Makino Professional 5 CNC Control 218-ATC Extension 1° B-Axis Indexing Table Three Point Support Splash and Chip Shield Lift-up Chip Conveyor and Tank Center Trough w/ Base Coolant Wash Spindle Temperature Controller Overhead Shower Coolant System Fluorescent Work Light
Common Applications
- • Aerospace components
- • Mold & die making
- • Medical implants & instruments
- • Automotive precision parts
- • Job shop production
