This machine has been sold. Looking for a similar Makino Machining Centers, Horizontal? Tell us what you need and we'll find it.

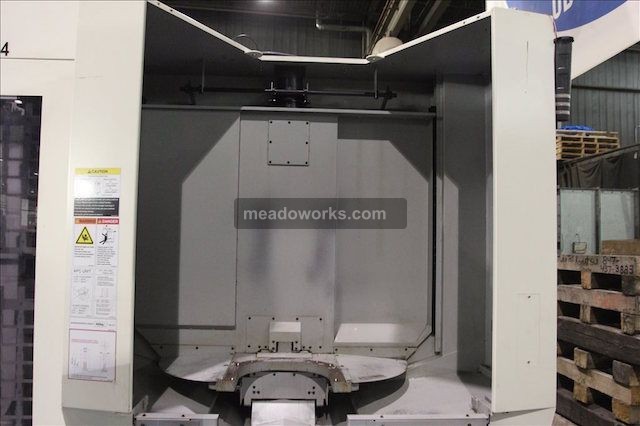

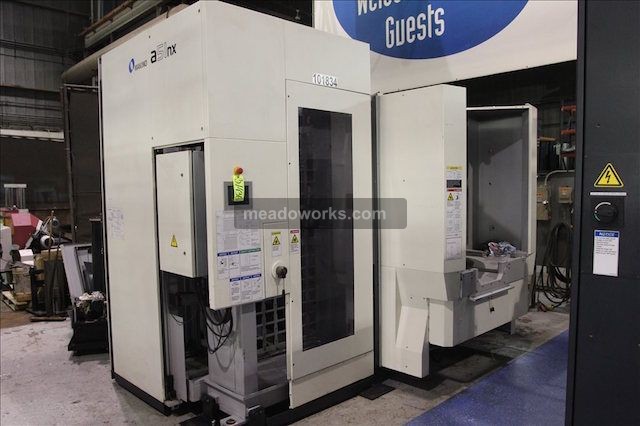

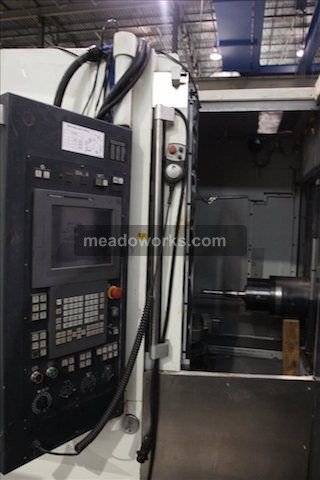

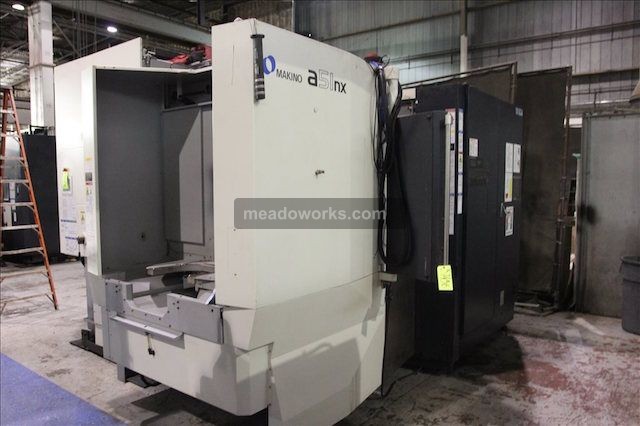

2015 Makino A51NX 4-Axis
SOLD| Item Number | 4656 |
| Brand | Makino |
| Model | A51NX 4-Axis |
| Year | 2015 |
| Location | USA |
Additional Specifications

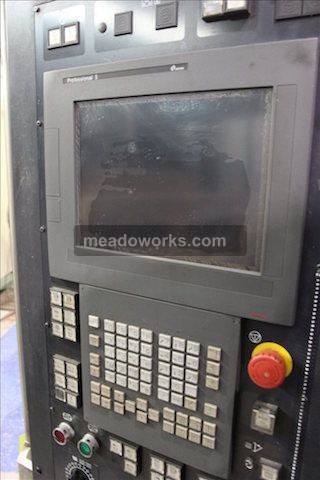

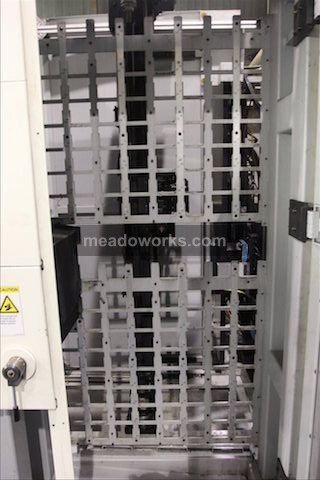

X-Axis Travel: 22" Y-Axis Travel: 25.2" Z-Axis Travel: 25.2" Pallet Size: 15.7" x 15.7" Max. Payload: 880 lbs. Max. Workpiece Size: 24.8" x 35.4" Spindle Speed: 14,000 RPM Spindle Taper (CAT / HSK): 40 Tool Change Time Tool to Tool: 0.9 seconds Tool Change Time, Chip to Chip: 2.2 seconds Max. Tool Length (CAT / HSK): (16.9" / 16.5") Max. Tool Diameter: 6.7" Max. Tool Weight: 26.4 lbs. Cutting Feedrate: 1,968 IPM Rapid Traverse (X, Y, Z): 2,362 IPM EQUIPPED WITH: Full 4th Axis Makino Professional 5 Control 133-ATC Extension Three Point Support Splash and Chip Shield Lift-up Chip Conveyor and Tank Center Trough w/ Base Coolant Wash Spindle Temperature Controller Overhead Shower Coolant System Fluorescent Work Light
Why This Machine
This 2015 Makino A51NX 4-Axis is a proven, production-ready machine at a fraction of new equipment cost. Makino is one of the most recognized names in CNC machining. This A51NX 4-Axis offers proven reliability backed by strong parts availability and service support networks. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
X-Axis Travel: 22" Y-Axis Travel: 25.2" Z-Axis Travel: 25.2" Pallet Size: 15.7" x 15.7" Max. Payload: 880 lbs. Max. Workpiece Size: 24.8" x 35.4" Spindle Speed: 14,000 RPM Spindle Taper (CAT / HSK): 40 Tool Change Time Tool to Tool: 0.9 seconds Tool Change Time, Chip to Chip: 2.2 seconds Max. Tool Length (CAT / HSK): (16.9" / 16.5") Max. Tool Diameter: 6.7" Max. Tool Weight: 26.4 lbs. Cutting Feedrate: 1,968 IPM Rapid Traverse (X, Y, Z): 2,362 IPM EQUIPPED WITH: Full 4th Axis Makino Professional 5 Control 133-ATC Extension Three Point Support Splash and Chip Shield Lift-up Chip Conveyor and Tank Center Trough w/ Base Coolant Wash Spindle Temperature Controller Overhead Shower Coolant System Fluorescent Work Light
Common Applications
- • Aerospace components
- • Mold & die making
- • Medical implants & instruments
- • Automotive precision parts
- • Job shop production
