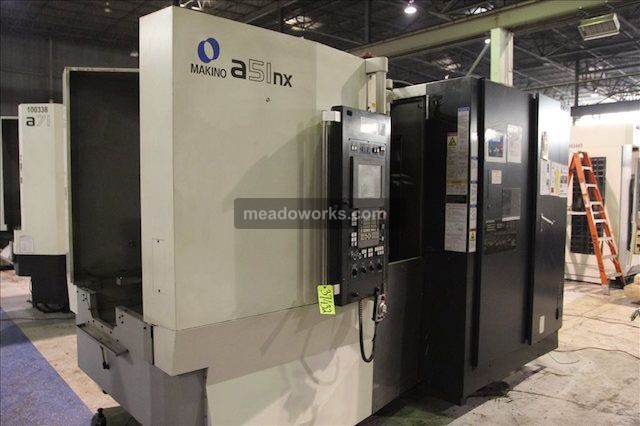

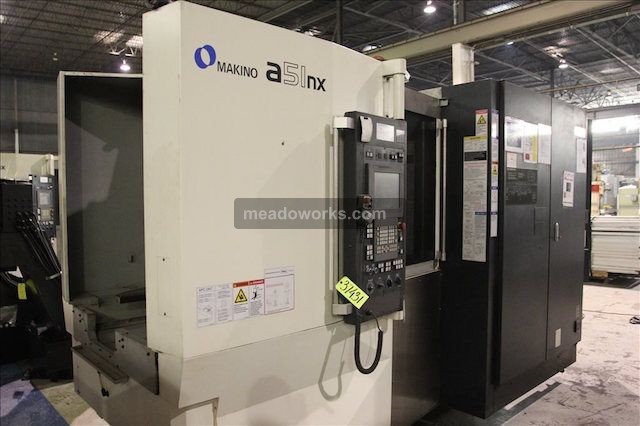

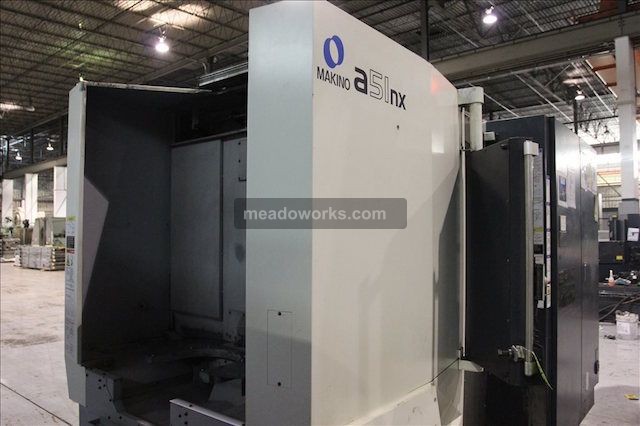

Makino A51NX 4-Axis HMC MMC System
SOLD| Item Number | 4680 |
| Brand | Makino |
| Model | A51NX 4-Axis HMC MMC System |
| Location | USA |
Additional Specifications

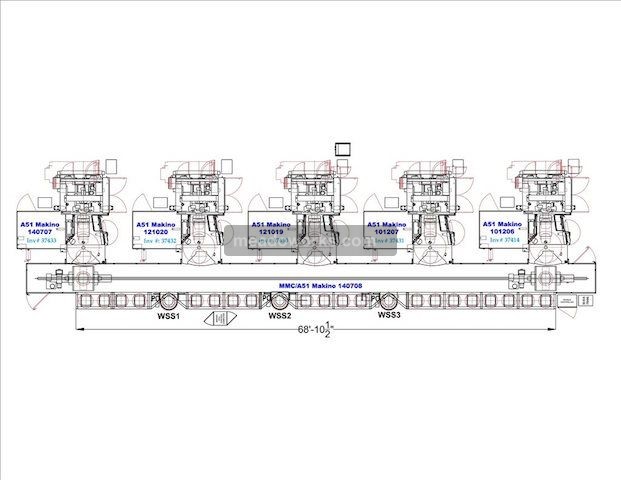

(5) MAKINO A51NX HMC MMC SYSTEM W/ (40) PALLET STORAGE, (3) WORK SETUP STATIONS, (2) ROBOT VEHICLES a51nx Specifications X-Axis Travel: 22" Y-Axis Travel: 25.2" Z-Axis Travel: 25.2" Pallet Size: 15.7" x 15.7" Max. Payload: 880 lbs. Max. Workpiece Size: 24.8" x 35.4" Spindle Speed: 14,000 RPM Spindle Taper (CAT / HSK): 40 Tool Change Time Tool to Tool: 0.9 seconds Tool Change Time, Chip to Chip: 2.2 seconds Max. Tool Length (CAT / HSK): (16.9" / 16.5") Max. Tool Diameter: 6.7" Max. Tool Weight: 26.4 lbs. Cutting Feedrate: 1,968 IPM Rapid Traverse (X, Y, Z): 2,362 IPM EQUIPPED WITH: a51nx MMC System MAS-A5 Cell Control Software Pallet Capacity: (40) 15.7" Pallets (20 across, 2 high) (3) Work Setup Stations (2) Robot Vehicles a51nx HMCs Makino Professional 5 Control 218-ATC Extension B-Axis - Direct Drive NC Rotary Table Three Point Support Splash and Chip Shield Lift-up Chip Conveyor and Tank Center Trough w/ Base Coolant Wash Spindle Temperature Controller Overhead Shower Coolant System Fluorescent Work Light
Why This Machine
Makino is one of the most recognized names in CNC machining. This A51NX 4-Axis HMC MMC System offers proven reliability backed by strong parts availability and service support networks. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
(5) MAKINO A51NX HMC MMC SYSTEM W/ (40) PALLET STORAGE, (3) WORK SETUP STATIONS, (2) ROBOT VEHICLES a51nx Specifications X-Axis Travel: 22" Y-Axis Travel: 25.2" Z-Axis Travel: 25.2" Pallet Size: 15.7" x 15.7" Max. Payload: 880 lbs. Max. Workpiece Size: 24.8" x 35.4" Spindle Speed: 14,000 RPM Spindle Taper (CAT / HSK): 40 Tool Change Time Tool to Tool: 0.9 seconds Tool Change Time, Chip to Chip: 2.2 seconds Max. Tool Length (CAT / HSK): (16.9" / 16.5") Max. Tool Diameter: 6.7" Max. Tool Weight: 26.4 lbs. Cutting Feedrate: 1,968 IPM Rapid Traverse (X, Y, Z): 2,362 IPM EQUIPPED WITH: a51nx MMC System MAS-A5 Cell Control Software Pallet Capacity: (40) 15.7" Pallets (20 across, 2 high) (3) Work Setup Stations (2) Robot Vehicles a51nx HMCs Makino Professional 5 Control 218-ATC Extension B-Axis - Direct Drive NC Rotary Table Three Point Support Splash and Chip Shield Lift-up Chip Conveyor and Tank Center Trough w/ Base Coolant Wash Spindle Temperature Controller Overhead Shower Coolant System Fluorescent Work Light
Common Applications
- • Aerospace components
- • Mold & die making
- • Medical implants & instruments
- • Automotive precision parts
- • Job shop production
