This machine has been sold. Looking for a similar Makino Machining Centers, Horizontal? Tell us what you need and we'll find it.

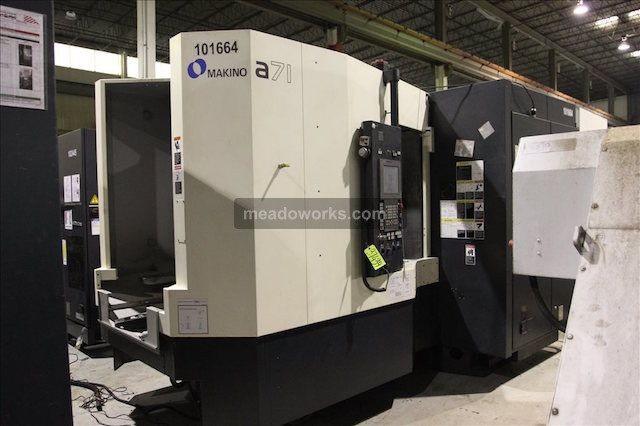

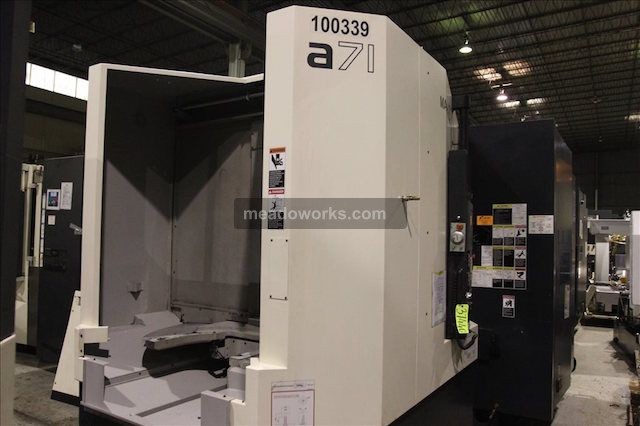

Makino A71NX 4-Axis HMC MMC System
SOLD| Item Number | 4687 |
| Brand | Makino |
| Model | A71NX 4-Axis HMC MMC System |
| Location | USA |
Additional Specifications

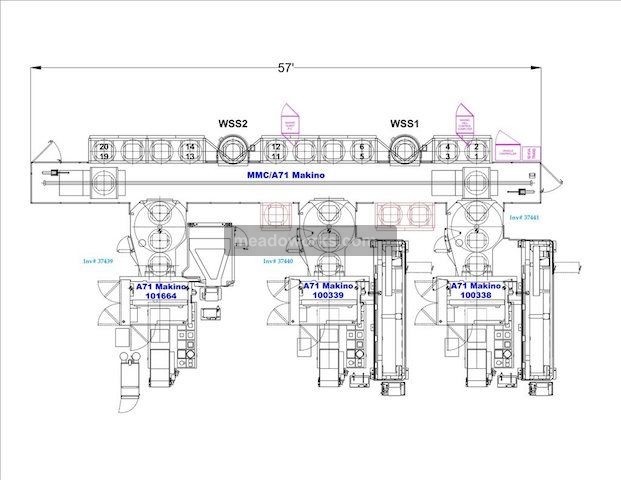

(3) MAKINO A71 4-AXIS HMC MMC SYSTEM W/ (20) PALLET STORAGE, (2) WORK SETUP STATIONS, (2) ROBOT VEHICLES a71nx Specifications Qty. (3) a71 Machines, New in 2015/2012 Pallet Size: 19.7" x 19.7" X-Axis Travel: 28.7" Y-Axis Travel: 28.7" Z-Axis Travel: 31.5" Max. Payload: 1,540 lbs. Max. Workpiece Size: 31.5" x 39.4" Spindle Speed: 10,000 RPM Spindle Taper: 50 Tool Change Time Tool to Tool: 1.7 seconds Tool Change Time, Chip to Chip: 3.2 seconds Max. Tool Length: 17.7" Max. Tool Diameter (w/ adjacent pockets empty): 11.8" Max. Tool Weight: 44 lbs. Cutting Feedrate: 1969 IPM Rapid Traverse (X, Y, Z): 1969 IPM EQUIPPED WITH: a71 MMC System MAS-A5 Cell Control Software (20) 19.7" Pallets (10 across, 2 high) (2) Work Setup Stations (2) Robot Vehicles a71 HMCs Makino Professional CNC Control B-Axis Gear-Driven NC Rotary Table 188-ATC Extension
Why This Machine
Makino is one of the most recognized names in CNC machining. This A71NX 4-Axis HMC MMC System offers proven reliability backed by strong parts availability and service support networks. Meadoworks provides detailed inspection reports, financing options, and worldwide shipping for all equipment in our inventory.
Description
(3) MAKINO A71 4-AXIS HMC MMC SYSTEM W/ (20) PALLET STORAGE, (2) WORK SETUP STATIONS, (2) ROBOT VEHICLES a71nx Specifications Qty. (3) a71 Machines, New in 2015/2012 Pallet Size: 19.7" x 19.7" X-Axis Travel: 28.7" Y-Axis Travel: 28.7" Z-Axis Travel: 31.5" Max. Payload: 1,540 lbs. Max. Workpiece Size: 31.5" x 39.4" Spindle Speed: 10,000 RPM Spindle Taper: 50 Tool Change Time Tool to Tool: 1.7 seconds Tool Change Time, Chip to Chip: 3.2 seconds Max. Tool Length: 17.7" Max. Tool Diameter (w/ adjacent pockets empty): 11.8" Max. Tool Weight: 44 lbs. Cutting Feedrate: 1969 IPM Rapid Traverse (X, Y, Z): 1969 IPM EQUIPPED WITH: a71 MMC System MAS-A5 Cell Control Software (20) 19.7" Pallets (10 across, 2 high) (2) Work Setup Stations (2) Robot Vehicles a71 HMCs Makino Professional CNC Control B-Axis Gear-Driven NC Rotary Table 188-ATC Extension
Common Applications
- • Aerospace components
- • Mold & die making
- • Medical implants & instruments
- • Automotive precision parts
- • Job shop production
